| Prod Model: |
LG-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Helper Handle: |
No |
| Usage: |
Frying |
| Style: |
Common |
| Material: |
Stainless Steel |
| Certification: |
ISO9001 |
Product Description

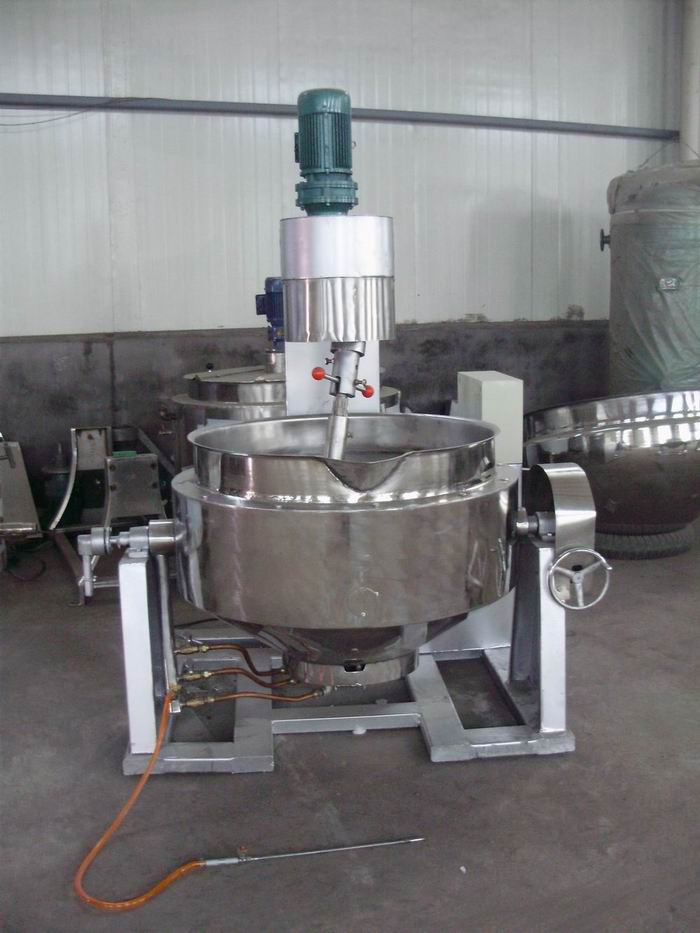

Steam Heating Jacketed Kettle With Mixer is composed of pot and tilting frame. Double layer. Middle layer can add steam to heat.
Steam Heating Jacketed Kettle With Agitator uses stainless steel SUS304, 1 Cr18Ni9Ti for production with steam heating and electric heating and gas heating( Heating medium: Heat transfer oil. Natural gas fire burner under the kettle. Burner is highly-efficient & energy saving. ) two kinds of heating type. The mechanical transmission makes the preparation, cooking and boiling enrichment products in high viscosity materials possible.
Structure of Jacketed Kettle
Steam Heating Jacketed Kettle With Agitator is mainly composed of pot and tilting frame; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.
Material:
A). Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
B). The whole machine is made of stainless steel ( SUS304/SUS316L)
Usage of Jacketed Kettle
Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Characteristics of Jacketed Kettle
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.
Technical parameters of Jacketed Kettle
|
model |
LG-100 |
LG-200 |
LG-300 |
LG-400 |
LG-500 |
LG-600 |
|
volume |
100L |
200L |
300L |
400L |
500L |
600L |
|
inner diameter |
700 |
800 |
900 |
1000 |
1100 |
1200 |
|
design pressure |
0.35MPA |
|
|
|
experiment pressure |
0.44MPA |
0.44MPA |
0.44MPA |
|
highest temperature |
147centigrade |
147 |
147 |
147 |
147 |
147 |
|
material |
sus304/Q235B |
|
|
|
|
|
