| Prod Model: |
LMB202A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dots: |
20*2 |
| Outline(mm): |
116.0*35.0*12.5max |
| Type: |
Character |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| Usage: |
Industrial Area |
Product Description
1. 20X2 Characters
2. Parallel interface
3. 3.3V & 5V power supply optional
4. STN-YG, STN-Gray with YG LED backlight optional
| Item | Description |

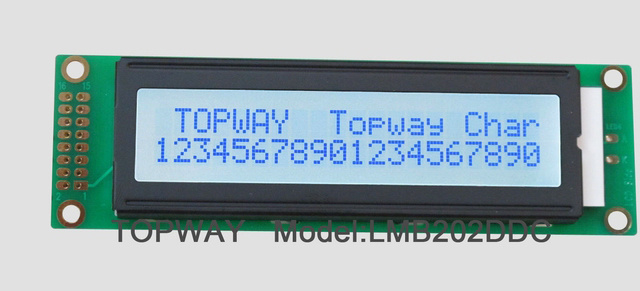

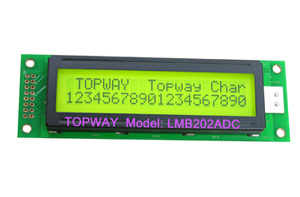

| Product Name | 20*2 Character LCD Module |
| Model No. | LMB202D |
| Dot Format | 20*2 |

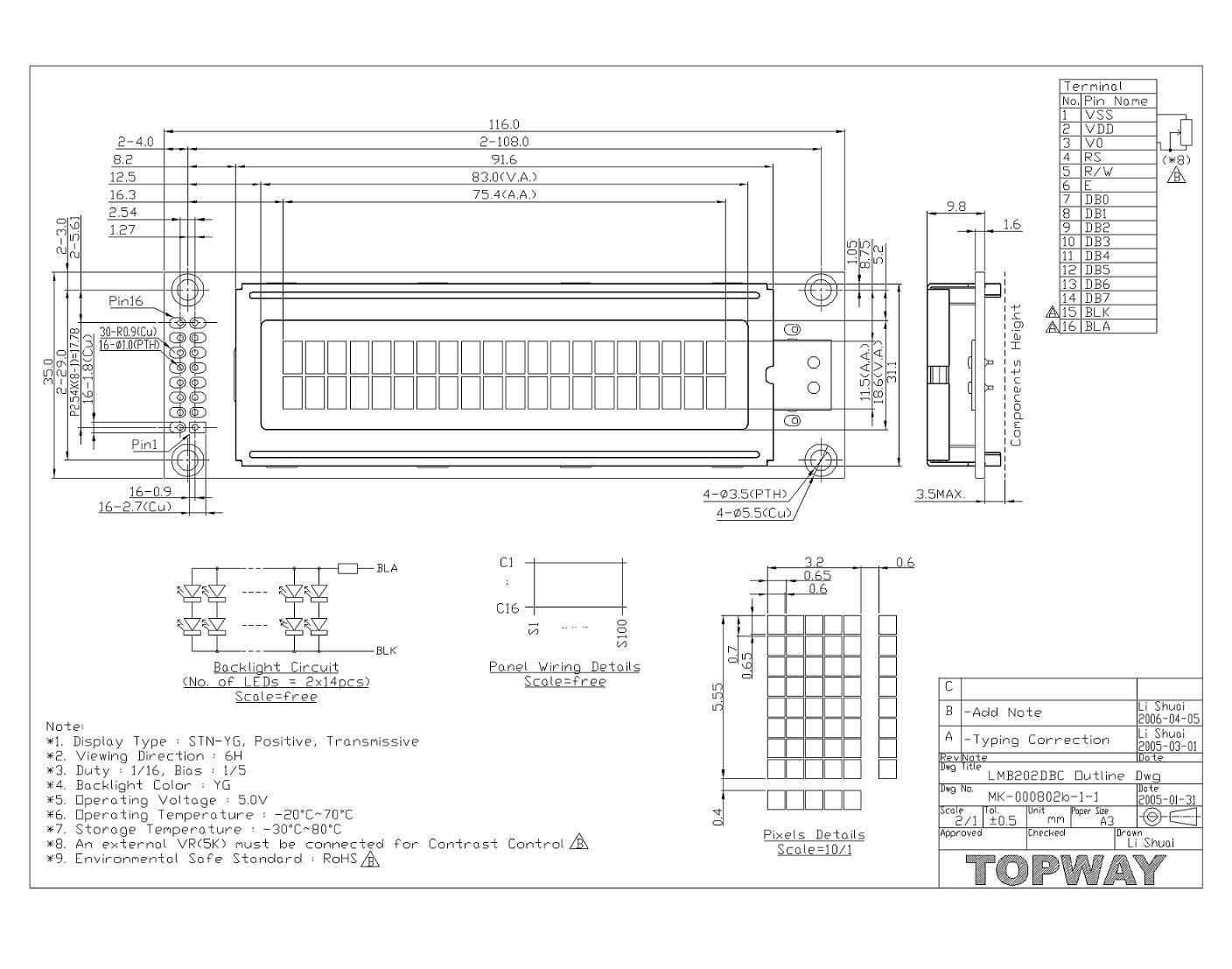

| Outline Dimension(mm) | 116.0*35.0*12.5MAX |
| Assem. Size(mm) | 108.0*29.0 |
| Viewing Area(mm) | 83.0*18.6 |
| Character Size( mm) | 3.20 x 5.55 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-Blue, STN-gray, STN-YG |
| Backlight | white or Y/G LED backlight |
| Driver IC | ST7066U |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
