| Prod Model: |
R108-5T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Woofer: |
5.25-Inches |
| Tweeter: |
1-Inch Mylar |
| Input Method: |
100V |
| Transformer Tapping: |
20W,10W,5W |
| Amplification Type: |
Active |
| Speaker Material: |
Plastic |
| Usage: |
TV |
| Structure: |
Floorstanding Speaker |
| SNR: |
<70dB |
| Adjusting Method: |
Transforma |
| Sound Channel: |
1 |
| Function: |
100V |
Product Description

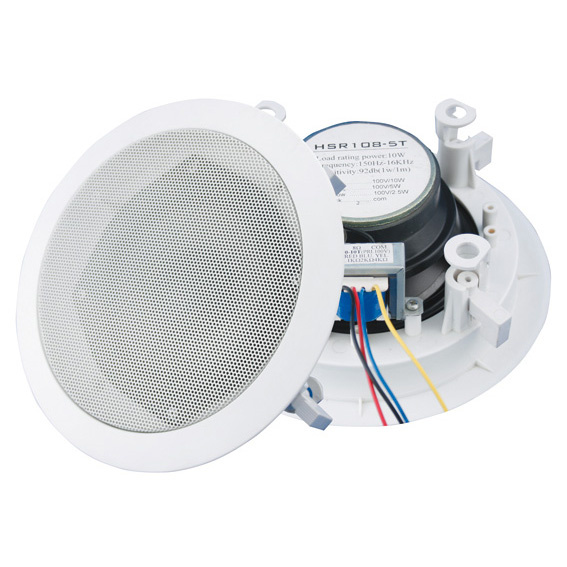

CE Certified R108-5T 5.25" 100V Coaxial 20w Ceiling Speaker
Description
This speaker has the most modern and easy fitting method, a quick fastening clasp. It sets new standards in security and easiness. Three or four screws to mount or dismount and lifting off the grille (with a screwdriver) is all that is necessary.
The installation frame is made of high-quality plastic, the grille of coated steel. The construction is burgle proof and impact resistant.
Please consider the following features:
Modern, discreet design with a rim height of approx. 4 mm. |
High-quality full range two-way coaxial speaker |
The speaker is available impregnated, with a specially prepared chassis and matching transformer. |
1. 2-way coaxial speaker.
2. Easy installation using high speed snap fastener.
| Specifications/Model Name | R108-5T | R108-6T | R108-8T |
| Woofer | 5.25-inches | 6.5-inches | 8-inches |
| Tweeter | 1-inch mylar | 1-inch mylar | 1-inch mylar |
| Frequency Respone(Hz) | 70-20K | 50-20K | 40-20K |
| SPL(dB@1W/M) | 88 | 90 | 92 |
| Power(W) | 20 | 30 | 40 |
| Input Method | 100V | 100V | 100V |
| Transformer Tappings(W) | 20 10 5 | 30 15 7.5 | 40 20 10 |
| Install Diameter(mm) | 166 | 202 | 240 |
| Total Diameter(mm) | 202 | 238 | 276 |
Install Depth(mm) | 78 | 86 | 93
|
