| Prod Model: |
PSM-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Two-Way, Class D Amplified Monitor: |
Power Handing: 55 W RMS |
| Woofer: 5",Tweeter: 1": |
Frequency Response: 50Hz~20kHz |
| Noise: >90dB: |
Hfs Adjust: -3 / 0 / 3 dB Selectable |
| Input: XLR / RCA / Trs Jack: |
Video Shielding: Yes |
| Power Supply: 90 240 V AC, 50/60 Hz, 1A: |
Dimension (Wxhxd): 185 X 315 X 235mm |
| Weight: 6.3 Kg: |
Overload Protection |
| Speaker Material: |
Wood |
| Amplification Type: |
Active |
| Usage: |
Computer |
Product Description

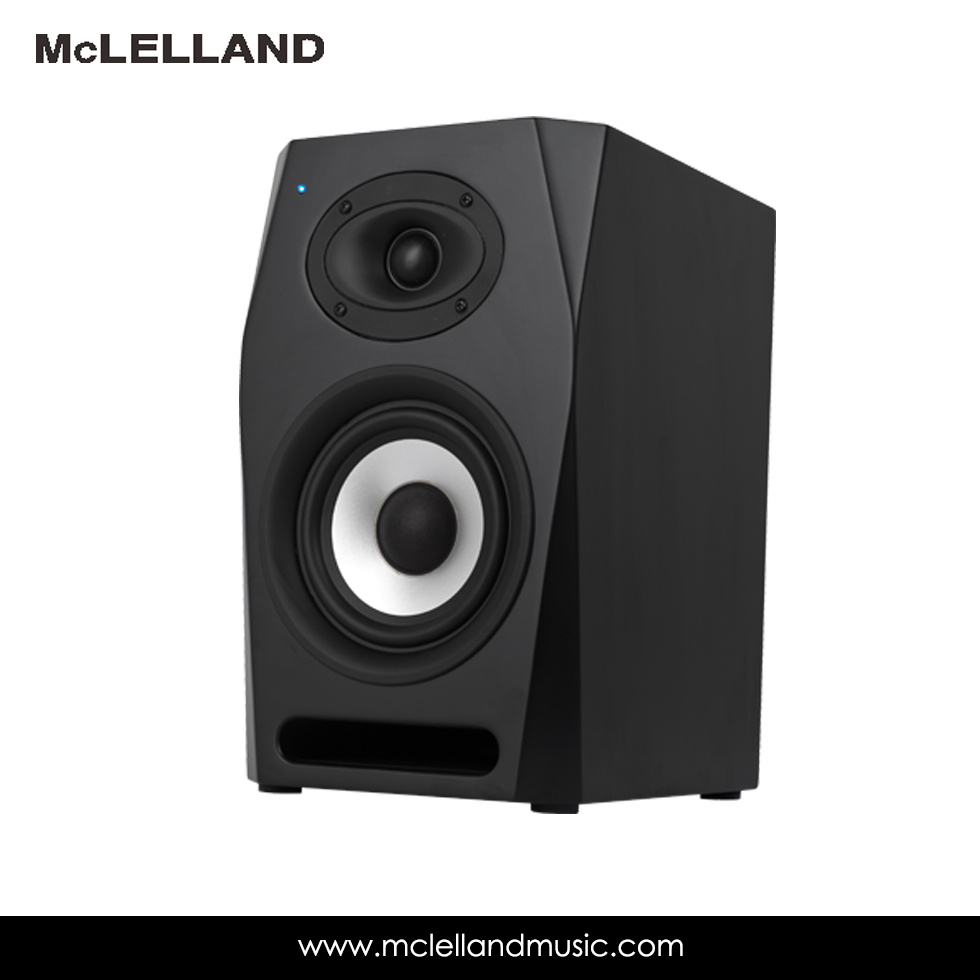

2-Way Active Reference Studio Monitor with 5inch(PSM-5)
The McLELLAND has released a high-resolution, active 2-way Class D amplified reference
PSM series studio monitor, which is extremely well suited for most recording musicians,
Engineers and producers. It come with our special custom-tuned premium cabinets and
Optimized speaker design, gives you greatest bass response, crystal clear highs and
Transparent sound. Professional features like video/ spker shielding, overload protection,
High frequency adjust controls, balanced/unbalanced inputs. It delivers great audio
Experiences from your music and home recording to post production.
Specification:
1. Type: Two-way, Class D amplified reference monitor
2. Power Handing: 55 W RMS
3. Woofer: 5"
4. Tweeter: 1"
5. Frequency Response: 50Hz~20KHz
6. Noise: >90dB
7. HFS Adjust: -3 / 0 / 3 dB Selectable
8. Input: XLR / RCA / TRS Jack
9. Video Shielding: Yes
10. Power Supply: 90 240 V AC, 50/60 Hz, 1A
11. Dimension (WxHxD): 185 x 315 x 235mm
12. Weight: 6.3 kg
|
Brand / Model |
McLelland PSM-5 |
McLelland PSM-6 |
McLelland PSM-8 |
|
Type |
Two-way, bi-amplified reference monitor |
|
Power Handing |
70W RMS |
80W RMS |
100 RMS |
|
Woofer |
5" |
6" |
8" |
|
Tweeter |
1" |
1" |
1" |
|
Frequency Response |
55Hz~20KHz |
48Hz~20KHz |
45Hz~20KHz |
|
Noise |
>90dB |
|
HFS Adjust |
-6 / -3 / 0 / 3 dB Selectable |
|
Input |
XLR / RCA / TRS Jack |
|
Video Shielding |
Yes |
|
Dimension (WxHxD) |
185 x 315 x 235mm |
225 x 355 x 265mm |
265 x 410 x 305mm |
|
Weight |
6.6 kg |
7.85 kg |
11.5 kg |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
