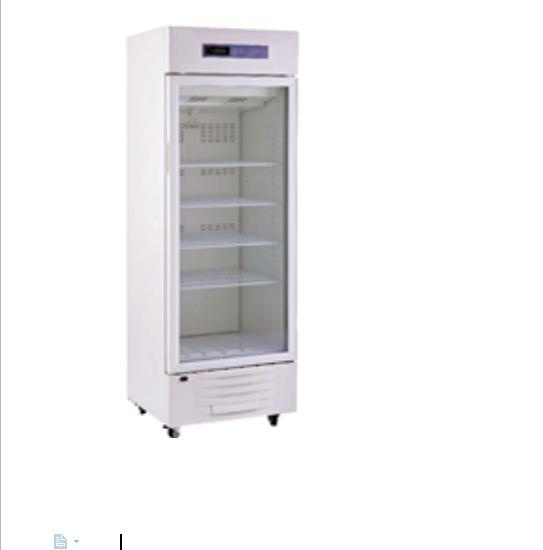

2 to 8 Degree Durable Digital Display Medical Refrigerator (660L))

Prod Model:	HEPO-U660
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	1200*620*1950mm
Temp:	2~8 Degree
External Size W*D*H/mm:	1200*620*1950
Power:	520W
N.W.:	130kgs
Capacity:	251-300L
Door Number:	Single Door
Type:	Display Cooler
Door Type:	Swing Door
Power Source:	Electricity
Temperature Control:	Smart Thermostat
Temperature Type:	Single-temperature
Function:	Cold Storage
Certification:	SGS

Product Description

Precise temperature control system
The worldwide famous high-accuracy computer-controlled temperature system with original binding can
maintain the temperature constancy in the box at 2~8degree precisely.The temperature display precision is 0.1degree,
the resolution is 0.1degree and the adjusting increment is 0.1degree. The value is to be displayed through three-digital
high-brightness figure.

Temperature recording and printing systemOptional
The imported temperature recording and printing system. There are four precise temperature sensors (two
sensors for some systems) inside the box and two temperature indicators outside the box, which are to display
the temperature of upper and lower point, for users to supervise the temperature at each operating states in the
box.
The distinguished power-off memory function can hold and store huge temperature data and information
permanently.
The temperature printing has password protection function, which can prevent illegally printing of the
temperature fluctuation information.
5-ways alarm system: including 2 sound alarm devices with 220V power supply, 2 light alarm devices with 220V
power supply and one remote signal alarm apparatus (optional), consisting the super complementary
supervision system.
The data management software is available for one or more temperature signals changes
Communicate with PC through RS-232 interface to examine the temperature curve diagnosis diagram of one or
more refrigerators and display the data sheet. The data and images can be stored, inquired and printer
Optional.
Perfect Safety Function
Keyboard lock, password protection function, and method against missing-adjustment of the operating
parameter(Optional);
Setting of the alarm temperature range.
Audible and visual alarms: High/low temperature alarm.System failure alarm,power failure alarm are optional.
Three alarm ways :buzzer alarm, flashing alarm, remote signal alarm(optional)
The starting delay function due to self-checking and the interval protection function between temporary stop
and start can ensure the reliable operation;
The system can record the condition of the maximum and the minimum temperature inside the box
automatically without recording paper.
With the specially designed function, the system can operate under the state of sensor failure or the state of
numerical disturbance safely and automatically.
The operating parameter display function can ensure that the system is under supervision by operator and with
security and stability(Optional).
Equipped with remote alarm interface(Optional);
The distinguished operating parameter of the temperature control system can separate the operator menu from
the supervisor menu, which can locate the respective responsibility of the operating parameter and the article
storage(Optional).
Refrigeration system
Import and adopt the high-performance compressor;
Import and adopt the original binding "Bi-Sonic" double fan strongly against the low temperature and moisture
heat elimination fan, vaporizer (cooling pipeline inside the box);
Fluoride-free refrigeration system for environmental protection to make green products and create green world.
Humanization design
High-quality adjustable stand of plastic coated steel wire can make the operation and the cleaning easily.
The large-screen design is easy for observation.
The safe lock design can prevent missing-opening the door.
Wide voltage band is available for 187-242V voltage.
The refrigerator body is made of high-quality structural steel plate, which is treated with advanced phosphate
rot-proof spray coating processing. The surface color is soft.
Double transparent insulation glazed door, filled with inert gas.
The power saving lamps on the body can light the whole space inside the refrigerator.
Four Casters are mounted under the bottom.

Model	Capacity	Temp	External Size W*D*H/MM	Voltage	Power	Climate type	N.W.
HEPO-U120	120L	2~8 ºC	450*430*1460	220V/50HZ	93W	N	40kgs
HEPO-U240	240L	2~8 ºC	580*560*1790	220V/50HZ	176W	N	77kgs
HEPO-U300	300L	2~8 ºC	620*560*1970	220V/50HZ	193W	N	88kgs
HEPO-U660	660L	2~8 ºC	1200*620*1950	220V/50HZ	520W	N	130kgs
HEPO-U1000	1000L	2~8 ºC	1200*760*1970	220V/50HZ	550W	N	160kgs
HEPO-U1500	1500L	2~8 ºC	1800*760*1970	220V/50HZ	650W	N	190kgs
HEPO-U565	565L	2~8 ºC	1220*642*1885	220V/50HZ	443W	N	158kgs
HEPO-U1006	1006L	2~8 ºC	1220*872*1885	220V/50HZ	472W	N	207kgs
