Isun Digitech Limited >> 2 DIN 7" in Dash Car GPS System for Nissan New Teana (TS7626)

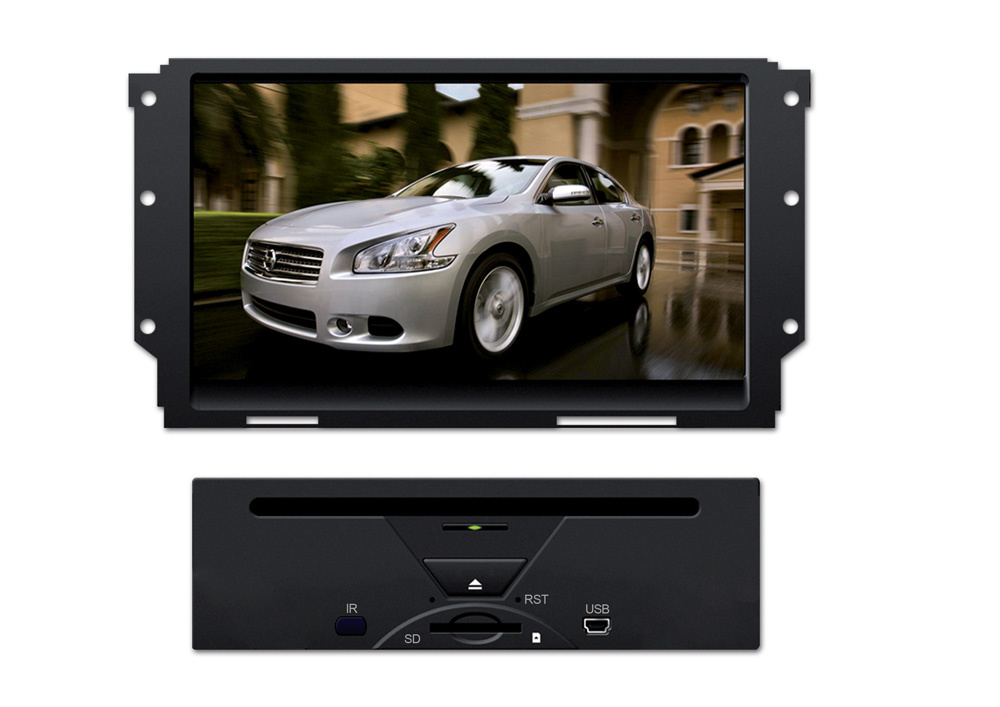

2 DIN 7" in Dash Car GPS System for Nissan New Teana (TS7626)

2 DIN 7
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: TS7626
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen: 7 Inch TFT LCD
Bluetooth: Available
GPS: Supported
Language: Multi-Language
Radio: Built-in
Digital TV: Optional
Operation System: Wince 6.0
Steering Wheel Control: Support
Dual Zoom: Support
Supply Type: OEM/ODM
Use: Automotive
Screen Size: 7"
Type: GPS Navigator

Product Description

2 DIN 7" in Dash Car GPS System for Nissan NEW TEANA

Optional: Built-in iPod, TMC, RDS, ISDB-T, DVB-T MPEG2

Key features:

1. 7 inch 16: 9 800*480 digital high definition TFT LCD touch screen
2. Built-in GPS navigation system
3. Build-in Bluetooth for hand free (Coming Tel No. Display function & Call out directly by touch screen)
4. SD card slot, support MP3/MP4/DIVX/WM etc
5. Compatible with MP3/MP4/DVD/VCD/CD/CD-R/DIVX/CD-RW etc
6. With excellent mechanical anti-vibration and electronic shock protection
7. Uniquely designed circuitry including standby function to increase battery durability
8. Adjustable parameters can be memorized automatically, and resume back to the default #118alue
9.3D interface make operation to easy
10. Real time clock function
11. One channel video input, two channel video output; Two channel audio input, three channel audio output
12. Dualzone function (lister radio/CD while using GPS)
13.30 preset radio stations
14. Multi-function OSD menu
15. Small light available on the button of the panel
16. Fluorescent keys available for the remote control
17. Rearview mirror available
18. Original Canbus system for steering wheel control
19. Built-in TV tuner
20. Built-in iPod (optional)
21. Built-in TMC (optional)
22. Built-in RDS (optional)
23. Built-in ISDB-T or DVB-T MPEG 2 (optional)

We also can make Special Car DVD for the following cars --- (about 300 types)

German Cars:
VW, Benz, Opel
Japanese Cars:
Toyota, Honda, Nissian, Mitsubishi, Suzuki, Mazda, Subaru
Korea Cars:
Hyundai, KIA
American Cars:
Chevrolet, Ford, GMC, Buick, Chrysler
French Cars:
Renault, Citroen, Peugeot
Chinese Cars:
Geely, BYD, Brilliance, MG, Roewe
System  parameters
Working  voltage DC  11V-14V
Working  current MAX  15A
Standby  current 25  mA
Video  system Automatic  PAL/NTSC
GPS  specification
Operation  system WINCE  6.0  CORE
Support  map Garmin,   Tomtom,   IGO,   Route  66  etc
Processor Sirf  Atlast  V
EMS  memory 64MB  SDRAM
Storage  device 256MB
Display  output CVBS+S-VIDEO  output
Audio  output Stereo  CD  Quality
Main  frequency 400MHz
Support  audio  type MP3/PCM/WMA
Support  video  type ASF/AVI/WMV/DIVX
Chipset SIRF  STAR  3
Frequency 1.575GHz
Channel  number 20channels
Tracking  sense  degree -159dbm
Position  accuracy 10m,   2D  RMS,   WAAS  enable
Velocity 0.1m/s
Data  renewal  rate 1Hz
Re-catching  time Average  0.1s
Hot  start  time Average  1s
Warm  start  time Average  38s
Cold  start  time Average  42s
The  biggest  fixed  height 18000m
The  biggest  velocity 515m/s
Power  specification DV  12V,   current< 500mA
Consumption 4.5W(12V/360mA),   normal  3W(12V/250mA)
DVD  parameters
Video  output  range 1+10.2Vp-p(75Ω )
Disc  spec Diameter  12cm  disc
Compatible  disc DVD/VCD/CD/MP3/WMA/JPEG/MPEG4
Amplifier  parameters
Testing  voltage 13.8V
Maximum  power  output 4× 45W
Speaker  impedance 8Ω   (4-8Ω   acceptable)
Audio  parameters
Track  imbalance  degree ≤ 2dB
Segregation  degree ≥ 45dB
Frequency  response 20Hz-20KHz  (± 3dB)
Volume  adjustment Low  100Hz± 7dB
Medium  1KHz± 7dB
High  10KHz± 7dB
Radio  parameters
FM/AM  frequency FM:   87.5MHz-108MHZ
AM:   522KHz-1620KHz
Tune  method PLL  frequency  complex  tune
Display  method TFT  Graphical  User  Interface  OSD
Storage  quantity FM  radio:   18channels
AM  radio:   12channels
Search  method Automatic/manual
Isun Digitech Limited is a leading professional manufacturer and exporter of Car DVD Navigation products and electronic products in China. Our products include Car DVD Navigation, GPS Navigator, Bluetooth GPS Receiver, and other digital products.

As a professional supplier, we always place much emphasis on quality control. Special quality control measures have been implemented in the whole process from materials selection to final delivery. Under this system, all products are under strict control with defective items removed.

It is our principle to devote ourselves to offering good quality products with reasonable pricing to all partners. Moreover we have excellent capability of filling customers" OEM requirements. Thanks to our excellent production cost control and constant innovation, we are enjoying the success of providing simple but beneficial experience with our high-tech solutions!

What we understand is Customer satisfaction first, Communication always.
