| Prod Model: |
Sanway FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| 4ohms Stereo Power(RMS): |
4400wx2 |
| Dimension(Lxwxh): |
483X88X396mm |
| Type: |
Professional Amplifier |
| Function: |
Pre-amplifier |
| Tube Type: |
Tube Amplifier |
| Voltage: |
AC 110V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Used For: |
Professional |
| Conductive Mode: |
A |
| Usage: |
KTV System |
| Sound Channel: |
4.1 |
Product Description

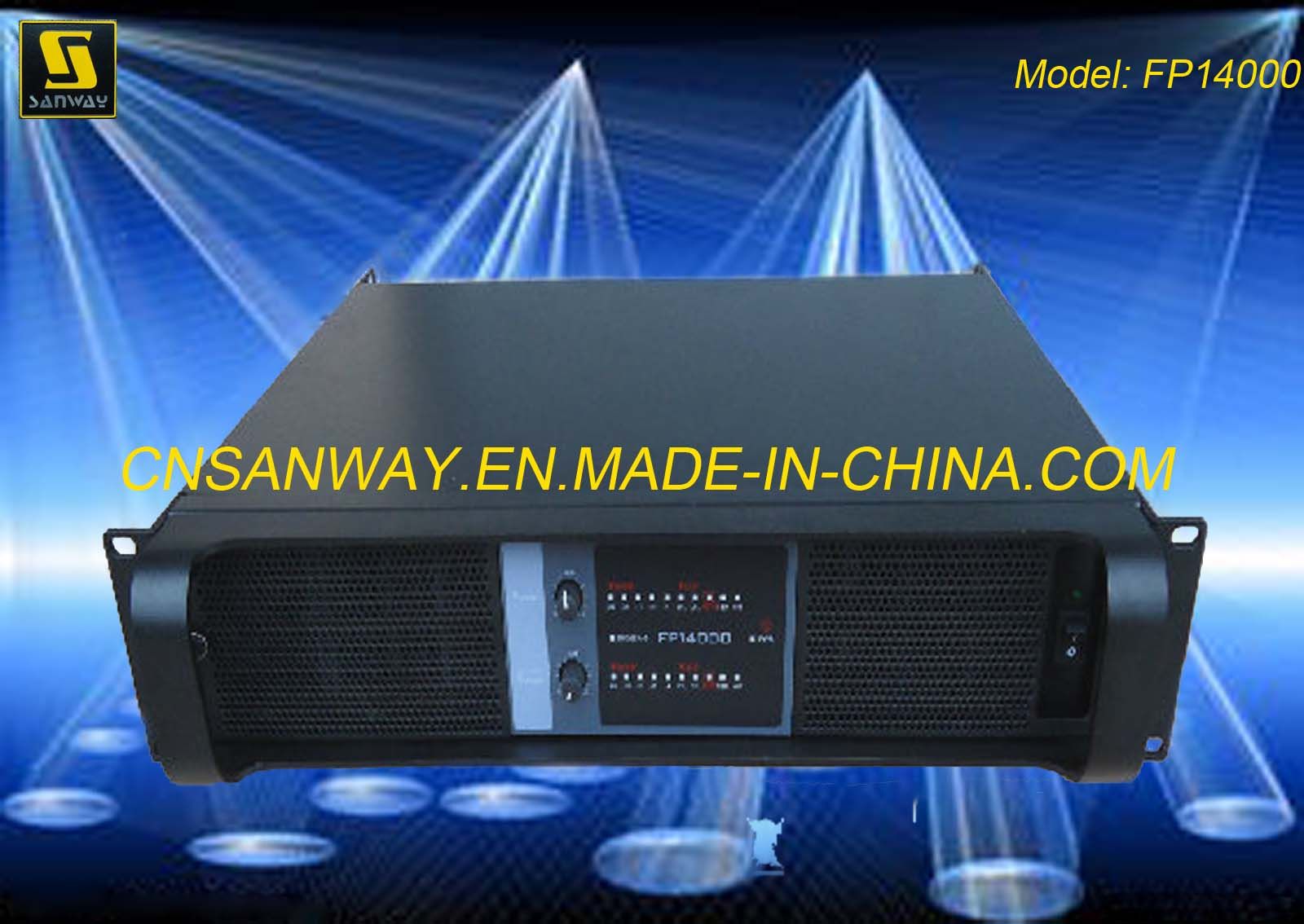

2 Channel Energy Efficient Amplifier (FP14000)
1.2X2350W@8ohms FP14000 Audio Power Amplifier
2.13kg Lightweight Switching Power Amplifier
3. FP14000 Power Amplifier for Low Frequencies
4. China Best Hot Seller Power Amplifier
China Manufacturer Of Professional Audio Amplifiers
Premium Sound Quality
Affordable Price, Quality Power Amplification
Quality ON Transistors & Components
CE, RoHS Certification Products
Specifications:
|
FP+ series Switching Power Amplifier Specification ( CE Certification ) |
|
ITEM |
FP14000 |
FP10000Q |
|
Output Power |
20-34kHz, 1W with 1 khz |
|
8ΩStereo Power(RMS) |
2350WX2 |
1350WX4 |
|
4ΩStereo Power(RMS) |
4400WX2 |
2100WX4 |
|
2ΩStereo Power(RMS) |
7000WX2 |
2500WX4 |
|
8ΩBridged Power(RMS) |
8800W |
4200WX2 |
|
4ΩBridged Power(RMS) |
14000W |
5000WX2 |
|
Frequency Response(+o/-0.3dB,1W/8Ω) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
<0.1% |
|
Signal-to-Noise Ratio |
>112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
>70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
short circuit, DC voltage, turn-on/off transient, current inrush |
|
Operating voltage |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 Kohms |
|
Level adjustment (per ch.) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W×H×D) |
483×88×396mm |
|
Packing dimension |
580×180×560mm |
|
Net weight(kg) |
13 |
|
Gross weight(kg) |
18 |
