| Prod Model: |
FD25C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Sliver, Orange |
| Tire: |
Pneumatic Tire/Solid |
| Transmission Type: |
Hydraulic/Solid |
| Engine Type: |
Diesel/LPG/Electric |
| Trave(Full/No Load): |
17/19km/H |
| Lifting(Full/No Load): |
550/580mm/S |
| Engine Model: |
Xinchai C490/Quanchai A490(Isuzu C240/Nissan K21) |
| Fuel Tank Capacity: |
70L |
| Turning Radius(Outside): |
2240mm |
| Max Gradeability: |
23/18% |
| Type: |
Powered Pallet Truck |
| Power: |
Diesel Engine |
| Load Capacity: |
1T - 5T |
| Load Center: |
500mm |
| Lift Height: |
3000~5000mm |
Product Description

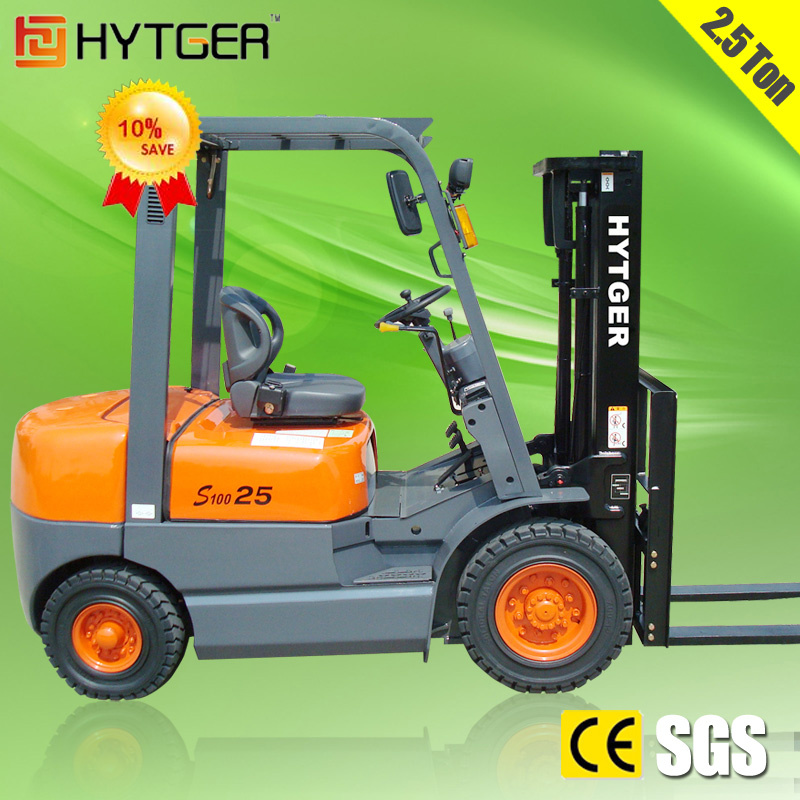

2.5T Factory Price Forklift Paper Roll Clamp Accessory (FD25C)
Specification Of Machinery Diesel Forklift:
Forklift Manual
Rated Capacity: 2500KG
Power type: Diesel
Engine: XINCHAI C490
Max lifting height: 3000mm
Why choose HYTGER?
1. Manufacturing experience: More than 10 years
2 Advantage: Quality control in every detail of product. We supply spare parts to almost all forklift brands in China.
3. What we produce: Every spare part, and the assembly of the forklift.
4. Our commitment to customer: The best quality and most reasonable price, not the lowest price.
5. Special characteristics: HYTGER diesel forklift can meet the various specific requirements for engines, masts, optional cabin, fork length and attachment etc.
Delivery time:
25days
Terms Of Payment:
T/T, L/C
FAQ
1. What Kinds Of Engine Do You Have And Any Gurantee?
Japanese ISUZU And YANMAR Engine, Absolutely High Quality.
2. How Many Colors Of Forklift You Can Supply?
Sliver, Orange, Yellow Diesel Forklift As Your Request.
3. What Payments Do You Accept?
T/T, L/C
Company Information
We are a supplier of forklift truck which got fifteen years experience, and mainly specialized in FORKLIFT(ELECTRIC, LPG, GASOLINE, EXPLOSION-PROOF, DIESEL AND PALLET FORKLIFT etc), STACKER, CONTAINER CRANE, AERIAL WORK PLATFORM, DOCK RAMP And FORKLIFT ACCESSORY AND PARTS etc
Our target market throughout all over the world, exported in North American, Latin American, Europe, MID-East, Africa and Aisa etc and get many postive feedback from them and highly appreciate. At the same time, our products almost all are high quality and have passed many certificates, such as CE, SGS, TUV, GS, and ISO etc. We have over fifteen years export experience get many client's appreciates in this field.
CHOOSE HYTGER, CHOOSE THE QUALITY! ! !
Tom
Phone: 86-21-58691270 Mobile: 86-134-1829-9879
Shanghai Hytger Industry & Trade Co., Ltd
Add: 20F, Dong Hua Finance Building, #28 MaJi Road, Wai Gao Qiao Free Trade Zone, Pudong, Shanghai 200131, P. R. China
|
General |
1 |
Model |
|
FD20T |
FD25T |
FD30T |
FD35T |
FD40T |
|
2 |
Power Type |
10 |
Diesel |
Diesel |
Diesel |
Diesel |
Diesel |
|
3 |
Rated Capacity |
kg |
2000 |
2500 |
3000 |
3500 |
4000 |
|
4 |
Load Centre |
mm |
500 |
|
Characteristic&Dimension |
5 |
Lift Height |
mm |
3000 |
|
6 |
Fork Size |
L×W×T |
mm |
1070×122×40 |
1070×125×45 |
1070×125×50 |
1070×150×50 |
|
7 |
Mast Tilt Angle |
F/R |
Deg |
6°/12° |
|
8 |
Front Overhang (Wheel center to fork face) |
mm |
450 |
480 |
485 |
|
9 |
Ground Clearance (Bottom of mast) |
mm |
110 |
120 |
|
10 |
Overall Dimension |
Length to face of fork (Without fork) |
mm |
2460 |
2530 |
2660 |
2720 |
3890 |
|
11 |
Overall Width |
mm |
1150 |
1225 |
1285 |
1345 |
|
12 |
Mast Lowered Height |
mm |
1995 |
2075 |
2150 |
|
13 |
Mast Extended Height (With backrest) |
mm |
4030 |
4250 |
|
14 |
Overhead Guard Height |
mm |
2120 |
2140 |
|
15 |
Turning Radius (Outside) |
mm |
2170 |
2240 |
2400 |
2460 |
2560 |
|
Performance |
16 |
Speed |
Travel (Full load) |
km/h |
17/19 |
18/19.5 |
16.5/18 |
|
17 |
Lifting (Full load) |
mm/s |
550/580 |
450/500 |
380/480 |
|
18 |
Max. Gradeability |
% |
27/20 |
18/20 |
|
|
Chassis |
19 |
Tire |
Front |
|
7.00-12-12PR |
28×9-15-12PR |
28*9-15 |
|
20 |
Rear |
|
6.00-9-10PR |
6.50-10-10PR |
650-10 |
|
21 |
Wheelbase |
mm |
1600 |
1700 |
1800 |
|
22 |
Service Weight |
kg |
3330 |
3670 |
4290 |
4690 |
5100 |
|
Power&Transmission |
23 |
Battery |
Voltage/Capacity |
V/Ah |
12/80 |
|
|
24 |
Engine |
Model |
|
Chinese engine A490/C490 |
Chinese engine C495 |
|
25 |
Manufacture |
|
China |
|
26 |
Rated Output |
kw/rpm |
52/2500(38.3/2500) |
61/2450(44.8/2450) |
42/2450 |
|
27 |
Rated Torque |
N@m/rpm |
15.7/1800(15.4/1800) |
19/1800(186/1800) |
15.7/1800 |
|
28 |
No. of Cylinder |
|
4 |
|
29 |
Bore×Stroke |
mm |
86×102 |
95.4×107 |
|
|
30 |
Displacement |
cc |
2369 |
3059 |
3168 |
|
31 |
Fuel Tank Capacity |
L |
70 |
|
33 |
Transmission |
Type |
T means Torque Converter, C means Clutch |
|
|
34 |
Stage |
FWD/RVS |
|
1/1(2/2) |
