| Prod Model: |
TP-WHC01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Style: |
Headband |
| Function: |
Bluetooth |
| Type: |
Wireless Earphone |
| Use: |
Household |
| Wire Material: |
OFC |
| Microphone: |
Without Microphone |
| Jack Type: |
3.5mm |

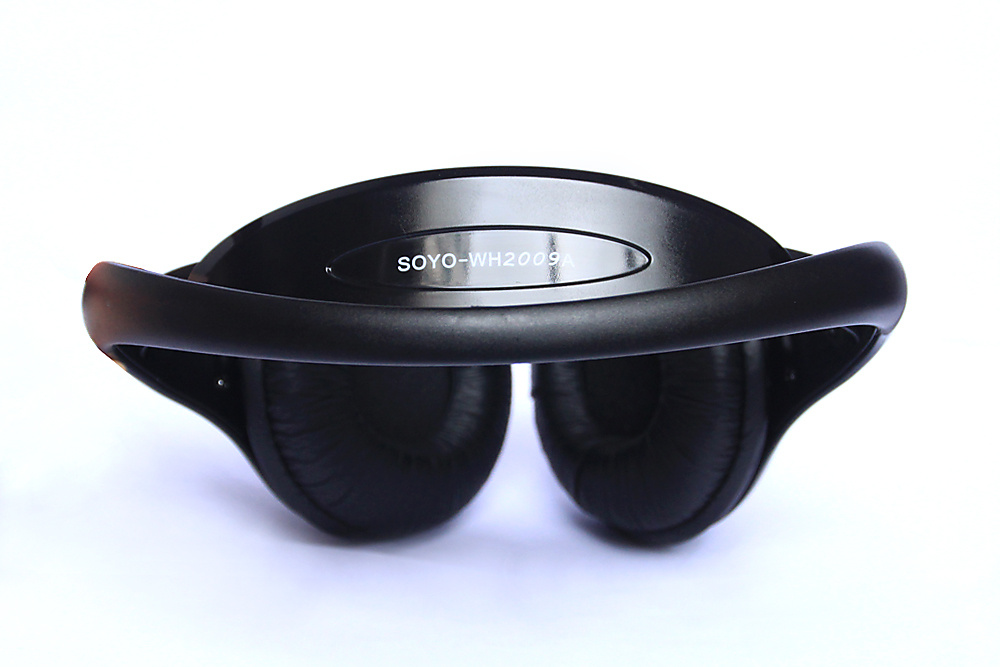

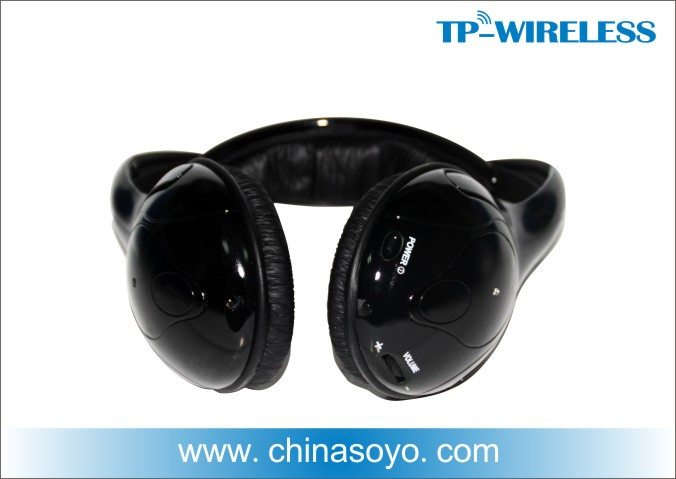

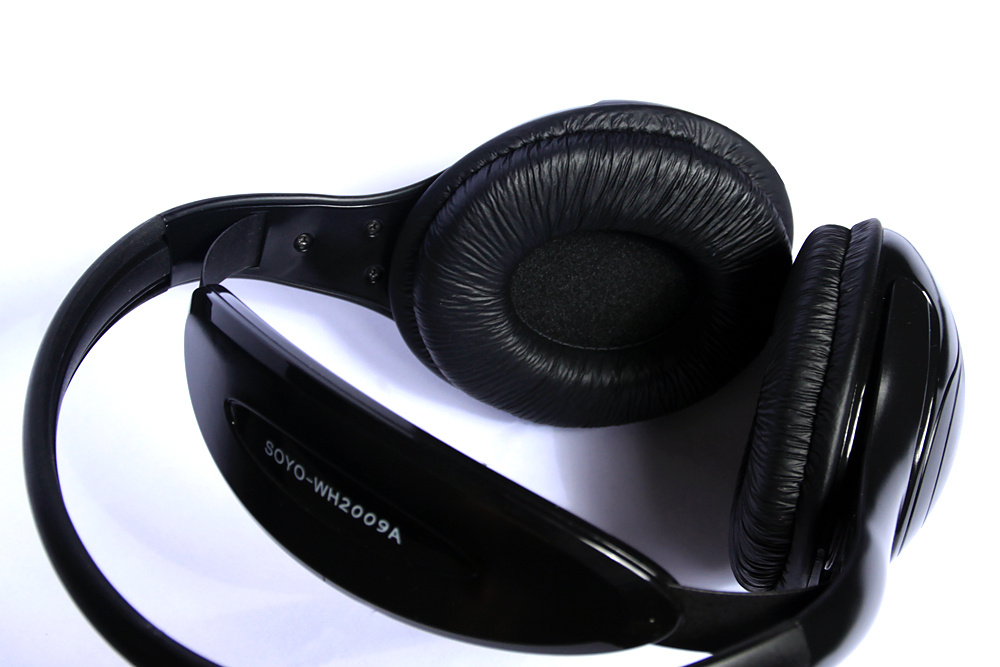

Product Description
2.4G Hi-Fi Digital Wireless Headphone Features1. Long distance transmission. The stereo audio can be transmitted in over 100 meters open area (no obstacle, the test is under static status)
2. Supporting point to point and point to mass transmission modes and unlimited receivers.
3. Up to 20 selectable channels, simply to avoid interference. The item works in 2.4GHz ISM (namely Industry, Science, Medicine) band, with 20 channels for selection, meeting the needs of Multi-frequency and frequency hopping. If there is strong noise and interfere in the current channel, users just change a new channel to get a good effect.
4. The shortest latency. The latency of audio wireless transmission <0.5ms, which is the top standard in the industry.
5. The highest audio sampling ratio 64K, Hi-Fi HDCD sound quality
6.20Hz ~20 KHz frequency response. Please note that it's an actual test data, quite different from some products in the markets which don't meet this standard but be marked with exaggerated advertisement.
7. Ultra-low power consumption design. The lowest power consumption provided in the industry, the transmitter current can be adjusted from 40mA -110mA directly according to users' request, the receiver current is lower than 35mA and the current is less than 5mA in standby.
8. Be equipped with high capability Lithium-ion rechargeable battery, charger offered, it can work for more than 30hours after each full charge.
9. World's first output mode compatible with microphone and stereo audio.
Applications@ Multimedia classroom
@ Education and teaching
@ Wireless audio transmission of speaker system
@ Wireless audio transmission in engineering control
@ CD, DVD players or other musical instruments
@ Wireless simultaneous interpretation system
@ Wireless loudspeaker
@ Wireless microphone
|
Description |
Transmitter |
Wireless Headphone |
|
Work voltage |
3.6- 6V DC |
3.6DC |
|
Work current |
Max 120Ma |
Max 40mA |
|
Operation Temperature |
-15 - 65 |
-15 - 65 |
|
RF IC Frequency |
2400 - 2483 MHz |
2400 - 2483 MHz |
|
MODULATION |
GFSK |
|
|
Channel Space |
4MHz |
4MHz |
|
Optional Channel selection |
One-way loop selection |
manually operated / automatically operated |
|
Optional Channels |
20 CH |
20 CH |
|
Module channel space |
4MHz |
4MHz |
|
RF Range |
100_150M (tested withtransmit Power 100mw in an open field) |
|
Transmit Power |
1-100mw(optional when ordering, default is 100mw) |
|
|
Receiver sensitivity |
|
-90dBm |
|
Input Level |
Max 1.0Vpk |
|
|
Input resistance |
10k Ohm |
|
|
Input port |
two input modes:1,3.5mm stereo audio input 2,3.5mm microphone input |
|
|
Stereo Output Level |
|
30mW RL = 32Ω |
|
Output resistance |
|
1k Ohm |
|
Sensitivity |
|
102(dB/mW) |
|
Output/Input Gain |
1:1 |
|
Frequency Response |
20 - 20000Hz |
|
latency |
< 0.5 ms |
|
Sampling ratio |
64kHz at 16 bit |
|
SNR |
95 dB |
|
THD |
0.3 % at 1kHz |
|
Dynamic Range |
90dB |
|
Channel Separation |
85 dB |
|
|
|
|
|
