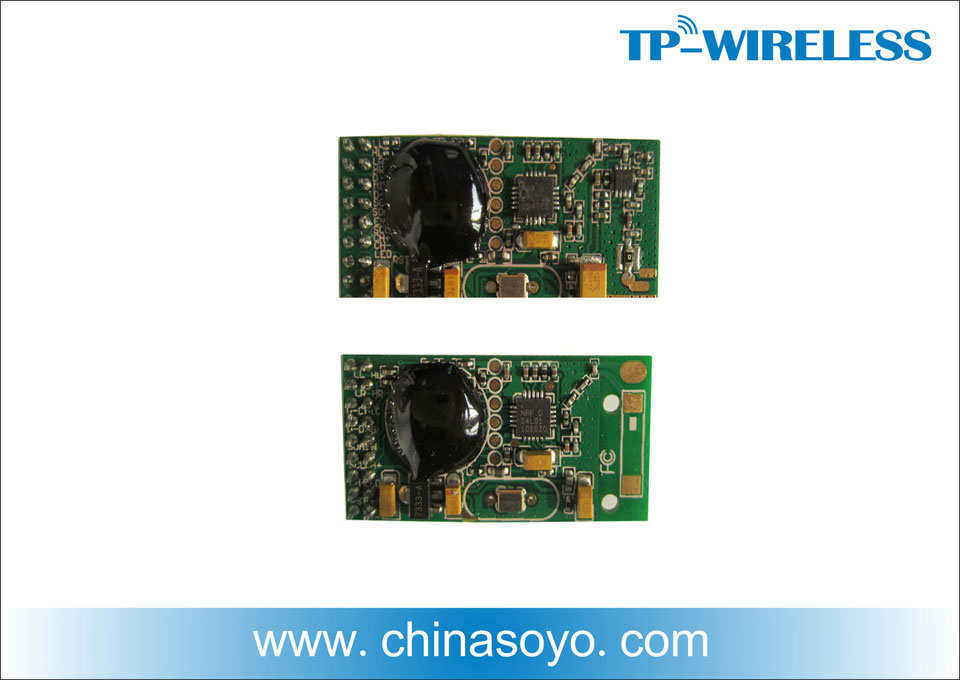

2.4G Digital Wireless Audio Microphone Module

2.4G Digital Wireless Audio Microphone Module
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 500/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: SOYO-WM24G02
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency: 2.4G
Shortest Latency: < 0.5ms
Style: Headset Microphone
Application: Meeting
Signal Transmission: Wireless
Directivity: Omni-direction
Sound Channel: Stereo
Transducer Principle: Electromagnetic Microphone
Sound Field Force: Line Column Type
Connector(',s): TRS 3.5 mm
Wireless Technology: DSP Digital
Output Impedance: 50-1000Ω

Product Description

Features

*Digital audio with 64K sampling rate and 16-bit resolution.
*Low power consumption.
*GFSK digital modulation/demodulation.
*20Hz ~ 20 KHz audio frequency response.
*90dB audio dynamic range.
*Power-on function to prevent pop noise.
*Avoiding reception errors by employing forward error correction (FEC).
*Operating at 2.4GHz ISM band with 20 selectable channels.
*-85dBm receiving sensitivity, 45dB channel rejection and Application distance up to 180 meters (L. O. S. )
with perfect reception.



Applications

*Car Audio /Car Speaker
*Home theater rear speakers
*Wireless speakers
*Sound Card, MP3, CD player and DVD player
*Headphone
*Ordinary sound box





NO.DescriptionTransmitter moduleReceiver module
1Work voltage 3.6- 6V DC 2.5 - 3.6V DC
2Work electric current Max 120mA Max 35mA
3Work temperature-15 - +65-15 - +65
4Frequency response2400 - 2483 MHz 2400 - 2483 MHz
5ModulationGFSK
6Baud rate2M bps 2M bps
7Channel space4MHz4MHz
8Stabilization of frequency+/-156KHz +/-156KHz
9Work frequency range2400 - 2483 MHz2400 - 2483 MHz
10Work channel20 CH20 CH
11Channel space of module4MHz 4MHz
12Output power0-20 dBm
13Receiver sensitivity
90dBm
14Input powerMax 1.0Vrms
15Input impedance10k Ohm
16Input modeTwo input modes:
1. Microphone
2. Stereo audio

17Stereo output 1
30mW   RL = 32Ω
18Stereo output 2
50mW   RL = 16Ω
19Output impedance
1k Ohm
20RF Distance100-150 meters in the open area under 20dBm
21Output input gain ratio1:1
22Frequency response20 - 20000Hz ( +/1dB )
23The latency time< 0.5 ms
24Sampling ratio64kHz@16 bit*2
25SNR95 dB
26Distortion0.8%@1kHz
27Dynamic range90dB
28Separation between the left and right track70 dB

Soyo Technology development Co. Ltd is a national High-Tech enterprises with certification of software enterprises and products. SOYO owns independent intellectual property rights and the core technology on 2.4G/5.8g digital wireless audio and video transmission technologies. SOYO is well known in Asia-Pacific region as a professional digital wireless audio and video transmission solutions provider, and is committed to creating the best, most complete wireless audio, video and data transmission products and solutions

SOYO Technology was established in 2005, main founder graduated from the Tsinghua University and the University of Science and Technology of China(USTC), has always focused on the development and innovation of 2.4G/5.8G digital wireless audio and video transmission technology. Our products have been sold to over 50 countries and regions, cover four main application areas: Education, Tourism, Professional Audio, Consumer Electronics Field.

In the tourism & Museum industry, SOYO technology offers complete solutions from product to service, include digital wireless tour guide system, digital wireless VIP guide system, Audio guide/Video guide system, 3D video show technology and the related service of the Multilingual audio and video production etc. SOYO believe that we can give the the museum, Science and technology museum, Planning museum, Tourist Attractions the best service and totally solution on the tourism interpretation, wireless tour guide and show, exhibition digitalization and intellectualization. In the professional wireless tourism guide and exhibit explain technology field, SOYO technology has become the largest scale, the most powerful technology, most complete solutions & most perfect after-sales service network.

SOYO have successfully applied the digital wireless tourism guide system and professional exhibit explain loudspeaker system in below famous museum in China:

History museum of Party School of the CPC Central Committee, the British consulate in Shanghai, Museum of Shandong Province, Wuhan Ordnance Officer School History Museum, the Mongolian National Museum, Dalian Sun Asia Sea World, Deng Shichang Memorial museum, Huangpu Ancient village Cultural History Museum, Yanbian Museum, Peking University Library etc., also finished the construction of corporate pavilions of some famous domestic and foreign companies like China's Nuclear Power Group, Porsche (China branch), S. F Express (headquarters), Ricoh China, Mitsubishi Electric Co., Ltd in China, which is the remarkable achievements SOYO made amoung the museum of Chinese tourism industry equipment manufacturers. Soyo also engaged in cooperating with the famous exhibition /museum design company so they can provide professional tour guide and explain solution to the end user to expain what their good design on museum in wireless.

SOYO technology developing rapidly in recent years, has become a national double soft enterprise, national high-tech enterprise, AAA quality credit enterprise in China, achieve the honor of 2011 China venture capital value list new 30 strong entrepreneurship, the third China (shenzhen) innovation contest awards, the first China Tianjin Technology Entrepreneurship Competition Success Endeavour Award. Besides those, SOYO has passed the global wireless certification such as FCC in North American, CE in European Union, TELEC in Japan, Chinese 3C and China radio models approval etc., also gained all the certifications for the global sales of wireless products. We are worthy of being leader in the field of wireless audio and video transmission technology. In May 2013, SOYO officially listed in national financial reform of science and technology demonstration area Qianhai stock trading center, stock code is: 660173.

SOYO would like to share the beauty of Science, Technology and Innovation and create the bright future of the intelligence times with you.
