| Prod Model: |
TKF(R)-35GW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Energy Type: |
Solar Thermal Assisted |
| Cooling Capacity: |
12000BTU |
| Applicable Area: |
Bed Room, Office , Meeting Room |
| Noise: |
<42db |
| Compresser: |
Hitachi/Gmcc/SANYO |
| Type: |
Fixed-frequency Air Conditioner |
| Capacity: |
24000-27000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Certification: |
MEPS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description

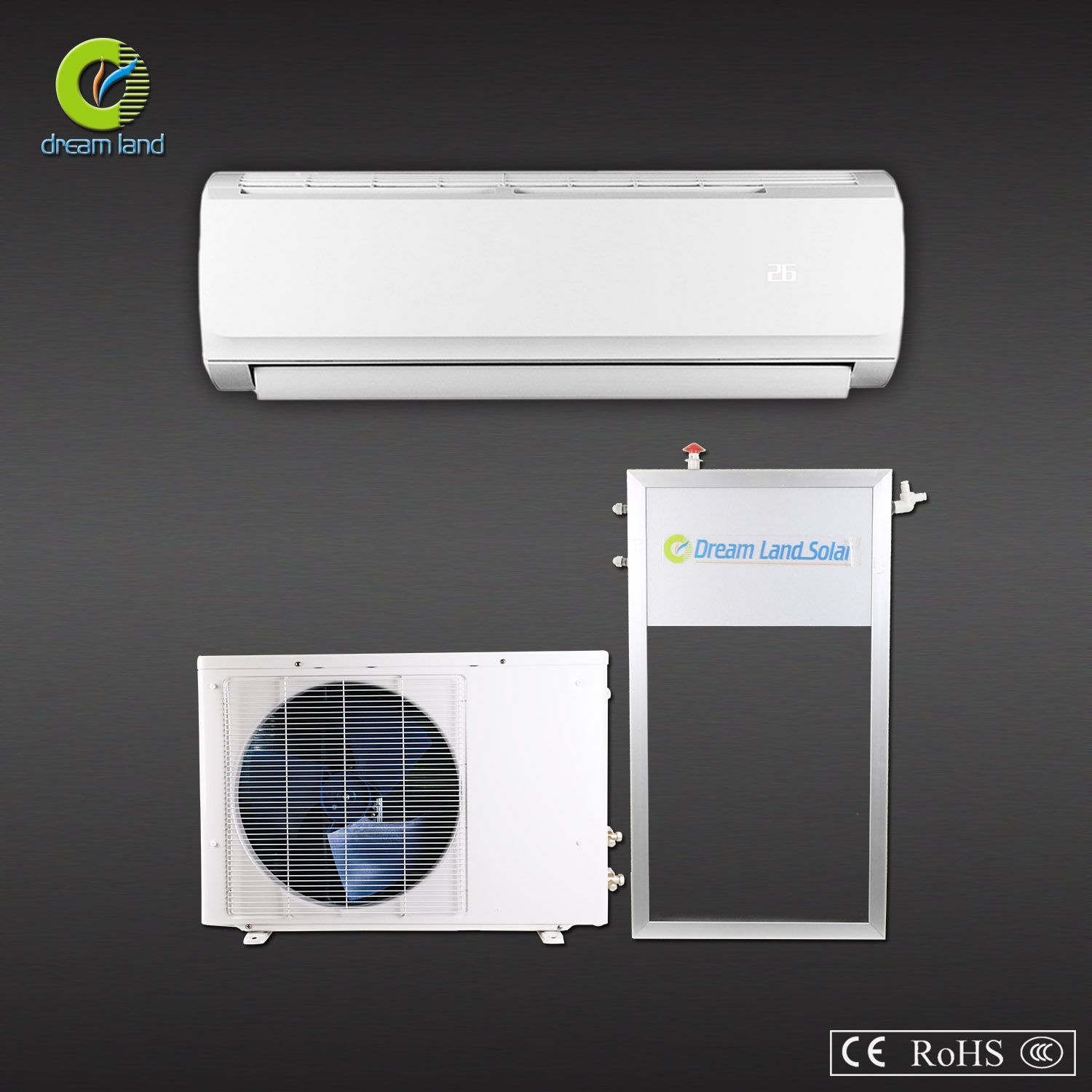

1Ton Solar Flat Panel Air Conditioner(TKFR-35GW)
Entirety Out Door Design, easy installation
With solar thermal assisted to reduce gird power consumption.
EER 3.8
Outdoor running temperature: -5 to 53C
High efficiently, energy-saving, comfortable and money saving, exceeding national first grade energy standard.
Durable and long-lived, smooth running.
Low-loaded operation of the compressor to extend its duration.
Healthy and comfortable, constant temperature and keeping air-conditioner disease away.
It is not frequency conversion air conditioner but superior to it because conversion type begins to save energy when the indoor temperature reaches the set value, while the hybrid solar air-conditioner runs in the optimal state immediately after starting and it achieves the same effects of traditional air conditioner with less power consumption.
Super luxurious appearance decorates your home. Indoor panel adopts aluminum alloy and wire drawing metal color board to make your house more sparkling.
Automatic open and close dustproof air outlet.
Easy installation
With strong adaptability, Chuanglan hybrid solar air-conditioner can run at super high and low temperature from -5 to 53C
| Model No. | TKF(R)-26GW | TKF(R)-35GW | TKF(R)-60GW | TKF(R)-72GW |
| Power Supply:220-240VAC, 1pH, 60Hz |
|
|
|
|
|
|
| Performance |
|
|
| 1Ton | 1.5Ton | 2Ton |
| Capacity | Cooling | BTU/h | 9000 | 12000 | 20000 | 24000 |
| W | 2600 | 3500 | 6000 | 7200 |
| Heating | BTU/h | 10000 | 13000 | 22000 | 27000 |
| W | 2900 | 3800 | 6600 | 7900 |
| Noise | Indoor | dB(A) | ≤40 | ≤42 | ≤46 | ≤50 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 |
| Air Circulation | m³/h | 500 | 550 | 850 | 1150 |
| Suitable Area | m² | 11~17 | 15~23 | 25~42 | 30~48 |
| EER | W/W | 3.64 | 3.89 | 3.88 | 3.82 |
| BTU/h/w | 12.42 | 13.27 | 13.24 | 13.03 |
| Power Consumption |
|
|
|
|
|
|
| Power Input | Cooling | W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 |
| Heating | W | 650~780+350 | 800~1050+350 | 1350~1590+350 | 1700~1950+350 |
| Rated Current | Cooling | A | 3.00~3.60 | 3.70~4.80 | 6.30~7.30 | 8.00~8.90 |
| Heating | A | 3.00~3.65+1.6 | 3.70~4.90+1.6 | 6.30~7.50+1.6 | 8.00~8.90+1.6 |
| Vacuum Tube | Diameter*Length*PCS | 47mm*500mm*9 | 47mm*500mm*10 | 47mm*620mm*11 | 47mm*620mm*11 |
| Dimensions |
|
|
|
|
|
|
| Indoor Unit | Net | mm | 802*265*190 | 880×286×203 | 940×300×220 | 1080*220*300 |
| Shipping | mm | 860*325*255 | 935×350×270 | 1003×360×280 | 1136*285*360 |
| Outdoor Unit | Net | mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*410*760 | 990*400*770 |
| Collector | Net | mm | 1000*555*80 | 1000*555*80 | 1000*555*80 | 1000*555*80 |
| Shipping | mm | 1100*680*110 | 1100*680*110 | 1100*680*110 | 1100*680*110 |
| Weight |
|
|
|
|
|
|
| Indoor Unit | Net/Gross | kg | 9/10.5 | 10/11.5 | 16/17.5 | 20/22 |
| Outdoor Unit | Net/Gross | kg | 31/34 | 38/40 | 50/52 | 55/58 |
| Solar Collector | Net/Gross | kg | 16/17 | 16/17 | 16/17 | 16/17 |
| Loading Qty | in 20feet | sets | 72 | 72 | 59 | 58 |
| 40HQ | sets | 175 | 175 | 144 | 141 |
Product Description
1. High Efficiency
2. Fashion and Elegant Design
3. LED Display
4. Quiet Running
5. Hitachi or GMCC Compressor
6. Golden Coating Heat Exchanger
7.100% Copper Connection Pipes With Insulation
8.Enviornmently Friendly Gas R410A
Why it saves energy compared with normal air conditioner?
Chuanglan hybrid solar air-conditioner is driven by electricity and with solar energy as an auxiliary power. The two kinds of energy work complementally in accordance with principles of fluid dynamics. It combines the absorption working system to compression system by using environmental-friendly media in cooling and heating on the basic of traditional air-conditioner technology to achieve energy-saving and environment protection.
Compare to current products:
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also a very costly, and its cooling capacity is not big enough
Our Services
Warranty: 1year machine+ 3 year compressor+1% spare parts
Professional engineers team will serve for you if any question.
