| Prod Model: |
P5-8S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
160mm*160mm*13 |
| LED Encapsulation: |
3528 |
| Display Resolution: |
1024 Dots |
| Module Weight: |
0.2kg |
| Module Port: |
Hub 75-B |
| Module Consumption: |
<25 W |
| Refresh Frequency: |
>320 Hz |
| Equilibrium Brightness: |
>2500 CD/M2 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
5mm |
| Pixel Density: |
40,000 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
Product Description

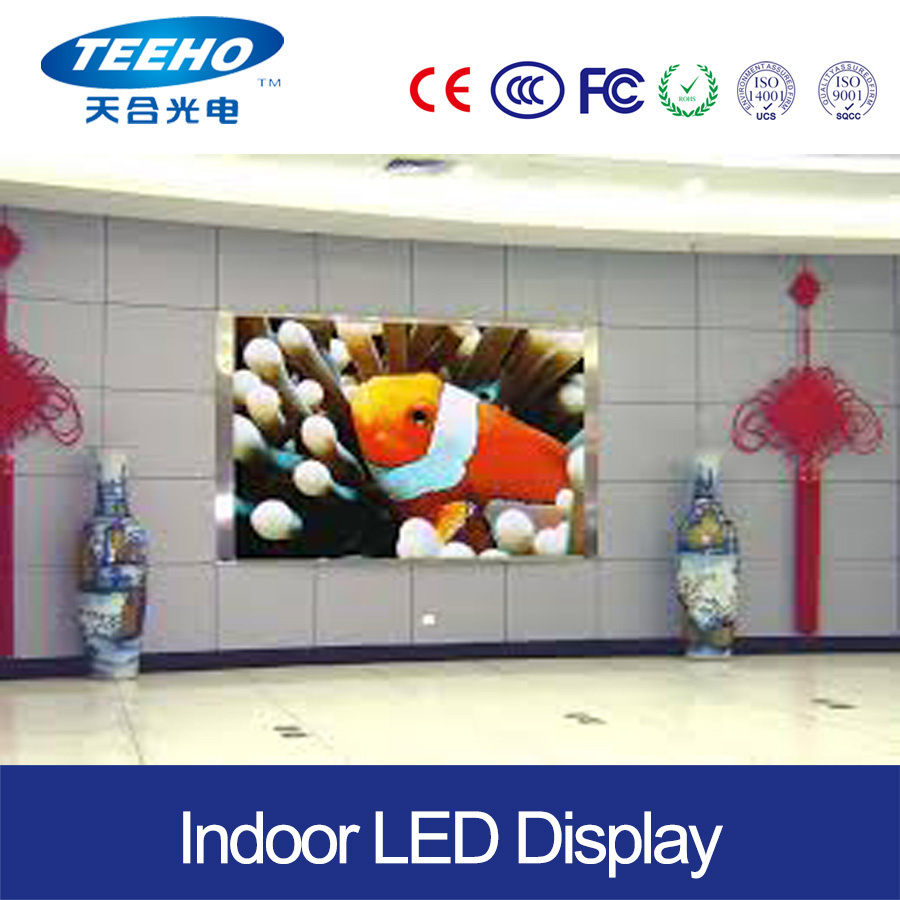

Indoor full color P5-8s LED Display
Indoor Full Color LED Display adopts the Unique SMD technology. It has the same working principles with computer monitors. It can show various colors constituted by tri-colors: red, green and blue, and can display colorful static & animated images. Each pixel contains red, green, and blue LED. Points of LED Screen are corresponding with points of computers. It supports VGA display modes, and can display television programs, VCD or DVD, live programs, with the excellent displaying effects, high reliability and system stability. It is widely used in the places of airports, railway stations, ports, hotels, shopping malls, stadiums for information displaying, advertising and TV Video displaying.
Product feature
1. The SMD 3 in 1 and Separate SMD are available, providing the tailor made solution according to clients actual requirement.
2. Wider viewing angle. Viewing angle can reach the level of 160 degree in horizontal, 80 degree in vertical. Within the scope of these arbitrary angles, the images are without any distortion.
3. Adopting 4layer PCB monolithic grand scale integration circuit design, It optimized the space layout of each electronic component and improved the stability of the screen system.
4. Using advanced high peed SMT technology. It solved the problem of heat dissipation caused by high density in design.
Adopting the special and advanced driving technology, the screen is without any distortion.
PRODUCT DESCRIPTION
1.Clear picture without flicker and distortion
2.Low Consumption , Stable Performance ,Highly Durable
3.Within one year after consignment from factory.
4.Wide Viewing Angle, Seamless Splicing ,High-definition ,Mute Design ,High Contrast
| Specitication: | P5 LED Panel Specification |
|
| NO: | Product Name | Specification |
| 1 | Pixel Pitch | 5mm |
| 2 | Pixel Configuration | 1R1G1B/SMD3528 |
| 3 | Density | 40,000 pixel/m2 |
| 4 | Moduel Size(L×W)mm | 160mm×160mm |
| 5 | Cabinet Size(L×W×H)mm | 640mm×640mm×130mm |
| 6 | Module Resolution | 32×32 |
| 7 | Cabinet Resolution | 128×128 |
| 8 | Driving Method | 1/8 Scan |
| 9 | Driving IC | MBI5024 |
| 10 | Brightness | 1800cd/ |
| 11 | Contrast | 1000:01:00 |
| 12 | Brightness Adjustment | AC 85-264V |
| 13 | Power Consumption | Max Power:<1000W |
| 14 | Average power: <500W |
| 15 | Cabinet Weight | <14kg |
| 16 | Color Temperature | 3200K-9300K |
| 17 | Horizontal Viewing Angle | 120º |
| 18 | Vertical Viewing Angle | 90º |
| 19 | Signal Processing | 10 or 14bit |
| 20 | Grey Processing | 1024×1024×1024
16834×16834×16834 |
| 21 | Control Distance | Cable100m,Multimode500m,Single mode
2km |
| 22 | Frame Frequency | 60 Hz |
| 23 | Refresh Rate | >600Hz |
| 24 | Control Mode | Synchronous/Asynchronous |
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve
|
| 26 | Users can choose the recommended curve, also can be adjusted according to actual situation
|
| 27 | MTBF | ≥50000 hours |
| 28 | Life Span | 100,000 Hours |
| 29 | Operating Temperature | Working : 35 - 90 ºC |
| 30 | Storage : 10 - 99 ºC |
| 31 | Environment Temperature | -30ºC to 60ºC; humidity Rh10% to 95% |
| 32 | Remote Control | Can realize remote control,For the possibility of potential failure logging, and send alarm signal to the operator (need to customize)
|
| 33 | Self-checking Technique | LED a single point of self-inspection, communications test, power test, temperature monitoring (need to customize)
|
| 34 | System Operating Platform | WindowsNT,Windows2000,WindowsXP,Windows7 |
| 35 | Power Supply | AC 85-264V |
| 36 | Protection | waterproof, dustproof, high temperatureproof,anti-corrosion, anti-burning,anti-static,shake proof,thuner-proof,the system with smoke alarm and temperature alarm function. (need to customize) |
PACKAGING&SHIPPING
1)Within 15-27 days after receiving deposit.
2)Wooden case, plywood case and flight case choosen by customers.
OUR SERVICE
1)We guarantee all our display, modules, spare parts for ONE years after consignment from factory.
2)We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3)After warranty, we also can offer you the parts for replacement at our bottom price.
4)After sales, if you have any problem about our product, you can inform us by e-mail, we will reply you at once when we get it and offer you a good solution to solve the problem.
