| Prod Model: |
YB19264K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Character Dots: |
192*64 |
| Visual Angle: |
6h/12h |
| Voltage: |
5V/3.3V |
| Color: |
Blue, Yellow, Green, Gray |
| Contrast: |
Adjustable |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Response Time: |
1ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description
China guangdong, shenzhen alex electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises.
Products cover the TN, HTN, the STN, FSTN, TFT LCD series products, including COB, TAB, COG, etc. Series of liquid crystal display module.The main products are: character lattice, the graph lattice, character and period of code standard or non-standard modules, and can customize according to the requirements of your company processing all kinds of liquid crystal display module.Products can be widely applied to the temperature and humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter;The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie;Massager, treadmill, fat instrument;Air conditioning, microwave ovens, remote control;Learning machine, electronic dictionary, calculator;Nc tanker, industrial control;Game consoles, perpetual calendar, watches, instruments and meters, finance, communications, health care instrument and with the domestic and foreign many well-known manufacturers to establish a long-term good cooperative partnership.
The company has the first-class high quality talent team of science and technology and scientific management mode and perfect pre-sale and after-sale service system.Technology development ability;Development cycle is short, fast respond to customer feedback.Companies with advanced technology advantage, strong human resource base, in the fierce competition keep advantage. Good reputation has won the broad masses of users groups.
"Quality first, strives for perfection," take honestly as industry, sincere cooperation "!
The company in a professional design, development, customization, processing!Now emphatically recommended products: TFT1.5 inch LCD display advantage supply

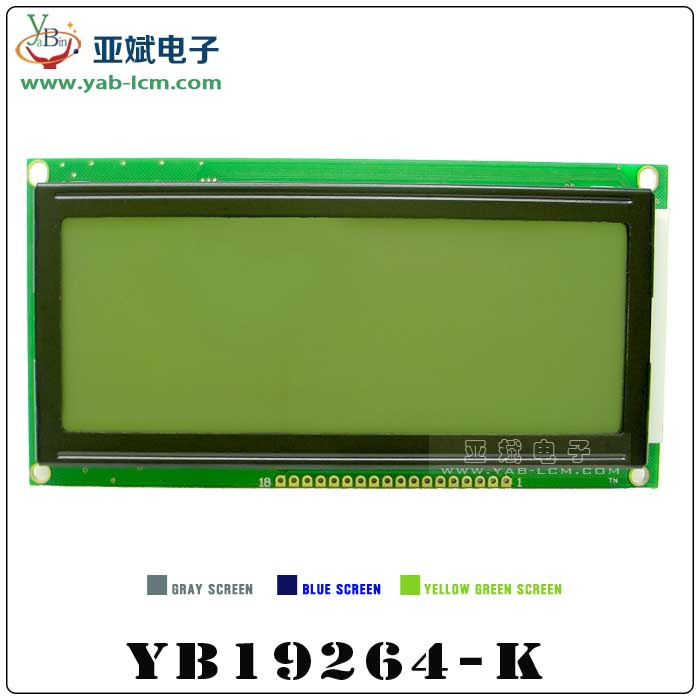

| 19264K |
|
| Gross Weight (kg) |
|
| Manufacturer | YaBin |
| Series Number | YB19264K |
| Display Format | 192*64Dots |
| Outline Dimension | 121.3*62*12.5mm |
| Visual Area | 104*39mm |
| Active Area | 97.486*32.462mm |
| Dot (Pixel) Size | 0.458*0.458mm |
| Dot (Pixel) Pitch | 0.508*0.508mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bitParallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Grey |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20ºC~70ºC |
| Storage Temperature | -30ºC~80ºC |
| If accept customized | Yes |
| RoHS Compliance | Yes |
| The interface definition |
| ITEM | SYMBOL | LEVEL | FUNCTION |
| 1 | GND | 0V | Power Ground |
| 2 | VDD | 5.0V/3.3V | Power Supply For Logic |
| 3 | RS | H/L | H: Data L: Command |
| 4 | RW | H/L | H: Read L: Write |
| 5 | E | H.H→L | Enable Signal |
| 6-13 | DB0-DB7 | H/L | Data Bus |
| 14 | /CS1 | L | Chip Selection A |
| 15 | RST | L | Read signal |
| 16 | /CS2 | L | Chip Selection B |
| 17 | /CS3 | L | Chip Selection C |
| 18 | LEDA | 5.0V/3.3V | Power Supply For LED Backlight |
