| Prod Model: |
PB3N190B2EM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
190mm Small Ec Electric Fan |
| Category: |
Ventilation Equipment |
| Motor Type: |
Ec Brushless External Rotor Motor |
| Speed Control: |
0~10VDC/PWM |
| Insulation Class: |
B |
| Operating Temperature: |
-25~+60 |
| Weight: |
1.3kg |
| Electric Current Type: |
AC |
| Mounting: |
Free Standing |
| Certification: |
CE |
| Blade Material: |
Propylene with Glass-Fiber Reinforced |
Product Description

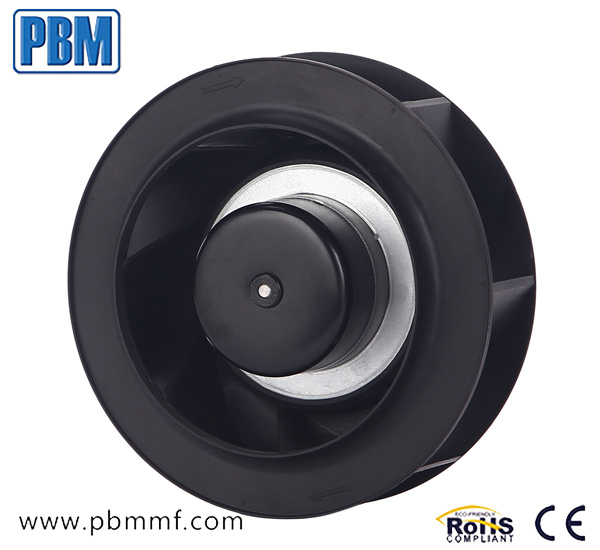

Name: 190mm Small Ec Electric Fan
PBM Motor and Fan is a China mainland manufacturer and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. Our main products are EC fans, including EC axial fans, EC centrifugal fans and EC blowers. We do both AC and DC current type. And EC Motor is the core technology of our products.
Eletronically Commutated Motors(EC Motors)also known as Brushless DC Motors(BLDC) are synchronous electric motors powered by direct-current(DC) electricity and having electronic commutation systems,rather than mechanical commutators and brushes.The current-to-torque and voltage-to-speed relationships of BLDC motors are linear.
PBM fans are widely used in many fields. For example, axial fan for telecom, backward curved centrifugal fan for air exchanger,(inline duct fan)hydroponic products and FFU, forward curved centrifugal fan for air purifier and air conditioning,blower for kitchen.
Fan type: Ec Centrifugal Fan with AC input
Rated voltage: 230VAC
Frequency:50/60Hz
Operating Voltage:200~277VAC
Low-Start Voltage: ≤199VAC
Rated current: 0.81 A
Rated power: 100W
Rated speed: 3,570 RPM
Airflow: 468CFM/795M3/H
Air pressure: 2.74inH2O/686Pa
Noise: 72 dBA
Weight: 1.3kg
Life Expectance: 50,000Hours(L10) at 40ºC room, humidity 15%~65%RH
Direction of rotation: Anti-clockwise
Direction of air flow: All around
Insulation class: B
Insulation resistance: 50 Mega Ohm minimum at 1000VDC between frame and (+) terminal
Motor Protection:Locked rotor protection, Maximum current under locked rotor, Reverse polarity protection, Over voltage protection and Soft start.
Speed Control: Control input 0 to 10V DC/PWM, tach output
Protection Type: IP44
Voltage output:+10 VDC(can be used as speed control input voltage or FG signal pull-up voltage and need to be circumscribed in series with a pull-up resister)
Dielectric strength:10mA maximum at 1500VAC 50Hz five second between frame and (+) terminal
Signal output:FG(Frequency Generator)
Operating temperature: -25 to +60° C
Storage temperature: -40 to + 75 ºC
Operating Humidity: 5% to 90% RH
Storage Humidity: 5% to 95% RH
Test: Drop test, Vibration test, Shock test, Dustproof test, Waterproof test, ROHS
Standards:
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2 and EN 61000-4-3
| Model | Motor Type | Bearing
System | Rated
Voltage | Frequency | Rated
Current | Rated Power | Rated
Speed | Air Flow | Air
pressure | Noise
Level |
| Part NO. | Type | B / S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA |
| PB3N190B2EM | BE72AC-T | BALL | 230 | 50/60 | 0.81 | 100 | 3570 | 795 | 686 | 72 |
PBM Motor and Fan is a China mainland manufacturing and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, Investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. We are able to stay at the forefront of EC motor and fan market and offer high quality & economical products, to many of the worldwide leading ventilation & refrigeration Original Equipment Manufacturers.
Our engineers have rich experience in supplying cost effective motor and fan solutions to exceed customer' S expectations. We understand that each customer' S application is different, and by understanding our customer' S needs in site allows us to offer the most cost effective solution.
From 2010, with China motor manufacturing industry was losing its advantage in material and labor cost, PBM Motor and Fan started to offer consulting service to abroad EC motor manufacturers who expected to organize motor assembly in their own countries for EC technology input and cost down.
Protecting our World with Energy Efficient Motor Solutions' Is our goal in an attempt to make tomorrow a greener & healthier world.
Please feel free to contact our Product Support or Sales Department to discuss your application requirements.
