| Prod Model: |
AMG-19OPVA02T1-V1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Touch Screen(Optional): |
Capacitive Touchscreen |
| Display Resolution (Pixel): |
1280X1024 |
| Response Time(Typ.Tr+TF): |
5ms |
| Brightness: |
300 |
| Viewing Angles (Cr =10): |
160 (H); 160 (V) |
| Type: |
TFT |
| Aspect Ratio: |
5:4 |
| Feature: |
LED Backlight Display |
| Screen Size: |
19" |
| Interface Type: |
VGA |
| Application: |
ATM/Kiosk/Gaming Machine/Advertising/Media Player |
Product Description
Specifications:
Screen Size: 19.0"
Active Display Area (mm): 376.32(H) x 301.06 (V)
Pixel Pitch (mm): 0.294 (H) x 0.294 (V)
Display Mode: Normally white
Display Resolution (pixel): 1280x1024
Contrast Ratio: 800: 1
Touch screen(optional): Capacitive Touchscreen
Brightness (CD/): 300
Backlight: CCFL/LED
Viewing Angles (CR =10): 160 (H); 160 (V)
Response Time(Typ. Tr+Tf): 5ms
Signal Connector: VGA/DVI
Power Consumption: DC 12V / AC 100-240 V
Dimension(VxHxT): 433.4x358.5x65.9
Operating Temperature: 0~50° C
Storage Temperature: -10~70° C
Relative Humidity: 5(%RH)~90(%RH)
Description:

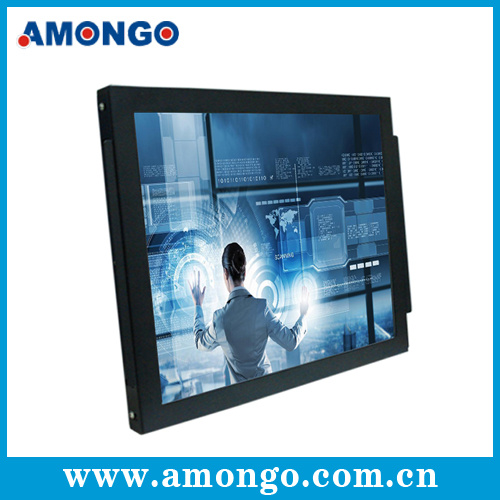

OP with19"LCD, 300cd/m² 1280x1024 Pixels LCD Monitor,
Capacitive Touchscreen, Black Color, VGA, DVI, USB OR RS232
Model Name
AMG-19OPVA02T1-V1
Screen Size
19.0"
Active Display Area (mm)
376.32(H) x 301.06 (V)
Pixel Pitch (mm)
0.294 (H) x 0.294 (V)
Display Mode
Normally white
Display Resolution (pixel)
1280x1024
Contrast Ratio
800:1
Touch screen(optional)
Capacitive Touchscreen
Brightness (CD/M∧2)
300
Backlight
CCFL/LED
Viewing Angles (CR =10)
160 (H); 160 (V)
Response Time(Typ.Tr+Tf)
5ms
Signal Connector
VGA/DVI
Power Consumption
DC 12V / AC 100-240 V
Dimension(VxHxT)
433.4x358.5x65.9
Operating Temperature
0~50°C
Storage Temperature
-10~70°C
Relative Humidity
5(%RH)~90(%RH)
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.
Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
