| Prod Model: |
PM190DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diagonal Size: |
19" |
| Aspect Ratio: |
16:9 |
| Pixel Pitch: |
0.1(H) X 0.3(W) |
| Response Time: |
<5ms |
| Resolution: |
1366X768 |
| Contrast Ratio: |
1000:1 |
| Brightness: |
300CD/M2 |
| Activve Display Area: |
409.8 (H) X 230.4(V) |
| Display Color: |
1.06b |
| Viewing Angle: |
H:178 Degree V: 178 Degree |
| Screen Size: |
15-20 Inches |
| Remote Control: |
Without Remote Control |
| Interface Type: |
USB |
| Screen Technology: |
LCD |
| Type: |
Standalone Version AD Player |
| Application: |
Bus/Car AD Player |
| Installation: |
Wall-Mounted |
| Customized: |
Customized |
Product Description

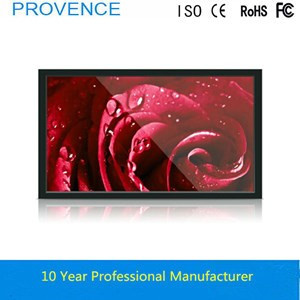

19 Inch HD LCD Digital Signage display at airport
Integration with video, pictures, text, web pages, audio playback function,
Major application sectors: Shopping malls, Hotel & Resrots, Educaiton insittutes, Redearch institutes, Real Estate Agencies, Industrial sector, Sports, Service sector, Entertainment Fashion Industries etc.
1. Support 1920X1080 HD video decoding.
2. Built-in 4G memory
3. Support SD card expansion up to 32G.
4. Video, pictures Mixture no black, flash switching.
5. On/off timer switch, according to a daily or weekly settings.
6. Variety of image transition mode, transition effects and picture playback interval time can be set freely by software.
7.100 playlists, according to a preset time to play.
8. Video, pictures automatically rotate, without using other tools for editing.
9. Support horizontal and vertical screen arbitrary split screen, you can achieve 1 video, 4 pictures, 1 marquee, 1 logo, 1 date, 1 time, 1 background-exist.
10. U disk broadcast programs, U disk can also be copied to the built-in memory programming for playback.
11. Encryption mode can be set by programming tools and terminal settings to achieve the program encryption, It will not play without the correct key.
12. Display the playlist by USB disk.
13. Support for subtitles rolling: Font color, font size, rolling speed settings defined by the user
14. Support USB upgrade the system and screen parameters.
15. Designed and engineered for 24/7 operation. Long lifetime: >50, 000 hours.
16. Energy saving, very eco-friendly low power.
|
Diagonal Size |
19" |
|
Aspect Ratio |
16:09 |
|
Pixel Pitch |
0.1(H) x 0.3(W) |
|
Response Time |
5ms |
|
Resolution |
1366x768 |
|
Contrast Ratio |
1000:1 |
|
Brightness (cd/m2) |
300d/m2 |
|
Active display area |
409.8 (H) x 230.4(V) |
|
Display Color (Max) |
16.7M |
|
Viewing Angle(U/D,L/R) |
H:170 V:160 |
|
Support data |
|
|
Video format |
MPEG1\MPEG2\MPEG4\H.264\WMV |
|
Audio format |
MP3 |
|
Image format |
JPEG\BMP\PNG |
|
Audio |
|
|
Speaker |
2*2W |
|
Storage |
|
|
SD card |
Max 32G |
|
USB interface |
USB2.0 * 1 |
|
Memory |
DDR 128MB |
|
Flash Memory |
FLASH 4G |
|
POWER |
|
|
Power supply: |
AC 100~240V(+/-10%)/50-60Hz |
|
Power consumpiton: |
≤60W |
|
Stand-by: |
≤1W |
|
Operation/Sotrage |
|
|
Operating Temperature |
0 0 C~40 0 C |
|
Operating Humidity |
10%~90% |
|
Storage Temperature |
-20 0 C~60 0 C |
|
Storage Humidity |
0%~90% |
|
Safety and Ergonomics |
|
|
Quality standards: |
ISO9001,CCC,FCC,CE,ROHS |
|
Environmental standards: |
All components,accessories and packing are compliant with international standards. |
|
Optional Function |
|
|
IR body sensor |
GPRS function |
|
Synchronization function |
RFID function |
|
Accessories |
|
|
Wall mount(or stand set) * 1 |
Remote control * 1 |
|
User manual *1 |
Power cord * 1 |
|
Operation |
Keyboard, Remote control |
|
Material |
Metal |
|
Color |
Silver frame, Black panel |
|
Mechanical Spec |
|
|
Hole for wall mount: |
/ |
|
NW/GW: |
4.5kg/6kg |
|
Dimension(W/O stand): |
530*355*42mm |
|
Packing Dimension (1 pcs/ctn): |
680*580*150mm |
|
Technical Specification |
|
|
OSD language |
Simplify Chinese, English |
|
Horizontal Frequency |
20 ~ 82KHz(Anolog&Digital) |
|
Vertical Frequency |
55~75Hz |
PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...
Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.
PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
