| Prod Model: |
AMG-19PPC02T2-V1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
300nits |
| Contrast Ratio: |
800:1 |
| Viewing Angle: |
160(H);160(V) |
| Touch Screen(Optional): |
IR Touchscreen |
| Support Color: |
16.2m/262k Colors |
| Display Type: |
All-in-One |
| Type: |
TFT |
| Application: |
Kiosk, Gaming, Industrial Control |
| Aspect Ratio: |
5:4 |
| Widescreen: |
Not Widescreen |
| Feature: |
All-in-One |
| Optimum Resolution: |
1280x1024 |
| Screen Size: |
19" |
| Interface Type: |
VGA |
| Response Time: |
30ms |
| 3D: |
Not 3D |

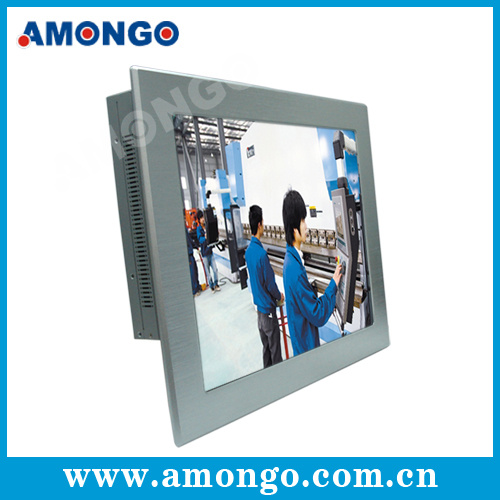

Product Description
Specifications:
Display Size(Diagonal):Color TFT LCD/19"
Max Resolution:1280x1024
Support Color:16.2M/262K Colors
Luminance(CD/M2):16.2M/262K Colors
Contrast Ration:800:1
Pixel Pitch(mm):0.376x0.301
Viewing Angle:160(H);160(V)
Type:Infrared,(USB/RS232)
Use connector:4pin USB2.0
Input Voltage:AC 100~240V 4A 47~63Hz
Out Rating:160W(max)
Ouput Voltage:+12V 10A
Operating Temperature:0~50°C
Storage Temperature:-10~60°C
Relative Humidity:5(%RH)~90(%RH)
Product certifications:
Products through the: CCC, CE, CB, FCC, RoHS, ISO, IEC, CQC, TCO, UR certificates
|
Processor System |
CPU |
Intel Core Duo T2500(2.0GHz/2M)CPU |
|
Memory |
1GB DDR II SDRAM of system memory |
|
HDD |
Seagate 2.5" 160G 5400RPM. SATA |
|
CD/DVD-ROM/RW |
Optional |
|
PS/2 port |
PS/2 mouse and keyboard port |
|
VGA port |
1xVGA port |
|
COM port |
Default x 2 COM or above x6 COM (optional) |
|
USB 2.0 ports |
Default x 6 USB or above x8 USB (optional) |
|
Ethernet ports |
2x10/100/1000Mbps Ethernet interface(Gigabit optional) |
|
Audio |
MIC-IN,Line-out |
|
LCD Display |
Display Size(Diagonal) |
Color TFT LCD/19" |
|
Max Resolution |
1280x1024 |
|
Support Color |
16.2M/262K Colors |
|
Luminance(CD/M2) |
300 |
|
Contrast Ration |
800:1 |
|
Pixel Pitch(mm) |
0.376x0.301 |
|
Viewing Angle |
160(H);160(V) |
|
Touch screen(optional) |
Type |
Infrared,(USB/RS232) |
|
Power supply |
Use connector |
4pin USB2.0 |
|
Input Voltage |
AC 100~240V 4A 47~63Hz |
|
Out Rating |
160W(max) |
|
Ouput Voltage |
+12V 10A |
|
Temperature Range |
Operating Temperature |
0~50°C |
|
Storage Temperature |
-10~60°C |
|
Relative Humidity |
5(%RH)~90(%RH) |
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.
Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
