| Prod Model: |
WH-VI-18 |
| Application: |
Heating, Annealing, Hardening, Quenching |
| Parts: |
Mainframe, Transformer, Inductor |
| Core Technology: |
IGBT Module |
| Warranty: |
12 Months for Free Parts; Long Life for Free Fix |
| Higher Heat Temperature: |
2800 Celius |
| After-Sale Service: |
One Year Warrenty, Long-Term Technology Support |
| Language Support: |
English, Chinese, Russia, French etc. |
| Continuous Load Rate: |
100% 24hours Surely with Cooler |
| Number Of Free Coils: |
2 Pieces Free as Gift |
| Fob Port: |
Qingdao, Shanghai, Ningbo etc., Negotiable |
Product Description
18KW Induction Heating Welding System For Electrical Kettle Bottom Applications:Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
A. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
C. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
D. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.
Advantages:1. IGBT Invertor technology, high-efficient conversion,LC series resonance
2. Light weight, small size, modular design, friendly user interface with digital on screen display
3. Environmental protection,easy operation, low labor intensity
4. Low energy comsumption, energysaving 15%-30% compared to SCR technology
5.Heating rapidly, heating evenly, no oxide layer, and using timer to make sure producing high quality product with high and good consistency,perfect protecting function of over temperature, over current, over/low voltage temperature, water shortage,phase failure etc. safety and reliability
6. 100 percent success rate of start-up, power factor always over 95%

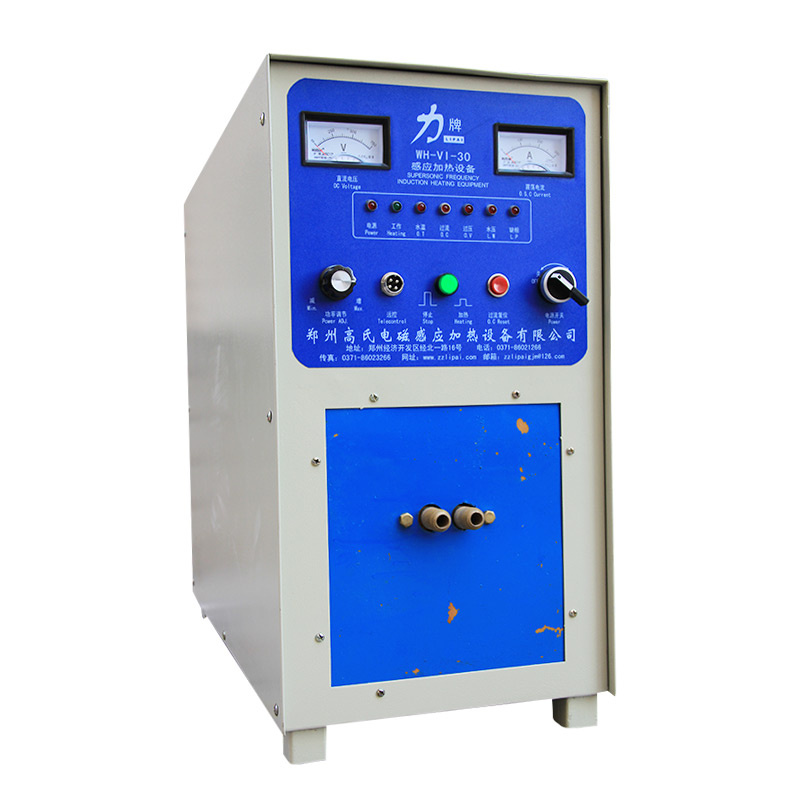

Photo Show:
Main Characteristics:1. Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency;
4. Simple to install, Installation can be done by unprofessional person very easily;
5. Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
Parameters:| Model | WH-VI-16 | WH-VI-30 | WH-VI-40 | WH-VI-50 | WH-VI-60 |
| Worker power | Single phase 220V/50Hz | Three phase 380V/50Hz | Three phase 380V/50Hz | Three phase 380V/50Hz | Three phase 380V/50Hz |
| Working voltage range (AC) | 180V~250V | 342V~430V | 342V~430V | 342V~430V | 342V~430V |
| Max input current | 42A | 55A | 62A | 75A | 90A |
| Max output power | 16KW | 30KW | 40KW | 50KW | 60KW |
| Oscillation frequency | 10-80KHz | 10-60KHz | 10-40KHz | 10-40KHz | 10-40KHz |
| Efficiency | 100% | 100% | 100% | 100% | 100% |
| Continuous load rate | 100% | 100% | 100% | 100% | 100% |
| Cooling water pressure | 0.1mpa | 0.1-0.3mpa | 0.1-0.3mpa | 0.1-0.3mpa | 0.5-0.7mpa |
| Host weight | 20kg±5% | 45kg±5% | 40kg±5% | 55kg±5% | 65kg±5% |
| Transformer weight | ------------ | ------------ | 29kg±5% | 35kg±5% | 50kg±5% |
| Host dimensions(L*W*H)mm | 500*240*450 | 580*280*510 | 460*360*630 | 590*450*780 | 590*450*780 |
| Transformer dimensions (L*W*H)mm | ------------ | ------------ | 320*320*310 | 420*355*450 | 420*355*450 |
| Temperature protection | 50 ºC | 50 ºC | 50 ºC | 50 ºC | 50 ºC |
Packing and Delivery:
Company profile:Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co., Ltd adopt German original Siemens IGBT power module; 1000-3000 square meters; yearly output: 3600 sets; total annual sales volume: USD0.5 million - USD2.0 million; two production lines; employees number: 51-100 people.
Our products sells well in Domestic market, Mid East, Southeast Asia, South Asia, Eastern Asia, America, Europe, Africa, Oceania etc.
Our service:1. Reply your inquiry in 24 working time
2. Exerienced staffs answer all your questions in fluent English
3. Customized design is available
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs
5. Special discount and protection of scales are provided to our distributor
After-sale service:1. One year free parts replacement
2. Long-term technology support and installation guide
3. Only charge little money for parts replacement when warranty expired
FAQ:1. What's your MOQ ?
At present we haven't strict policy for this,so welcome orders with any quantity.
2. Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.
3. We are not professional for operation and installation of your machine......
While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and video sent to you are enough.What's more,we have professional engineers and they can solve all questions
4. How about packaging ?.......if machine damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement
5. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our machine have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference.
Catalog and more technical information, Please call or write to us freely.
Contact: Sandra
Phone: +86 18839779312
Website: www.induction-heatings.com
Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co., LtdWe looking forward to your inquiry and email, thank you! ^_^
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
