| Prod Model: |
jlf-SS-180L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
0.4mm SUS304 Stainless Steel |
| Outer Tank: |
0.4mm SUS201 Stainless Steel |
| Capacity: |
180L |
| Tube Quantity: |
18 Vacuum Tubes 58*1800mm |
| Package: |
Cartons with Foam |
| Angle: |
27'-45' |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
ISO14001 |
| Max. Capacity: |
180L |
Product Description
Avantages:
1> CE, ISO. 5 years warranty, long life span
2> Most competitive price and high quality
3> Quality assurance comply with ISO 9001-2008
4> Product quality in compliancee with CE
5> Fast delivery and rich export experience
Detail:

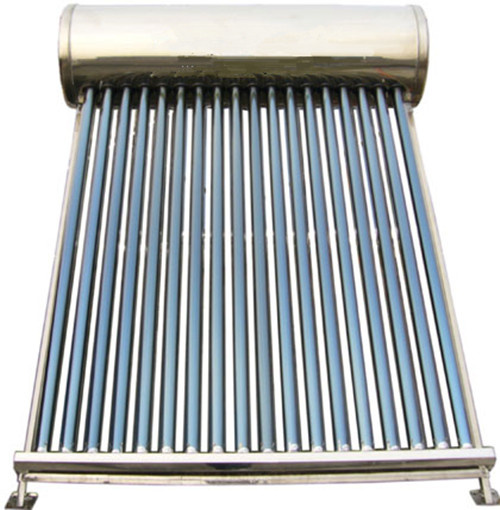

| Description | Non-Pressurized Solar Water Heater |
| Material of out tank | 0.4mm SUS201 stainless steel |
| Material of inner tank | 0.4mm SUS304 food grade stainless steel |
| Tank insulating layer | 55mm high-density polyurethane foamed |
| Diameter inner/out tank | 420/310mm 470/360mm |
| Electrical Heater | 1500W/2500W/3000W, 220V |
| Inlet and outlet hole | Male 1/2, 3/4 |
| Max pressure | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤ 0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | ε h=0.04-0.06(80C± 5C) |
| Idle sunning property parameters | Y=220~260m2. C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2. C) |
| Bracket: | stainless steel |
| Structure of tank: | Usually holes for air vent, overflow, water inlet and outlet, electric heater; or according to your demand |
| welding: | Argon arc welding |
| fastening pieces: | stainless steel screw |
| Seal material | stabilized high temperature silicone |
Accessories:
1. Assistant tank: 5L
2. Controller
3. Electrical heater: 1.5/2/2.5kw
Tube details:
1> structure: All-glass double deck co-axial structure
2>Tube size : 58*1800mm, or 47*1500mm
3> material: High orosilicate 3.3 glass
4> diameter : Ø 58± 0.7mm; Glass thickness 1.6± 0.15mm
5>Inner tube diameter: Ø 47± 0.7mm; Glass thickness 1.6± 0.15mm
6>Absorptive coating property:
*Structure: Cu/SS-ALN(H)/SS-ALN(L)/ALN
*Sediment method: Three targets magnetron sputtering plating
*Specific absorption: 0.93-0.96(AM1.5)
*Emission ratio: 0.04-0.06(800C± 50C)
*Vacuum tightness: 5.0× 10¯ ³ PA
*Idle sunning property parameters: 260-300 m² . C/KW
*Average heat loss coefficient: ULT=0.4~0.6W/(M 2.0 C)
*Resistant Hail≤ 25mm
*Useful life15 years
