| Prod Model: |
AMG-17IPSS01T1-V1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Resolution (Pixel): |
1280X1024 |
| Contrast Ratio: |
1000:1 |
| Touch Screen(Optional): |
IR Touch Screen |
| Brightness(CD/M2): |
350 |
| Backlight: |
LED |
| Display Color: |
16.7m |
| Viewing Angles (Cr=10): |
170(H) ; 160(V) |
| Brand: |
Amongo |
| OEM/ODM: |
China |
| Aspect Ratio: |
5:4 |
| Screen Type: |
Infrared |
| Screen Size: |
17" |
| Application: |
ATM/Kiosk/Gaming Machine/Advertising/Media Player |
| Customized: |
Optional |
| Resistive Touch Screen Type: |
Optional |
Product Description
Amongo Display Technology Co., Ltd-----Your Dispaly Expert
Features:
1. Top brand in industrial displays
2. VGA, DVI inputs with Wide operating temperature from -30 to 80 degrees
3. Strong and professional R&D team.
4. Any size from 5" to 65" are available supporing any existing OS system. More than 350 LCD models had been developed.
5. Optional touchscreen: 4-wire/5-wire Resistive, Infrared, SAW, Scap, Pcap.
6. High brithness, Sunlight readable, light sensor, IP65 optional.
7. Custom-made service is available.
Application:
1: ATM
2: Kiosk indoor or outdoor
3: Gaming machine
4: Advertising
5: Medical treatment
6: Media player
7: Railway
8: Digital Signage
9: Oil/Gas
10: machine tool equipment
11: Other industrial control area

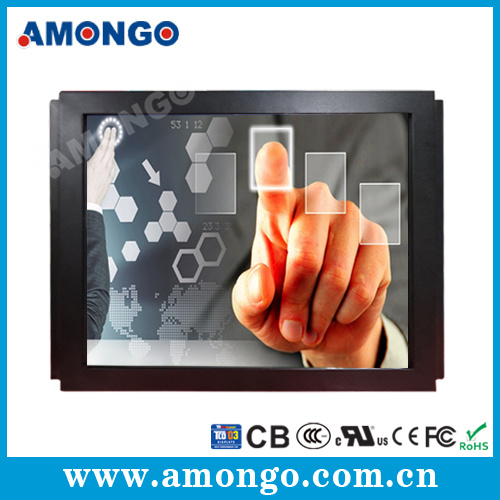

Product image:
Products through the:
CCC, CE, CB, FCC, RoHS, ISO, IEC, CQC, TCO, UR certificates
|
Model Name |
AMG-17IPSS1T1-V1 |
|
Screen Size |
17" |
|
Active Display Area (mm) |
337.92(H)x270.336(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
1280x1024 |
|
Contrast Ratio |
1000:1 |
|
Display Color |
16.7M |
|
Brightness (CD/M∧2) |
350 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
170 (H) ; 160 (V) |
|
Response Time(Typ.Tr+Tf) |
5ms |
|
Touch screen(optional) |
IR Touch Screen |
|
Signal Connector |
VGA,DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
441X323X50 |
|
Operating Temperature |
-30~80°C |
|
Storage Temperature |
-30~80°C |
|
Relative Humidity |
5(%RH)~90(%RH) |
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.
Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
