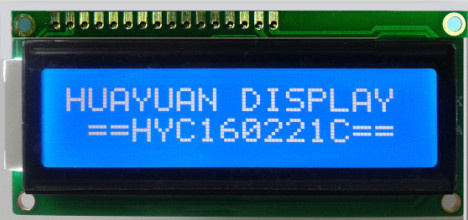

16X2 LCD Display with 80*36 mm (STN Blue mode)

Name: 16X2 LCD Display with 80*36 mm (STN Blue mode)
Brand: ec-portal.com
SKU: 776417785
Availability: InStock
Rating: 4.5 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	HYC160221C-VB
Usage:	Small-sized LCM
Digital LCD Module Type:	Metering Module

Product Description

Module No.: HC160221C-VB
LCD type: STN Blue
Polarizer type: transmissive, negative
Resolution: 16*2 lines
Outline Size: 80*36*14 mm
View Area: 64.6*16 mm
Active Area: 56.2*11.5 mm
Dot pitch: 0.60*0.70 mm
Dot size: 0.55*0.65 mm
LCD driving method: 1/16 Duty, 1/5 Bias
Operating temperature: -20 to 70c
Viewing direction: 6:00 O'clock
Backlight type: LED
Backlight color: White
Controller: ST7066 or Equivalent

Remark:
Various LCD Display Type Available
Various Backlight Color Available
Various Temperature Range Available
Customized LCD Panels / Modules Available

Shenzhen Huayuan Display Co., Ltd. Was founded in 2004. In addition to electronics processing, huayuan LCD is dedicated to the designing, manufacture and sales of LCD and LCM. We also set up branch offices in Beijing, Hangzou, Chengdu and Shanghai in order to serve the domestic market better.

The main applications of our products are as follows: Autos electronics, electric powers, petrol machines, medical equipments, elevator controllers, meeting systems, POS machines, etc.

With the advantages combinations of geographic location, marketing environment and human resources, we sincerely seek to provide the best products and services to our customers at home and abroad for the mutual benefits and success!
