| Prod Model: |
TG160128B-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
160X128 Dots |
| Display Mode: |
Stn, Transmissive, Negative, Blue |
| Outline Dimension: |
129.0X102.0mm |
| Viewing Area Size: |
101.0X82.0mm |
| Certificate: |
RoHS, ISO9001:2008 |
| Warranty: |
12 Months |
| Backlight: |
White/ Side Light |
| Type: |
Graphic |
| Display Technology: |
STN |
| Usage: |
Small-sized LCM |

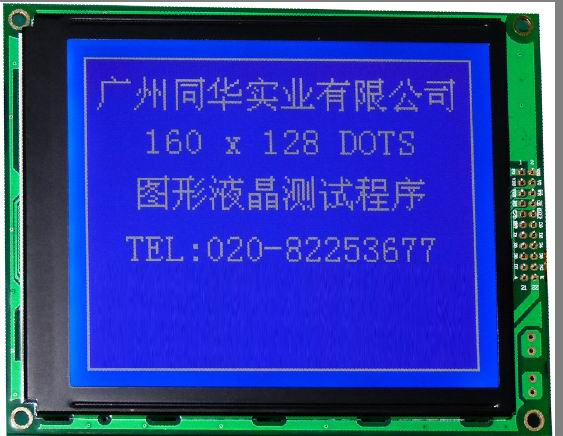

Product Description
Construction SMT
Display Format 160x128 dots
Display Type STN, Transmissive, Negative, Blue
Controller T6963C or equivalent controller
Interface 8-bit parallel interface
Backlight white/ side light
Viewing Direction 6 O'clock
Driving Scheme 1/128 Duty Cycle, 1/12 Bias
Power Supply Voltage 5.0 V
VLCD Adjustable For Best Contrast 18.0 V (VOP.)
Operation temperature -20°C to +70°C
Storage temperature -30°C to +80°C
Packaging & Shipping
50pcs/ctn,10kgs/ctn;Carton size: 38x28x28cm;0.03CBM
Our Services
Factory direct sales LCD display in variety display color and size
We can also design and manufacture the LCD panel of TN, STN, FSTN, color STN
And some other special types, such as LCD module of COB, COF, TAB and COG.
Quality Control
Established in 1995, Guangzhou Tinsharp Industrial Co., Ltd. is one of the major manufacturers of Liquid Crystal Displaying (LCD) products in China. We specialize in design, manufacture and sale of LCD and LCD modules.
Having accumulated precious experience in this field, our production capacity and expertise have been growing sharply along with the market share. With the support of our professional and devoted work team specialized in both R&D and total quality control, we are able to supply cost-effective and quality guaranteed products in the LCD and Liquid Crystal Modules (LCM) areas. Moreover, both standard series and customer-tailored products are available.
Specifically, the main products include:
1) Character and graphic LCD modules
2) Segment LCD modules
3) TN/STN/FSTN LCD panels
4) Customized LCDs/LCD Modules
Our products have been widely used in many fields, such as measuring instruments, electrical appliances, and communication terminals. About one third of our products are selling well directly and indirectly in the American, East Asian, and European markets.
