| Prod Model: |
FS1-40. E1Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Material: |
Pure Copper |
| Size: |
16 Inch |
| Grill Material: |
Iron |
| Motor Housing: |
with Strong Plastic |
| Motor Size: |
Standard Motor |
| Packge: |
Standard Package |
| Net Weight: |
6kg |
| Gross Weight: |
6.5kg |
| Screw Material: |
Iron |
| Certififate: |
CE,CB,ISO,UL,RoHS. |
| Type: |
Bathroom Fan |
| Power Supply: |
Electric |
| Application: |
Household |
| Remote Control: |
Without Remote Control |
| Timer: |
With Timer |
| Certification: |
CB |
| Speed: |
3 Speed |
| Power: |
<100W |
| Installation: |
Pedestal |
| Material: |
Plastic, Iron, Pure Copper |
Product Description

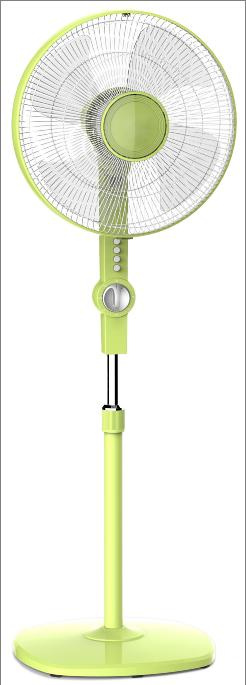

16 inch Floor Fan With 60 mins timer and CB standard(FS1-40.E1Q)
| Model | FS1-40.E1Q |
| Size | 16 inch |
| Blade | AS/PP |
| Grill | iron |
| Motor housing | strong plastic |
| Screw material | iron |
| Voltafe | 220-240V,50HZ |
| Fan speed | low-middle-high |
| 3 wind modes | Normal-Natural-Sleeping |
| Timer | 60 mins timer |
Technical Specifications
| Temperature rise | under 75K |
| Fan speed | can reach 7.0M/S |
| Wind throw | Around 52CBM |
| RPM | can reach 1350RPM |
| Motor | 100% copper winding |
| Motor stator | 71x25MM.71x20MM.71x16MM |
| Grill thickness | 1.5MM |
| Grill stan | 125-spoke line |
Package Details
| Item No. | Description | Net weight | Gross weight | QTY/CTN | QTY/20' | QTY/40'GP | QTY/40'HQ |
| FS1-40.E1Q | stand fan | 6KG | 6.5KG | 1 PCS | 616PCS | 1200PCS | 1430PC |
Company Profile:
20Years Professional Manufacturing Home Appliance
Taking experience from 20 years in fans and heaters, engineers and industrial designers develop new products with innovative functions and innovative design.
The daily contact with customers from the entire world brings to the engineers and to the designers new ideas that are studied and transformed in applications and products.
Investment's capacity allows the company to develop moulds and tools and make production in the more eligible production plan.
Our team is in touch with the most important Laboratories and Customers can find in our team deep competences about International Standards.
OEM customers can enjoy our graphic service to customize our products as members of customer's product lines.
Factory are located in Foshan-Shunde, which is in China one of the most industrialized area for small electrical appliances.
The strategic location allows our designers and engineers to be constantly in contact with production.
A team of competent inspectors warrants quality.
Based on AQL standards, they are on production line when production takes place.
Container loading is carefully controlled until sealing.
Financial, sales and shipping operations are managed in Shunde office by an expert team cooperating.
