| Prod Model: |
BE-9816FD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Compression Format: |
H.264 |
| Display Spilt: |
1/4/9/16-Channel |
| Hard Disk Storage: |
Support 1 SATA HDD, Capacity to 2tb |
| Recording Mode: |
Manual/Timer/Motion |
| Alarm Input: |
16CH |
| Alarm Output: |
2CH |
| Certificate: |
CE/FCC.RoHS |
| Warranty: |
1 Years |
| Type: |
Standalone |
| Video Compression: |
H.264 |
| Compressed Format: |
H.264 |
| Operating System: |
Linux |
| Application: |
Commercial DVR |
| Interface Type: |
BNC/VGA/HDIM |
| Video Input/Output: |
16 Channel |
| Audio Input/Output: |
4 Channel |
Product Description

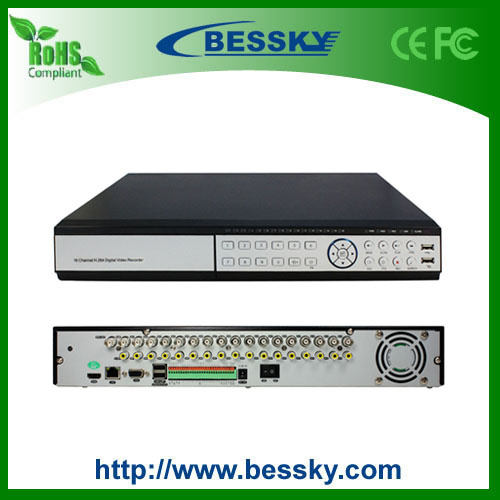

16 Channel D1 Real Time Recording DVR CCTV System (BE-9816FD)
Main features:
Use the standard H. 264 video compression format. 'more advanced video compression technique makes the code stream lowered at least 30%
Can realize 16CH D1 recording and 16CH D1 realtime playback Synchronously, Real Full D1 products
Combines the functions of DVR/HVR/NVR together, multi-mode input ( support pure analog input, support analog + network HD video input, support pure network HD video input). No need to worry how to be compatible with analog system, to choose DVR or HVR, just one can work
Support super cloud service (this function is optional, specialized website forsuper cloud service: Www. Dvrcenter. Net), one step to do remote control easily & conveniently without any complicated setting
Multiplex operation simultaneously: Preview, recording, playback, backup, network live, mobilephone view
Multiple record mode: Auto, timer, motion recording mode
Optimized 16-CH simultaneous playback, each channel can be enlarge to full screen
Support backup with USB Flash Disk, Movable hard disk, DVD writer, Network
Support drag the progress bar can be targeted playback time directly
Support Network function: One IE browser centralized monitoring and CMS Software for multiple DVR
Supports Multiple backup mode: USB flash drive, USB hard disk and network backup
Support 4PCS SATA HDD, each max capacity is 3TB
Support 3G & WiFi extension
Support multi-browser
Support mobile phone monitoring(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, ARSP(www. Dvrcenter. COM), NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc), complete enclosure(WEB, CMS, SDK), to easily achieve interconnection
| | Model | BE-9816FD |
| System | Main processor | HIS chipset Hi3531 |
| Display | Display screen | 1/4/8/9/16 screen |
| Video | Video standard | PAL(625 lines,50HZ);NTSC(525lines,60HZ) |
| | Monitor quality | Monitor:D1;VGA:1080P ;HDMI:1080P |
| | Playback quality | Max support 1080P under HVR and NVR mode;Max support D1 under DVR mode |
| | Encode capability | 16CH D1/960H real time(DVR mode) |
| | Decode capability | 16CH D1/8 CH 960H real time(DVR mode) |
| | Multi-mode video input | DVR mode :16 *960H / 16 *D1
HVR mode: 8*D1+16*D1 / 8*D1+8*720P / 8*D1+(2*1080P+2 *720P) / 4*D1+20*D1 / 4*D1+(2 *1080P+10*D1) / 4*D1+(1*1080P+7*720P) / 4*D1+(1*1080P+1*720P+10* 960H)
NVR mode:24*D1 / 20*960H / 4*1080P / 1*1080P+8*720P / 2*1080P+4*720P+4*960H |
| | Motion detection | Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
| Audio | Audio compression | G.711A |
Record and playback
| Record mode | Manual\alarm\motion detection\timing |
| | Local playback | Max support 16CH D1/8CH 960H real time playback synchronously(DVR mode) |
| | Video search | Time\date\event\channel search |
| Storage and back up | Space occupation | Video:CIF 4~5G/day*channel, D1 16~20G/day*channel;
audio:691.2M/day*channel |
| | Video storage | Local HDD \Network |
| | Back up mode | Network backup\USB portable HDD\USB DVD-RW\SATA DVD-RW |
| Interface | Video input | 16CH BNC |
| | Video output | 1CH BNC,1CH VGA,1CH HDMI |
| | Audio input | 16CH RCA |
| | Audio output | 1CH RCA |
| | Alarm input | 16CH |
| | Alarm output | 4CH |
| | Network port | RJ45 10M/100M self-adaptive Ethernet port |
| | PTZ control | 1 RS485;support multi kinds of PTZ Protocol |
| | USB port | 2*USB2.0 |
| | HDD port | 3TB each HDD(Max storage:3TB*4=12TB)4 SATA HDD or 2 SATA HDD+1 Built-in DVD write |
| | Wireless port | 3G\WIFI(extension via USB port) |
| CMS | CMS software | Support (up to 255 DVR simultaneously) |
| other | Tour | Support |
| | Remote controller | Support |
| | Working temperature | -20-60 |
| | Working humidity | 10%-90% |
| | Power | 12V/6A |
| | Dimension | 430(L)x66(H)x391(W) |
