| Prod Model: |
YDC series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display: |
ODM/OEM |
| Dehumidifing Capacity: |
16L-20L/Day |
| Ydc1-16D: |
16L/Day |
| Ydc1-20d: |
20L/Day |
| Type: |
Portable |
| Usage: |
Home |
| Certification: |
EMF |
| Humidifier Type: |
Impeller / Cool Mist |
| Dehumidifier Type: |
Cooling |
| Humidity Control: |
Automatic |

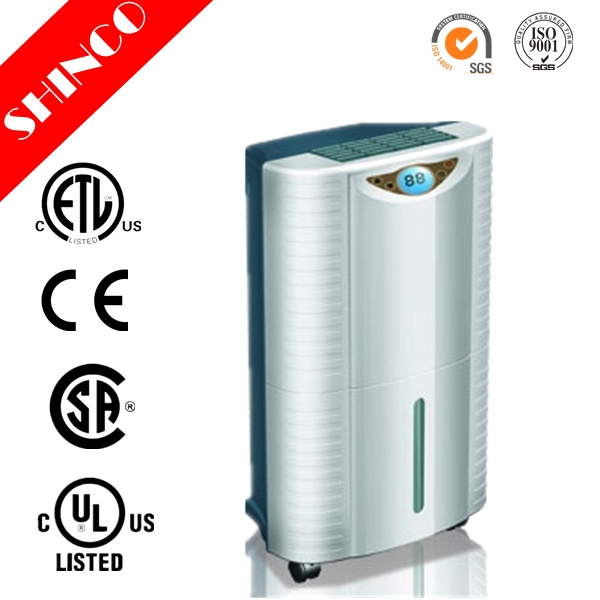

Product Description
1,LCD control panel for easy access
2.Compact design and attaractive appearance
3.High efficent compressor,enviroment friendly refrigerant
4.Water level detection and automatically shut off when water tank is full
5.Automatically defrosting function
6.Optional continuous drainage
7.Activated carbon and washable air filter optinal
8 Water tank capacity 5.5/5 Liter
| Model | Dehumidifying Capacity |
| YDC1-16D | 16L/Day |
| YDC1-20D | 20L/Day |
| YDC1-25D | 25Pint/Day |
| YDC1-35D | 35Pint/Day |
Technical Parameters for European Market |
| Model | Unit | YDC-16D | YDC-20D |
| Dehumidifying Capacity | 30ºC,RH80% | L/Day | 16 | 20 |
| Power Supply | V~,Hz,Ph | 220~240,50,1 | 220~240,50,1 |
| Rated input | 30ºC,RH80% | W | 400 | 400 |
| Rated Current | 30ºC,RH80% | A | 1.8 | 1.8 |
| Air Flow | m³/h | 130 | 130 |
| Wanter Tank Capacity | L | 5.3 | 5.3 |
| Noise | High | dB(A) | 45 | 45 |
| Body Size | W×H×D | mm | 340×540×260 | 340×540×260 |
| Package Size | W×H×D | mm | 394×580×294 | 394×580×294 |
| Net Weight/Gross Weiht | kg | 11/12.5 | 11/12.5 |
| Appliation Area | m2 | 16~18 | 16~18 |
| Loading Quantity | Set/40"HQ | 972 | 972 |
| Set/40"GP | 972 | 972 |
| Set/20" | 460 | 460 |
| Technical Parameters for North American Market |
| Model | Unit | YDC-25P | YDC-35P |
| Dehumidifying Capacity | 30ºC,RH60% | L/Day | 25 | 35 |
| Power Supply | V~,Hz | 110~120,60 | 110~120,60 |
| Rated input | 30ºC,RH60% | W | 320 | 360 |
| Rated Current | 30ºC,RH60% | A | 2.9 | 3.2 |
| Air Flow | m³/h | 150 | 180 |
| Wanter Tank Capacity | L | 5.3 | 5.3 |
| Noise | High | dB(A) | 45 | 45 |
| Body Size | W×H×D | mm | 340×540×260 | 340×540×260 |
| Package Size | W×H×D | mm | 394×580×294 | 394×580×294 |
| Net Weight/Gross Weiht | kg | 11/12.5 | 11/12.5 |
| Appliation Area | m2 | 16~18 | 16~18 |
| Loading Quantity | Set/40"HQ | 972 | 972 |
| Set/40"GP | 972 | 972 |
| Set/20" | 460 | 460 |
Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.
Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.
Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
