| Prod Model: |
S15B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Response: |
35Hz-180Hz(±3dB) 30Hz-250Hz(-10dB) |
| Color: |
Black |
| Power Rating: |
600W |
| Nominal Impedance: |
8ohm |
| Maximum Spl: |
124dB(Continuous)130dB(Peak) |
| Speaker Material: |
Wood |
| Application: |
Stage |
Product Description

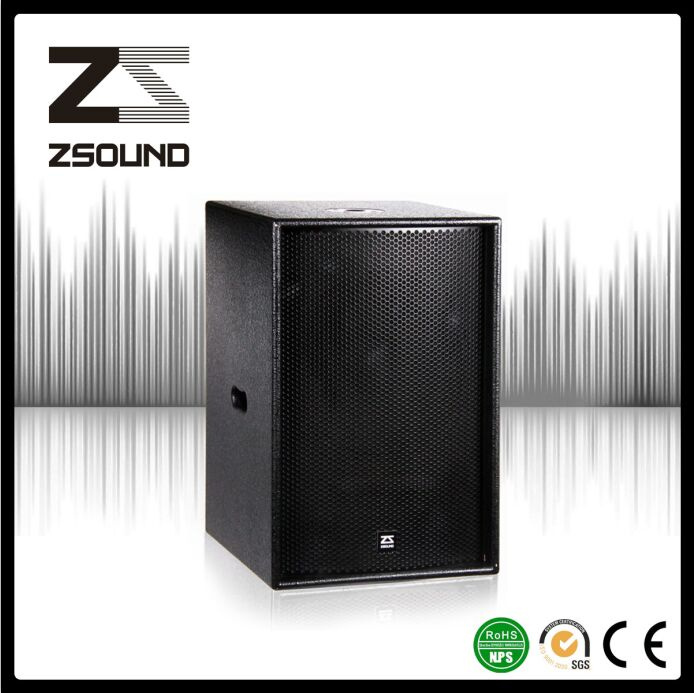

15inch high power audio subwoofer speaker
S15B Subwoofer is recommended used as a companion to P10, P12 and P15.
It describe how a part of the wave produced by the speaker spreads towards the cabinet edges where it is diffracted with group delay and phase inversion.S15B is implemented for modelling the physics of cone applications and the size of enclosures.
In addition, Zsound has developed a progressive enclosure venting system for optimized LF performance.
Features:
·Vented subwoofer
·15"direct-reflection
·Heat resisting 4"(100mm)voice coil
·Large-scale vented design to reduce airfow noise
Applications:
·Bar
·Confere
| TECHNICAL SPECIFICATION |
| Frequency Response: | 35Hz-180Hz(±3dB) 30Hz-250Hz(-10dB) |
| Nominal Coverage: | Omnidirectional |
| Sensitivity (@1w/1m): | 96dB SPL |
| Power Rating (AES): | 600W |
| Nominal Impedance: | 8Ohm |
| Maximum SPL: | 124dB (continuous)130 dB(peak) |
| Drivers: | 1*15"(75mm voice coil)woofer |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 706*470*483mm |
| Weights: | 35kg |
| Connectors: | 2*NL4MP Neutrik Speakon connectors |
| Speaker Cables: | 1+1- |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated foam |
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
