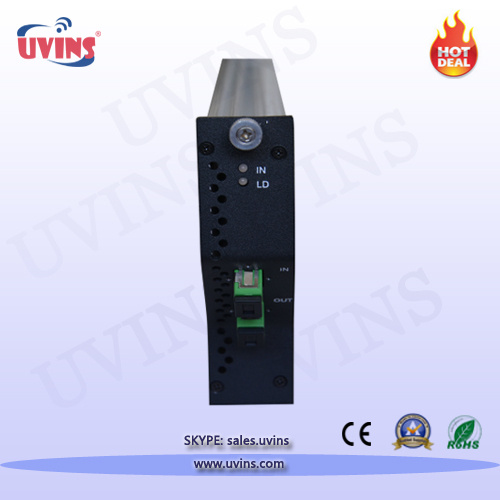

1550nm Optical Amplifier/1550nm EDFA Module/Erbium Doped Fiber Amplifier
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
UVOTP-EA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
14dBm~26dBm |
| Pump Laser: |
Jdsu |
| Wavelength(Nm): |
1530~1565 |
| Output (dBm): |
10~24 |
| Cnr: |
>=52 |
| CTB: |
>=65 |
| Cso: |
>=65 |
| Type: |
CATV（Cable Television）Equipment |
| Certification: |
ISO |
| Condition: |
New |
| Function: |
Amplifier |
Product Description
Feature
1. Using the high performance,high stability of the imported JDSU pumped laser.
2. The superiority of ATC control circuit to ensure the laser operating life.
3. RS-232 for local management.
4. RJ45 port for SNMP remote management.
5. With good thermal design to ensure the long-term reliability.
6. Tunable optical power output(range +0.5~-4dBm).
Specification
Items | Parameters | Remarks |
Optical Parameters | Wavelength(nm) | 1530~1565 | |
Laser | DFB | |
Output (dBm) | 10~24 | |
Optical return loss (dB) | ≥45 | |
Noise figure (dB) | ≤5.0 | 0dBm |
Optical Connector | FC/APC | SC/APC |
RF Parameters | Bandwidth(MHz) | 45~860 | |
AGC AGC control range (dB) | ±5 | |
Input Level (dBμV) | -40~-14 | AGC |
Return Loss (dB) | >16 | |
Input Impedance (Ω) | 75 | |
Link Parameters | CNR (dB) | ≥52 | |
CTB (dB) | ≥-65 | |
CSO (dB) | ≥65 | |
General Parameter | Network Management Port | RJ45,R232 | |
Power Consumption(W) | ≤20 | |
Working Temp (ºC) | -20~85 | |
Relative Humidity | 20%~85% | |

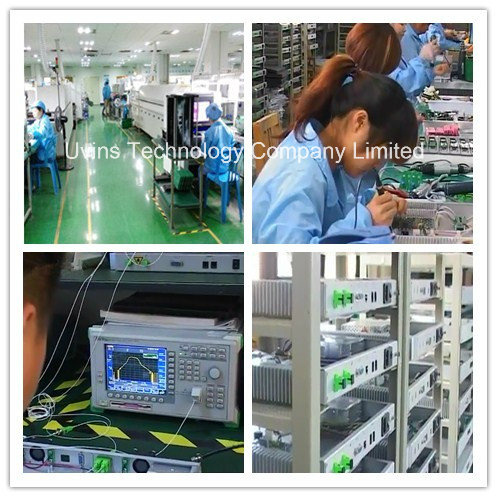

UVINS is a high-tech enterprise and leading manufacturer of CATV & Digital TV products, which specializes in designing, manufacturing and selling Digital Head-end Equipment, Set-top Box, HFC, and EPON products;
UVINS provides overall DIGITAL TV solution and technical services to the network operators all over the world, such as system design, system integration, technical training, and operation consulting^etc; It not only builds up a complete digital TV system for oversea customers, but also focus on value-added services based on customers needs; Its mainly Digital TV product covers: MEPG2/4 encoder, SD/HD H. 264 Encoder, multiplexer, scrambler, demodulator, set-top box^etc;
UVINS also specialize in HFC+EPON solution for oversea customers, it offers full-line CATV transmission products: 1310nm/1550nm Optical Transmitter, Indoor Optical Receiver, Optical Node, 1550nm EDFA, Optical Transmission Platform, RF trunk amplifier, etc;
Based on our advanced technology, excellent services before and after sales, and our good reputation oversea, we already built up a good and long-term cooperated relationship with customers all over the world, our products have been shipped to over 20 countries including Russia, Germany, Finland, Spain, Poland, Vietnam, Thailand, Cambodia, India, Bangladesh. etc;
We will never save our efforts to satisfy customers with our best qualified products and our best services.
