| Prod Model: |
HA5800A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
CATV Optical Amplifier EDFA |
| Feature: |
FTTH EDFA |
| Operating Wavelength: |
1540~1563nm |
| Input Power: |
-10~10db |
| Noise Figure: |
<5.0db |
| Output Power: |
27~40dBm |
| Serial Interface: |
RS232 |
| Size: |
19 *14.5 *.75 ( " ) |
| Approved: |
3rd Part Certification |
| Type: |
Fiber Amplifier |
| Certification: |
CE |
| Condition: |
New |
Product Description
HA5800A/B

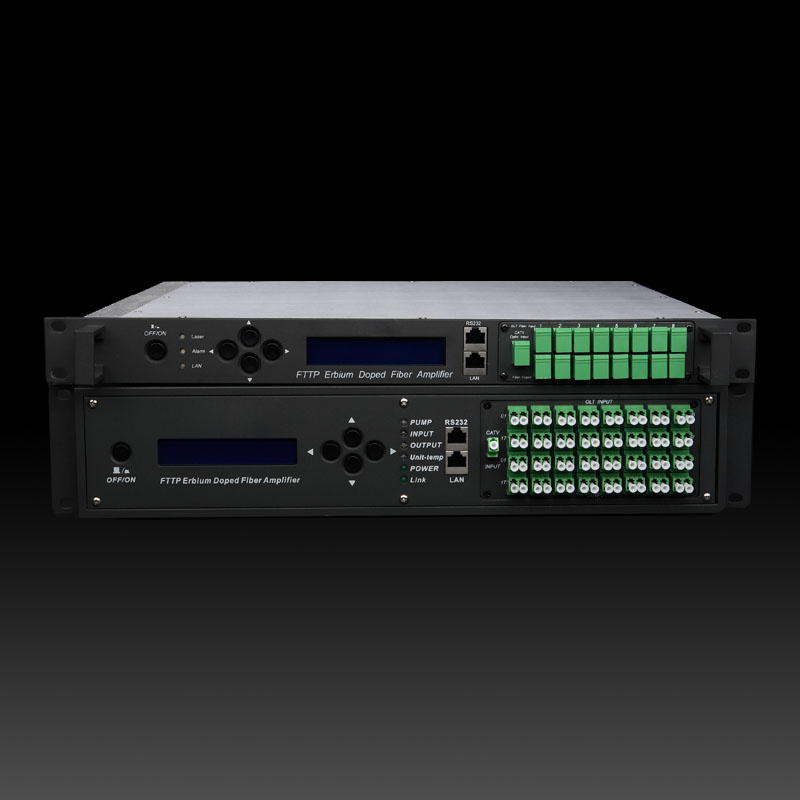

1550nm CATV Optical Amplifier EDFA (1540~1563nm)Product descriptionHA5800 series is a low noise, high performance, FTTP high power multi-ports optical amplifier EDFA with gain spectrum band within 1540~1563nm. Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT very conveniently. Each 1550nm (CATV)'s out-put optical port multiplexes 1310/1490n's data stream, in order to reduce the quantity of the component and improve the datasheet and reliability of the system. HA5800 optical amplifier can be compatible with any FTTX PON Technology. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.
Product features1.1540~1563nm operating wavelength for optical amplifier EDFA
2.500~10000mW (27~40dBm) high output power
3. Low noise subnumber ( Typ ≤ 4.5dB, Max ≤ 5.0dB )
4. High performance, high reliability
5.8~64 uplink optical port, used in OLT
6.8~64 1550nm output optical port, multiplex 1310/1490nm data stream
7. Can be compatible with any FTTX PON Technology: EPON/GEPON, GPON, BPON, DPON
8. Perfect RS232, SNMP
9. Efficient space, flexible installation and easy operation
10. Excellent P/P ratio
Main application1. FTTX PON
2. RFoG
| Performance | Index | Supplement |
| Min. | Typ. | Max. |
| Optical feature | CATV Operation wavelength | (nm) | 1540 |
| 1563 | CATV |
| OLT pass wavelength | (nm) |
| 1310/1490 |
|
|
| CATV pass wavelength loss | (dB) |
|
| 0.8 | 1550nm |
| OLT pass wavelength loss | (dB) |
|
| 0.8 | 1310/1490nm |
| CATV & OLT isolation | (dB) | 40 |
|
|
|
| Number of uplink optical ports (for OLT) | (pcs) |
| 8 | 16 | 1U |
| 16 | 64 | 2U |
| CATV input power | (dBm) | -10 |
| +7.5 |
|
| Total output power | (dBm) | 27 |
| 33 | 1U |
| 28 |
| 40 | 2U |
| Number of output ports | (pcs) |
| 8 | 16 | 1U |
| 16 | 64 | 2U |
| Each port output power | (dBm) | 10 |
| 22 |
|
| Difference of each output power | (dB) | -0.5 |
| +0.5 |
|
| Output power adjustable range | (dBm) | -6 |
| 0 | HA5800/P |
| Noise figure (Pin=0dBm) | (dB) |
| 4.5 | 5.0 |
|
| Polarization dependence loss | (dB) |
|
| 0.3 |
|
| Polarization dependence gain | (dB) |
|
| 0.4 |
|
| Polarization mode dispersion | (ps/nm) |
|
| 0.3 |
|
| Input/output isolation | (dB) | 30 |
|
|
|
| Pump power leakage | (dBm) |
|
| -30 |
|
| Echo loss | (dB) | 55 |
|
| APC |
| General feature | Serial interface |
| RS232 |
|
| SNMP network management interface |
| RJ45 |
|
| Power supply | (V) | 90 |
| 265 | 220VAC |
| 30 |
| 72 | -48VDC |
| Power consume | (W) |
|
| 150 |
|
| Work temp. | (º C ) | -5 |
| 65 |
|
| Storage temp. | (º C ) | -40 |
| 80 |
|
| Relative humidity | (%) | 5 |
| 95 |
|
| Size (W) × (D) × (H) |
| 19 × 14.5 × 1.75 ( " )
483 × 365 × 44 ( mm ) | 1RU (19") |
| 19 × 14.7 × 3.5 ( " )
483 × 375 × 89 ( mm ) | 2RU (19") |
