| Prod Model: |
WF-FS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
| Tube Size: |
58*1800mm |
| Tube Qty.: |
18 |
| Outer Tank Diameter: |
470mm |
| Application: |
Water Heater Controller |
| Rated Voltage: |
12V |
Product Description

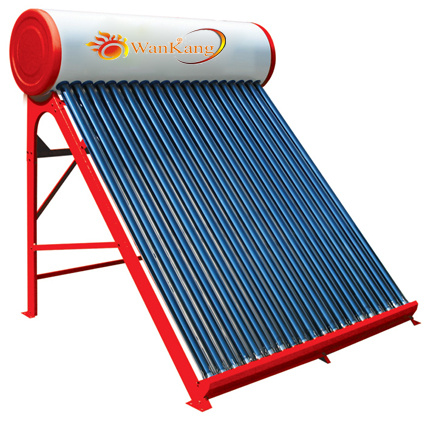

150L non-pressure solar water heaters
150L non-pressure solar water heaters details:
1. CE, ISO
2. It is the economical as a natural circulation system, the water is heated in vacuum tubes directly.
3. The water circulates constantly between water tank and vacuum tubes, the cold water in water tank will be hotter and hotter.
4. Accessories such as electric heater, assistant tank, controller, magnesium are supplied.
Material of inner tank:
|
SUS 304 2B(food grade)
with 0.4mm thickness
|
Material of outer tank:
|
galvanized steel with 0.4mm thickness
|
Material of Stand part:
|
galvanized steel with 1.5mm thickness
|
Insolation:
|
polyurethane foam thickness: 55-60mm.
|
Rubber seals and rubber ring material:
|
Silicone Rubber
|
Vacuum tube
|
47/1500, 58/1800
|
Heat Preservation ability:
|
72Hours
|
Hailstone resistance:
|
Dia< =25mm
|
Optional installation angle
|
45C
|
|
MODEL |
Absorb area(m2)
|
Vacuum tube
|
Cubage
(L)
|
Qty. per20’ /40’
Container
|
Diameter
|
Length
|
No.
|
WF-HJ-420-47/1500-A18
|
0.9
|
φ 47mm
|
1500mm
|
18
|
100
|
56/115
|
WF-HJ-420-47/1500-A20
|
1.0
|
φ 47mm
|
1500mm
|
20
|
111
|
50/105
|
WF-HJ-420-47/1500-A24
|
1.2
|
φ 47mm
|
1500mm
|
24
|
135
|
44/92
|
WF-HJ-420-47/1500-A30
|
1.5
|
φ 47mm
|
1500mm
|
30
|
166
|
36/75
|
|
|
|
|
|
|
|
WF-HJ-470-58/1800-A18
|
1.44
|
φ 58mm
|
1800mm
|
18
|
150
|
39/81
|
WF-HJ-470-58/1800-A20
|
1.6
|
φ 58mm
|
1800mm
|
20
|
165
|
35/73
|
WF-HJ-470-58/1800-A24
|
1.92
|
φ 58mm
|
1800mm
|
24
|
200
|
30/62
|
WF-HJ-470-58/1800-A30
|
2.4
|
φ 58mm
|
1800mm
|
30
|
250
|
24/50
|
WF-HJ-470-58/1800-A36
|
2.88
|
φ 58mm
|
1800mm
|
36
|
300
|
20/40
|
