| Prod Model: |
JJL-CS-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
150L |
| Tube Size: |
58*1800mm Vacuum Tube |
| Inner Tank: |
0.4mm SUS304 Stainless Steel |
| Outer Tank: |
0.4mm Color Steel |
| Frame: |
1.5mm Painted Steel |
| Package: |
Cartons with Foam |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Collector |
| Certification: |
CCC |

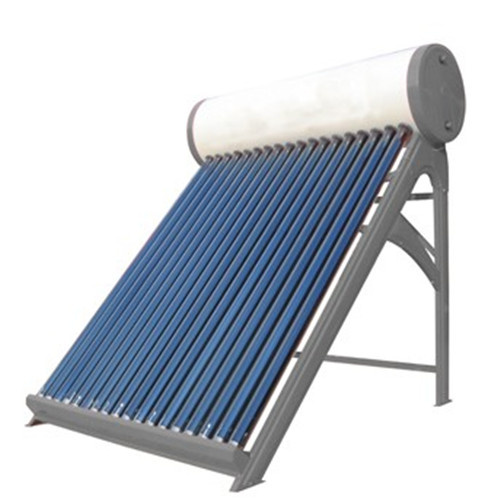

Product Description
1. Inner Tank: SUS304-2B stainless steel 0.4mm
2. Outer Tank: Galvanized Steel
3. Bracket: Zincification painting steel
4. Insulation layer: 55mm
5. Tank diameter: 420mm and 460mm
6. Temperature using range: Solar water heater can be used when above 20 degrees below zero
|
| Model | Tube Size | Tube Qty | Actual Capacity | Loading QTY |
| MM |
| (L) | 20' GP | 40' GP | 40' HQ |
| JIJ4715-15-NP | 47*1500 | 15 | 82.5 | 72 | 150 | 188 |
| JIJ4715-18-NP | 47*1500 | 18 | 99 | 61 | 128 | 161 |
| JIJ4715-20-NP | 47*1500 | 20 | 110 | 56 | 117 | 147 |
| JIJ4715-24-NP | 47*1500 | 24 | 132 | 48 | 100 | 125 |
| JIJ4715-30-NP | 47*1500 | 30 | 165 | 40 | 83 | 104 |
| JIJ5818-15-NP | 58*1800 | 15 | 120 | 44 | 91 | 115 |
| JIJ5818-18-NP | 58*1800 | 18 | 144 | 37 | 78 | 98 |
| JIJ5818-20-NP | 58*1800 | 20 | 160 | 35 | 72 | 91 |
| JIJ5818-24-NP | 58*1800 | 24 | 192 | 29 | 60 | 76 |
| JIJ5818-30-NP | 58*1800 | 30 | 240 | 23 | 49 | 62 |
| JIJ5818-36-NP | 58*1800 | 36 | 288 | 20 | 41 | 52 |
Jiaxing Carrefour New Energy Co., Ltd., established in 1999, is a professional manufacturer of solar water heater, with rich experience in the R&D and Production. After several years of unremitting efforts, we have accomplished outstanding success in product quality and organizational management. And having established the selling, serving network over China and many foreign countries. Meanwhile, the company has gained many honors such as China Compulsory Certification (CCC), CE certification for exporting to Europe, ISO9001: 2000 Quality System Certification, Certificate for Product Exemption from Quality Surveillance Inspection, China well-know brand, and so on.
We promise that we will provide better products, higher quality, lower price, better service, fast delivery, and longer warranty for our customers!
Join in us, and our products will be your best choice!
Modernized manufacturing equipments and technology have piloted us make progress constantly, and science and technology have enriched our industry. Development and innovation are our persistent pursuit in spirit. The modernized manufacturing equipments and technology have LED the mainstream of the industry and market. With strong conviction and rigid technology, we're committed to meet the demand of different consumption groups in different regions and under different climate conditions. We will create a favorable marketing atmosphere to make the high-tech products emerged like tide and to let technology lead the world.
