| Prod Model: |
AMG-15IPPC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
15'' |
| Brightness: |
300nits |
| Type: |
TFT |
| Application: |
ATM, Kioks, Gaming |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Screen Size: |
≤17" |
| Interface Type: |
VGA |
Product Description

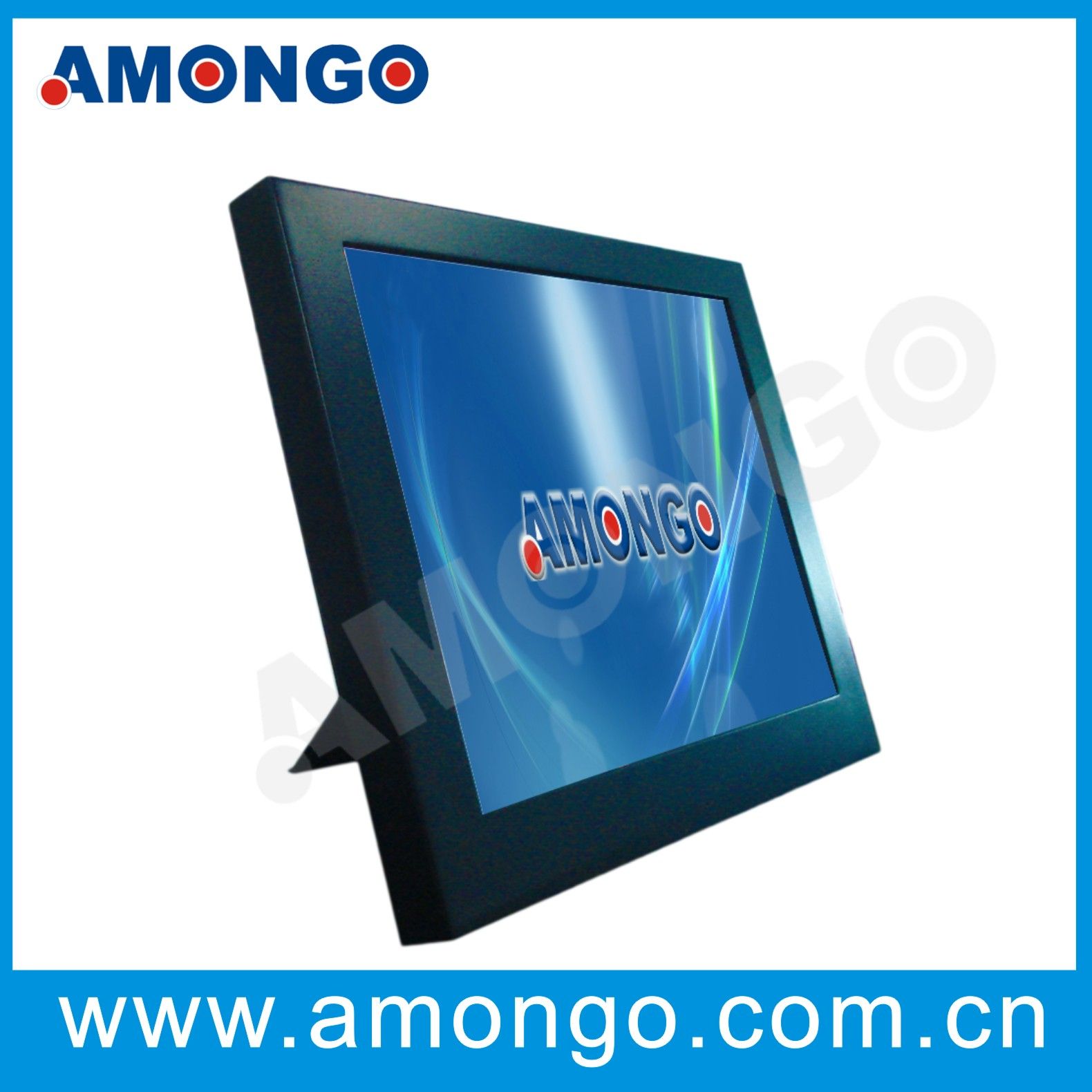

15'' Rugged Industrial Flat screen LCD Display with SAW, IR, Resistive Touch Screen, Vandal proof, Water Proof, IP65 Compliance
Features:
300nits/10240X768 support wide temperature range
IR, Capactive, PCT Multi Touch Screen panel Optional
VGA, DVI, HDMI, AV, VIDEO, AUDIO Interface,
Explosion proof, Dust proof
High brightness
Superior Durability, drift free
Contamination resistance, long life
Mechanical structure, easy installe
Easy replacement
High definition LCD monitor
High performance graphic controller on board
Cable sets, OSD and power supply available
Vesa-mount &Rear-mount
FCC, CE, CCC, RoHS
Any Customized design available
Hardware specification:
Model NameAMG-15IPPC07T1
Viewable Size Image15"
Active Display Area (mm)304.1(H)X228.1(V)
Pixel Pitch (mm)0.297(H)X0.297(V)
Number of Pixels1024 X 768
Contrast Ratio500: 1
Display Color262, 144(6 bit + FRC)
Brightness (CD/m^2)250 CD/m^2
Viewing Angle (CR >=10)130/120
Synchronization Range
Horizontal / Vertical31.5~48.1kHz/56~75Hz
Recommended Resolution1024X768@60Hz, 75Hz
Signal Connector15 pin D-SUB
Power SourceAC 100~240V, Universal, ± 10%
Power Consumption28W typical, normal operation
Power ManagementVESA DPMS Compliant
Plug & PlayVESA DDC 1/2B
Optional Video InputNo
Optional DVI InputYes
Optional Touch ScreenSAW, Resistance
Applications
1. Kiosk information system
2. Gaming and amusement
3. Light industrial shop-floor automation
4. ATM
5. Medical treatment & medical player
Trade terms
1. Payment terms: 30% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T.
2. Production lead time: 10-15days according to the order quantity
3. Sample lead time: 7days when there have stock material, 10days for current design, 15days for new design
4. Shipping Port: Shenzhen, China
5. Discounts: Based on the quantity, normally above 100PCS, we will give special discounts
6. MOQ: 1PC, any sample order are welcome for testing our quality
7. Discount for cooperative express company: TNT, DHL
About us
Amongo technology Co., Ltd. is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor, etc., we developed a large number of LCD items, from 6.5'' to 42'' as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, and industrial control area. Any OEM product is available
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity of 10, 000PCS monthly, it's available for us to do the delivery in a short time. Our main markets: America, European, Middle-East countries and Asia areas.
Keyword: Industrial LCD monitor, industrial LCD display, embeeded monitor, rugged monitor, Touch Screen Monitor, LCD monitors, computer monitors, monitor LCD, display LCD, monitors, industrial displays, industrial monitors, LCD monitor, LCD display
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.
Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
