| Prod Model: |
SGT-1503 |
| Color: |
Black |
| Pixel Pitch: |
0.297× 0.297mm |
| Max Resolution: |
1024X768@75Hz |
| Brightness: |
250CD/M2 |
| Starting Interface: |
Vesa Standard |
| Life: |
50, 000hours |
| Type: |
Fixed |
| Touch Screen: |
Touch Screen |
| Certification: |
FCC |
| CPU: |
Intel |
| System: |
Windows |
Product Description
Scangle is one of the leading manufacturer brands of POS system in China.
We specialize in
POS Receipt Printers: 58mm thermal printer, 80mm thermal printer and 76mm Dot Matrix printer...
POS system and the parts: cash drawer, touch screen monitor, customer display, card readers...
Barcode product: Barcode Scanner, Barcode Reader, Barcode Printer...
Scangle has been a brand for four years. With the support of our dear employees and customers, we has exproted our products to many countries and regions all over the world, especially Southeast Asia and European. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. (OEM and ODM are welcome!)We welcome new and old customers from all walks of life to contact us for future business relationshiops and mutual success!
Chinese Reliable POS Screen Monitor Supplier!
S*kype: Scangle2
| Model NO. | SGT-1503 |

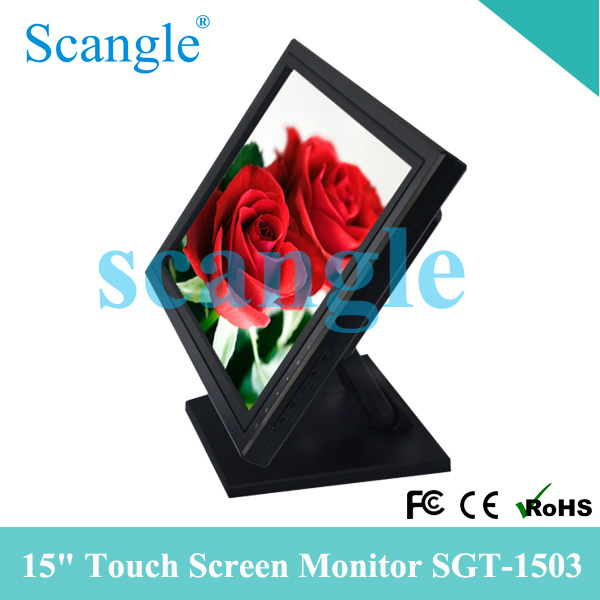

| Panel size | 15" TFT-LCD |
| Pixel pitch | 0.297× 0.297mm |
| Max Resolution | 1024x768@75Hz |
| Contrast Ratio | 450: 1 |
| Brightness | 250CD/m2 |
| Response time | 4/12ms |
| View angle | Horizontal:1 5 0° |
| Vertical:1 2 0° |
| Band width | 135MHz |
| Starting interface | VESA Standard |
| Displaying Color | 16.7M |
| Input Voltage | AC 100-240V 50/60Hz |
| Power Consumption | < 30W |
| Life | 50, 000Hours |
| Interface | VGA /USB |
| Container Quantity | 970 PCS (20FT) 2011 PCS (40FT) |
| Certification | FCC, CE, FCC, CE, UL, TCO99, CB, SASO, FDA |
| Touch screen type | 5 Wire Resistive |
| Surface Hardness | 3H |
| Optical Clarity | 80 % |
| Message Noise | 5 m sec ~ 15 m sec |
| Isolation Resistance | 20M@DC25V |
| Faceplate Surface | Anti-glare coating |
| Linearity | < 1.5% |
| Resistance | 200 ~ 900 |
| Operation Environment | Workable Temperature:-10 to 60°C
Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%;
storage relative humidity:10% to 90% |
Operating Current: 5mA ~ 25mA
Operating Voltage: DC5V
Operation Pressure: 80 ~ 120g |
| Measurement | Dimension: 364 x 53 x 304mm
Package Dimension: 430 x 190 x 410mm |
Net weight: 4.0kg
Gross weight: 5.0kg |
As a China manufacturer, Shenzhen Scangle Technology Co., Limited. Specializes in major businesses, POS printer, thermal printer, thermal receipt printer, kitchen receipt printer, barcode scanner, barcode reader, POS terminal, barcode printer. Our POS products are consist of POS terminal, receipt printer (DOT matrix printers and thermal printers), customer display, MSR, touch screen, cash register, cash drawer, barcode scanner etc.
At present, all of our employees continue their endeavor to convert scientific advance into life quality improvement. With our creative combination of professionalism and passion, our scientific and technological products will make your life comfortable and convenient.
We are looking forward to building long-term and cooperative relationships with customers at home and abroad. Please feel free to contact us for further information.
