| Prod Model: |
CM1561C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| View Angle: |
U/D:35/45 R/L:45/45 |
| Power Supply: |
DC10.5-32V |
| Contrast Ratio: |
600:1 |
| Brightness: |
220CD/M2 |
| Response Period: |
≤15ms |
| Light Source: |
LED |
| Analog Adjustments: |
Brightness, Contrast, Chroma(0~100) |
| Color System: |
PAL/NTSC Optional |
| Video Input: |
AV,VGA,HDMI |
| Delivery Detail: |
in Two Weeks After Payment Received |
| Combination: |
Radio |
| Placement: |
Roof |
| Certification: |
FCC |
| Video Output: |
HDMI |
| Screen Size: |
15.6 |
| Resolution: |
1366(H)×3(RGB)×768(V) |
| Voltage: |
10.5-32V |
Product Description

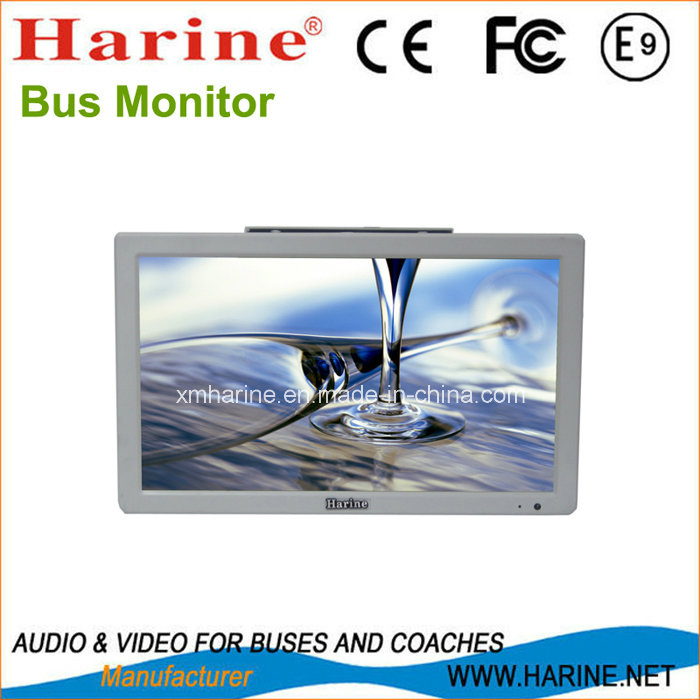

15.6 inches fixed LCD monitor, AV(standard)/VGA(Optional)/HDMI(Optional) input with CE, FCCcertificated.
Quick Details
Certification: CE & FCC
Place of Origin: Fujian, China (Mainland)
Brand Name: Harine
Model Number: CM1561
Color: Ivory
OEM No.: CM1561
Material: Plastic
Size: 15.6"
Type: Roof
Packaging & Delivery
Packaging Details: | 1PC/box 460*120*315 G. W. 3.3kg 4PCS/carton 520*475*350 G. W. 14.4 |
|---|
| Delivery Detail: | In two weeks after payment received |
|---|
Specifications
1. Bus roof monitor
2. LED Backlight
3. Low carbon and light in weight
4. Multi-input options
5. Shock-protection
Screen Size |
15.6 inch |
Screen Type |
TFT LCD Screen |
Aspect Ratio |
16: 9 |
Resolution |
1366(H)×3(RGB)×768(V) |
Contrast Ratio |
600: 1 |
Brightness |
220CD/m2 |
Response Period |
≤15ms |
View Angle |
U: 35/D: 45 L/R: 45 |
Light Source |
LED |
OSD Language |
OSD Multilingual optional |
Analog Adjustments |
Brightness, Contrast, Chroma(0~100) |
Color System |
PAL/NTSC optional |
Video Input |
1VP-P75 Ω VGA signal input (optional) |
Image Display(two) |
16: 9 |
Interface |
RCA input or VGA input (optional) |
Power Supply |
DC+22-32VDC 2A |
Product Dimension |
L: 389mm×W: 236.5mm×H: 41mm |
Net Weight |
≤2.7KG |
Operating Temperature |
-20~50°C |
Storage Temperature |
-20~80°C |
Power Consumption |
<30 W |
Description:
1. Wide range of supply voltage, 16~32V DC.
2. Small size, light weight, low power consumption, easy installation.
3. One video signal input, one VGA signal input optional.
4. Wide view angle, high brightness and resolution.
