| Prod Model: |
CM1568 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contrast Ratio: |
600:1 |
| View Angle: |
U:40/D:40 L/R: 45 |
| Power Consumption: |
30W,Less Than 30 W |
| Power Supply: |
DC 24V±20% |
| LCD Screen: |
TFT LCD Screen |
| Brightness: |
250CD/M2 |
| Image Display(Two): |
16:9 |
| Analog Adjustments: |
Brightness, Contrast, Chroma(0~100) |
| Light Source: |
LED |
| Combination: |
TV |
| Placement: |
Roof |
| Certification: |
FCC |
| Voltage: |
12/24V |
| Audio Output: |
Digital Optical Output |
| Video Output: |
HDMI |
| Screen Size: |
15.6 Inch |
| Resolution: |
1366(H)×3(RGB)×768(V) |
Product Description
Products Discription:

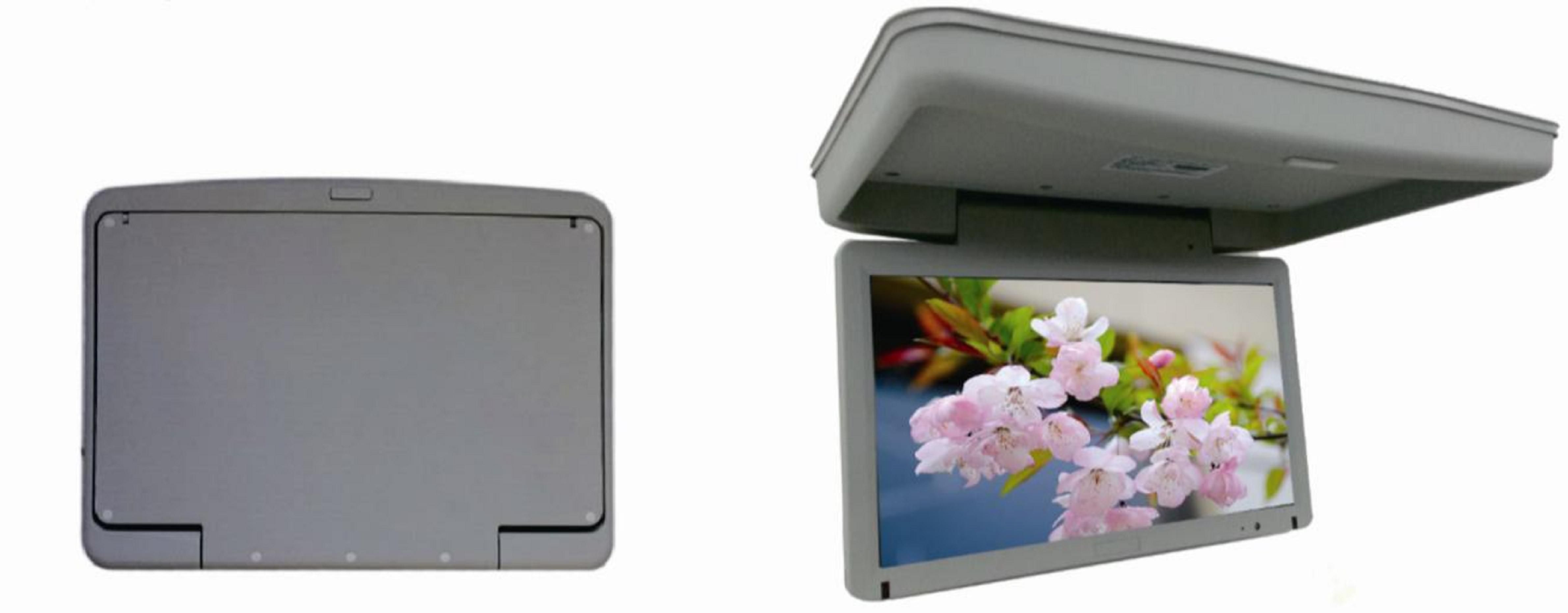

15.6 inches bus/taxi/metro/subway LCD player/monitor, AV(standard)/VGA(Optional)/HDMI(Optional) input with CE and FCC certificated.
Specification:
| Detail | Specifications | Standard Fitting |
| Screen Size | 15.6 Inch |
1.Fixed Screws
2.TV signal cable
3.User manual |
| LCD Screen | TFT LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1366(H)×3(RGB)×768(V) |
| Contrast Ratio | 600:1 |
| Brightness | 250cd/m2 |
| Response Period | 5ms |
| View Angle | U:40/D:40 L/R: 45 | Optional Fitting |
| Light Source | LED | 1, Remote controller
|
| OSD Language | OSD Multilingual optional |
| Analog Adjustments | Brightness, Contrast, Chroma(0~100) |
| Color System | PAL/NTSC optional |
| Video Input | 1VP-P 75Ω VGA signal input (optional) |
| Image Display(two) | 16:9 |
| Interface | RCA input or VGA input (optional) |
| Power Supply | DC 24V±20% |
| Product Dimension |
|
| Net Weight | ≤6KG |
| Operating Temperature | -10~60ºC |
| Storage Temperature | -20~70ºC |
| Power Consumption | Less than 30 W |
Description: 1. Wide range of supply voltage.
2. Low carbon consumption.
3. RCA, VGA and YPBPR Options.
4. Wide view angle, high brightness and resolution. |
