| Prod Model: |
CM1561C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| View Angle: |
U/D:35/45 R/L:45/45 |
| Power Supply: |
DC10.5-32V |
| Contrast Ratio: |
600:1 |
| Brightness: |
220CD/M2 |
| Combination: |
Radio |
| Placement: |
Roof |
| Certification: |
FCC |
| Audio Output: |
Digital Optical Output |
| Video Output: |
HDMI |
| Screen Size: |
15.6inch |
| Resolution: |
1366(H)×3(RGB)×768(V) |
| Voltage: |
10.5-32V |
Product Description

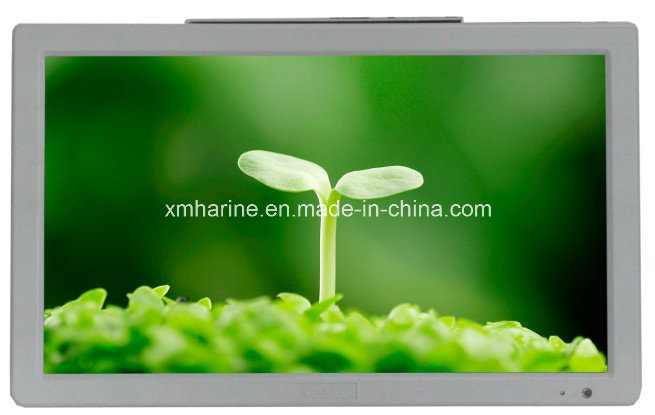

Hold hoop 15.6 inches fixed LCD monitor, AV(standard)/VGA(Optional)/HDMI(Optional) input with CE, FCCcertificated.
Quick Details
- Certification: CE & FCC
- Place of Origin: Fujian, China (Mainland)
- Brand Name: Harine
- Model Number: CM1561
- Color: Ivory
- OEM No.: CM1561
- Material: Plastic
- Size: 15.6"
- Type: Roof
Packaging & Delivery
| Packaging Details: | 1pc/box 460*120*315 G.W. 3.3kg 4pcs/carton 520*475*350 G.W. 14.4 |
|---|
| Delivery Detail: | In two weeks after payment received |
|---|
Specifications
1. bus roof monitor
2. LED Backlight
3. Low carbon and light in weight
4. Multi-input options
5. Shock-protection Screen Size | 15.6 inch |
Screen Type | TFT LCD Screen |
Aspect Ratio | 16:9 |
Resolution | 1366(H)×3(RGB)×768(V) |
Contrast Ratio | 600:1 |
Brightness | 220cd/m2 |
Response Period | ≤15ms |
View Angle | U:35/D:45 L/R: 45 |
Light Source | LED |
OSD Language | OSD Multilingual optional |
Analog Adjustments | Brightness, Contrast, Chroma(0~100) |
Color System | PAL/NTSC optional |
Video Input | 1VP-P75 Ω VGA signal input (optional) |
Image Display(two) | 16:9 |
Interface | RCA input or VGA input (optional) |
Power Supply | DC+22-32VDC 2A |

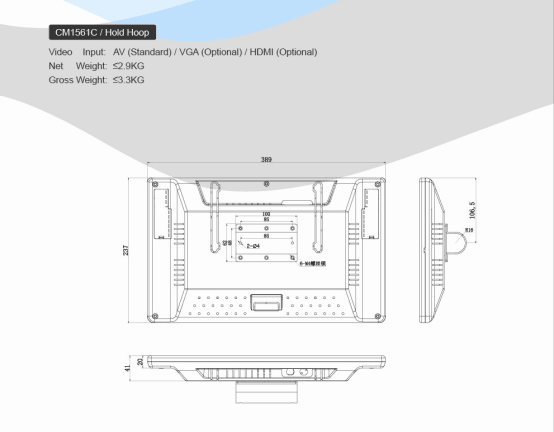

Product Dimension | L:389mm×W:236.5mm×H:41mm |
Net Weight | ≤2.7KG |
Operating Temperature | -20~50°C |
Storage Temperature | -20~80°C |
Power Consumption | <30 W |
Description:
1. Wide range of supply voltage, 16~32V DC.
2. Small size, light weight, low power consumption, easy installation.
3. One video signal input, one VGA signal input optional.
4. Wide view angle, high brightness and resolution.
Our company information :
Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .
With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.
Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.
We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
