| Prod Model: |
CTB150W-4F-PT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interfer:USB&Serial,Material:Pure Glass: |
Mutil Touch:2 Points |
| Screen Size: |
15-20 Inches |
| Application: |
Public Information Inquiry System |
| Aspect Ratio: |
4:3 |
| Customized: |
Non-Customized |
| Resistive Touch Screen Type: |
Digital |
| Screen Type: |
Surface Acoustic Wave |
Product Description

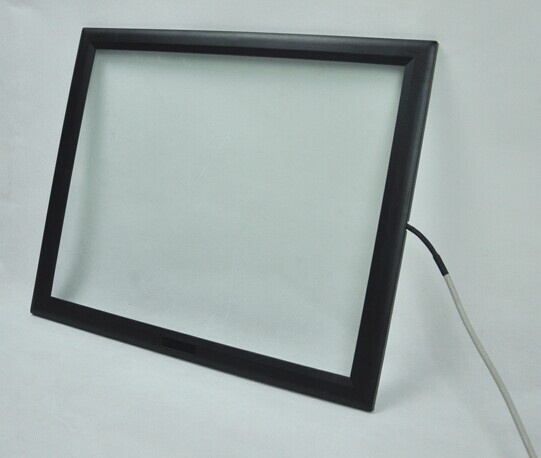

15-19"SAW touch creen, touch panel
1. RS232/USB
2. Quick rsponse
3. Long life-span
4. Multi-touch available
|
Technology |
Surface Acoustic Wave(SAW) |
|
Sizes |
15" 17" 19" |
|
Resolution |
4096 x 4096 ,Z-axis 256 |
|
Material |
Pure glass(Vandal-proof ,Anti-glare can optional) + Plastic frame |
|
Water-proof standard |
Seal frame to meet IP65 standards |
|
Accuracy |
< 2mm |
|
Light Transmission |
>92% /ASTM |
|
Touch Force |
30g |
|
Durability |
Scratch-free; More than 50,000,000 touches in one location without failure. |
|
Surface Hardness |
Mohs' 7 |
|
Multi-touch |
Optional , software support |
|
Operating Temp. |
-10°C to +60°C |
|
Storage Temp. |
-20°C to +70°C |
|
Humidity |
10%-90% RH / 40°C, |
|
Altitude |
3800m |
|
Parts |
Connect cable,Double-sided adhesive, dustproof strip |
|
Certificates |
CE, FCC, RoHS |
|
Interface |
USB,RS232 can optional |
|
Controller technical specification: |
|
Size(PCB) |
85mm×55mm×10mm |
|
Working voltage |
12V±1V & 5V±0.5V optional |
|
Working Current |
80mA |
|
Maximum Current |
100mA |
|
Response time |
≤16ms |
|
Operating temperature |
0-65ºC |
|
Operating humidity |
10%-90%RH. |
|
Storage temperature |
-20ºC-70ºC |
|
MTBF |
> 500,000 hours |
|
Certificates |
CE, FCC, RoHS |
|
Operate system |
WinXP / Win7 /WinXPE / WinCE / Linux / Android |
Founded in 2009, CJTouch is a high-tech enterprise, specialized in developing, manufacuring, and marketing SAW touch panel, IR touch panel and touch terminal and providing touch solutions. With the strong technical strength and professional team in development, production, sales and aftersales service, CJtouch is capable of gathering a group of experinced, committed to innovation industry elite in touch screen technology research and progrom development...
