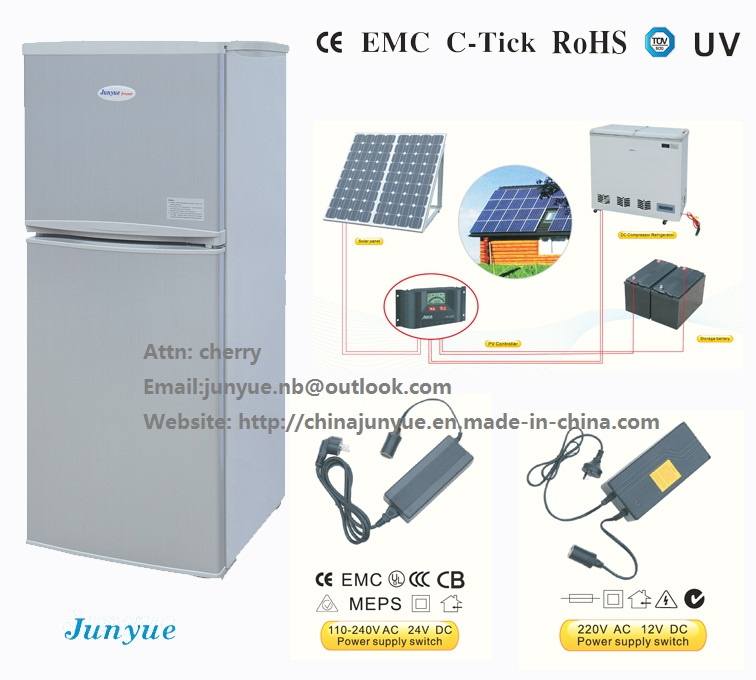

131L DC 12/24V Solar Car Refrigerator

Prod Model:	BCD-131L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
N.W. /G.W(Kg):	31/34
Carton Size(mm) (L*W*H):	1260*585*525
Loading Quantity:	74PCS/20gp
Colar:	Gray
Power Consumption:	48W
Warranty Time:	3years
Export Markets:	Global
Certification:	CB SGS
Capacity:	131L
Voltage:	DC 12/24V AC110-240V
Shape:	Upright DC Power Refrigerator
Power Source:	Electricity and Solar
Power Supply Type:	DC 12/24V AC110-240V and Solar
Component:	Compressor, Controller of Compressor, Thermostat
Brand:	Junyue

Product Description

Product description:
131L DC 12/24V Solar Car Refrigerator
durable solar products,your best choice!


What we can supply to you:
Portable car freezer:35l,45l,60l,70l,80l,90l
Car refrigerator :108l, 138l, 158l, 178l, 258l
New dc compressor refrigerator:106l,131l,151l,161l,210l
12/24v dc display cupboard:258l
Accessories:solar panel, solar charge controller, gel battery, solar panel, auto switch, adaptor, wires

Features of our products:

* Fully hermetic domus compressor with integrated control electronics.
* Automatically turn off when low input voltage to prodect product
* Connect with DC power source directly e.g solar power source
* Connect with AC power source through an AC/DC adaptor,connect with solar freezer
* High temperature resistance design and energy saving design
* With single top door and door lock
* Battery energy storage enough for 72 hours' backup
* Battery / mains power automatic switch optional for non-stop operation
* Super low energy consumption:≤48W per hour
* Battery energy storage for area with often power failure
* Special design for T3 climate
* High quality dc compressor
* Enviroment-friendly refrigerant R134a
* Battery over discharge protection
* Max -18ºc for freezer compartment at 30ºc ambient temperature
* Spare part would be provide:compressor, controller of compressor, thermostat, fan and bulb.
* CE,ROHS,CB,SGS

Parameter for reference:
131L DC 12/24V Solar Car Refrigerator


Model	BCD-131
Gross capacity	131 liters
Demension	1226*520*460mm
Carton size	1260*585*525mm
Voltage	DC 12/24V  AC110-240V current:  ≤4.0A
Everage power consumption	≤48W
Temperature range	8ºC to ≥ -18ºC (variable via electronic thermostat)
Refrigerating fluid	R134a
Refrigeration capacity	Arrived -16ºC in 2 hours. (under the standard running condition and rated load)
N.W./G.W.kg	31/34
Certifcate	CE ROHS CB SGS
Other features	Digital temp.control panel the compressor could adjust the torque and rotate speed automatically

131L DC 12/24V Solar Car Refrigerator
Features

ø  No AC Inverter Needed	ø  Input voltage automatic recognition
ø  CFC-free refrigerant (R-134a)	ø  Using AC power through AC/DC adaptor
ø  Low power consumption makes best use of available power	ø  0°C-10°C (32°F-50°F) for refrigerator   compartment
ø  Low voltage cut out automatically to protect batteries	ø  High temperature resistance and energy saving design
ø  Max -18ºc(-0.4ºf) for freezer compartment at 30ºc(86ºf) ambinent temperature

Asscessories and connection type:

1.Basket (excludes 20l):free of charge.
2.Cable with cigarette plug (for each freezer):free of charge.
3.Adaptors (optional):for ac power using.
4.Travel bag(optional):
there are two layers on the bag,inners is pvc with coated aluminium,outside is pe.


FAQ:

1.WHAT DO MINI FRIDGES NEED TO RUN?
You fridge uses electricity; 12V or 24V adoptor, or battery or a set of solar system and the laws of thermodynamics to move heat from the inside of your fridge where the food is, to the outside air. We provide 4 types to choose whatever you like.

2.SO HOW DO MINI FRIDGES KEEP THINGS COOL?
In a refrigerator, you use a refrigerant to absorb the heat from the food, and then you pump it using a compressor away from the food and replace it with fresh refrigerant to keep the contents cold.

3.WHAT IS A REFRIGERANT?
A refrigerant is usually a gas or a liquid that requires a lot heat energy to freeze, condense or evaporate; that's what makes it useful. Car air conditioners and portable electric fridges usually use R134A which is much less damaging to the atmosphere than previous refrigerants such as R12 {Freon}.

4.WHY DO MINI FRIDGES KEEP RUNNING ONCE EVERYTHING IS COLD?
It's about insulation. Because the contents are colder than the surroundings, heat will flow from the surroundings and through the walls into that cold space. Insulation slows down that heat transfer, but it can't stop it. And every time you open the lid, add some contents, heat gets in too. Better fridges have better quality insulation and seals.

5.CAN MINI FRIDGES BE OPERATED FROM 12V DC POWER SOCKET OF A CAR?
Yes, but almost all cars will only supply 12V while the accessories are switched on or the ignition is on and/or the car is running. So if you stop and turn off the car the fridge will probability stop working too. This will help to prevent you from flattening your car battery, of course. If your car battery is not in good condition the low voltage error protection may switch off the fridge just when you are stopped, especially if it is at night and the car headlights are running too.

6.WHY DO PORTABLE FRIDGES TAKE 2 MINUTES TO START?
When the fridge turns off there is still high pressure refrigerant in the condenser. If the compressor tried to start straight away the load would be too high. The startup delay allows the pressures in the system to equalise so the compressor uses less power to start again. It also protects the system when it is first turned on in case the unit has not been sitting level.

7.CAN SOLAR PANELS BE USED WITH MINI FRIDGES?
The car fridge will not work properly if directly connected to solar panels, as the voltage output fluctuates too much for the controller built in the fridge. You can, however, connect solar panels through a charger/regulator to a 12V battery running the fridge. The requirements for heavy duty wiring between the battery and the fridge are the same as recommended for battery only operation.

8. WARRANTY SERVICE?
We can provide spare parts(compressors,fans,bulbs,controllers,etc) to support you within warranty year for free, fridge box is under 1 year warrenty, compressor is under 2-3 year warranty.



Why choose us as your long-terms partner?
1.Over 5 years professional experience of producing and exporting car refrigerator&freezer.
2.Own technical team
3.High standard quality control program
4.Excellent speed service always
