| Prod Model: |
MF-50 |
| Markets: |
North America,South America,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Type: |
Card |
| Usage: |
Attendance Machine |
Product Description

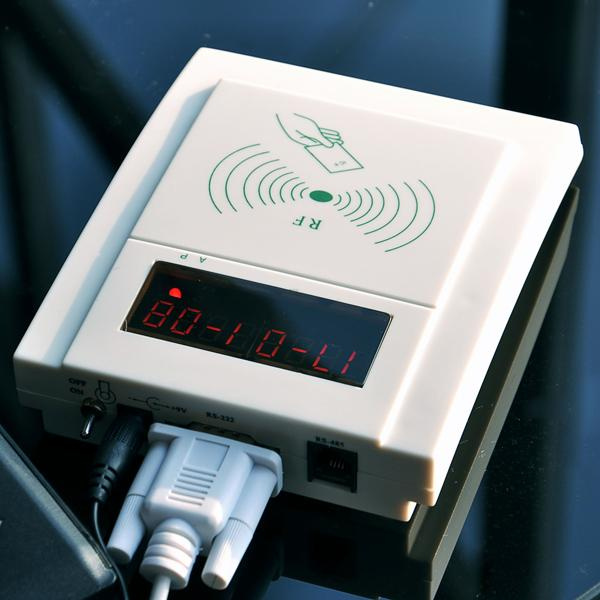

MF-50 Contactless RFID Smart Card Reader is composed of the mainframe, antenna and interface.
With LED / LCD screen, the reader connects with the PC and other equipments through RS232 / RS485. And ISO14443 TYPE A/B, ISO 15693 compliant cards are supported.
The device is essential in the front-end IC related products and systems. Owning various sophisticated interfaces and functions, the reader is widely used in many fields such as attendance, physical access control, gas station, parking lot, public transportation, healthcare and other Smart Card Management programs.
Support cards
TYPE A/B
ISO15693
IS07816:
SAM Card: Most of the popular memory card types in the market
CPU card: With T=0, T=1 protocols
GSM11.11 standard: Up to 3 GSM11.11 Sam slot.
Software
Software includes Demo program, libraries and application example
A. Demo program: Provided demo. Exe run on WINDOWS
B. Libraries
C Lib (Borland C3.1) FOXPRO FOR DOS (2.5/2.6) Lib WINDOWS 16 bit DLL
WINDOWS 32 bit DLL UNIX lib (SCO UNIX5.0) LINUX lib (RED HAT6.0) WINCE (EVC4.0)
C. Example
Provided various programming language example such as VB5, VC, DELPHI3,
VFP3, FORPRO FOR DOS (2.5/2.6), BC3.1, UNIX (SCO5.0), LINUX (RED HAT6.0)
Parameters
Support Chips ISO14443Type A, B, ISO15693
Frequency 13.56MHz
Speed with card 106Kbit
Memory 2K Byte
Standard ISO14443A/B, ISO 7816, PC/SC, GSM11.11, FCC, CE
PC System Platform Windows 98, Me, 2K, XP, 2003, Vista, UNIX, Linux
Baud rate 9600 ~ 115200 BPS
Cable 1.5M
Model MF-50HW MF-50/MF-50CT MF-50LCD
Antenna Separate Built-in Built-in
Display None None/ 8 BIT LED 144*32 pixels LCD
Shell Control unit: Steel Plastic Case Plastic Case
Power DC9V---18V DC5V(PS2)/ DC9V-12V DC9V-12V
NW/GW About 500/800g About 186/372g About 213/433G
Typical Application
E-banking and online shopping, E-commerce, E-passport, Network access control, Physical Access Control, Checking the balance of electronic purses, Software locking, Digital signature, Loyalty Program, Stored value, Identification, Ticketing, Parking and toll collection, Online gaming, Automatic Fare Collection.
Specification
MF-50 RS232 Interface, DC9V input
MF-50CT RS232 Interface, DC9V input, with 8bit LED display
MF-50LCD USB(HID, PNP) / RS232 interface, 128x64 pixels LCD
MF-50-485 RS485 Interface, with 8bit LED display, up to 255 units in one group
MF-50-HW RS232 Interface, DC12V input, Express-wah Dedicated Reader
