| Prod Model: |
MIFARE1K Wrist band |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Silicone |
| Protocol: |
ISO14443, ISO15693 etc |
| Size: |
240 Mm * 15mm |
| Width: |
14/15/16mm/18mm or Customized |
| Operate Temperature: |
-30c~80c |
| Colors: |
Black, Red, Yellow, Blue, Orange, etc |
| Chip Available: |
Lf/Hf/UHF |
| MOQ: |
500PCS |
| Certificate: |
RoHS/FDA/ISO9001 |
| Delivery Time: |
7 Days |
| Function: |
Information |
| Frequency: |
High Frequency |
| Type: |
RFID Wristband Bracelet |
| Material: |
Silicone |
| Application Field: |
Swimmping Pool, Hotel, Water Park etc |
Product Description
Free samples can send for testing !
(MIFARE Classic® are trademarks of NXP B.V. )MIFARE Classic® 1K is the pioneer in contactless smart ticket IC operating in the 13.56 MHZ frequency range with read/write capability and ISO 14443 compliance.
MIFARE Classic® 1K is with 1k byte capacity, Can be encryption with a password. Reading range to be around 5-10cm.
You guys will be more clearly to read below form:
MIFARE Classic® 1K description: |
| Brand | NXP Original |
| Chip Part NO: | MIFARE Classic® 1K(NXP Genuine) Warranty 1 Year |
| Unique serial number | Serial number(4byte and 7byte) |
| Function | Read/write protect by key A or key B |
| Memory | 1K-byte EEPROM(16 SECTORS) |
| Frequency | HF:13.56MHZ |
| RF Protocol | ISO 14443 TYPE A |
| Reading disdance | 5-10CM |

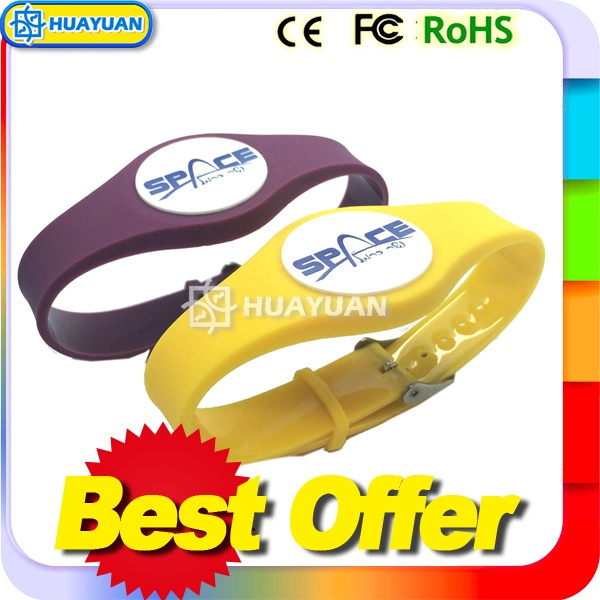

Silicone Wristbands/Bracelet WS-01 Features:
- Material: Silicone
- Plate:31mm
- Width: 14mm,16mm,19mm
- Dia: 55/ 65/ 74mm
- Colours: black,red,yellow,white,blue etc
- Operate Temperature: -20 c to +90 c
Application:
- Access control and security
- Hotel room key
- Time Attendance
- Campus, Bus Transportation
- Club/SPA membership management
- Pub, event management
- Water park and swimming pool
- Patient management
- Loyalty and VIP programs
- Leisure Area
- Non-cash sale
- Prevent counterfeiting
- Construction site
- NFC Applications
OPTIONAL PRODUCE
- Printing logo
- Printing serial number
- Printing chip UID
- Chip encoding
CHIP AVALIBLE
Application
MIFARE Classic® 1K is multifunctional, with cheap price, widely and popular used for fare collection, access control, loyalty system, Identification and NFC field.
MIFARE Classic® 1K can be made of all kinds of custom RFID product:
Except smart card, It could be a wristband, a key fob, a tag or other custom RFID product - with MIFARE® inside access is secure.
Other NXP MIFARE® chips available:
NXP MIFARE Ultralight®, MIFARE Classic® Mini, MIFARE Classic® 1K, MIFARE Classic® 4K
NXP MIFARE® DESFire® EV1 2K, MIFARE® DESFire® EV1 4K, MIFARE® DESFire® EV1 8K
NXP MIFARE Plus® 2K, MIFARE Plus® 4K
NXP ICode2, ICODE SLI-S
Printing
HUAYUAN understands Printing is key issue to meet client's satisfactions. Therefore HUAYUAN prints cards strictly according to client's layout with Heidelberg printing machine. Keeping the consistency between printing effect and approved layout is always the priority to HUAYUAN.
QC:
Every single card will be carefully checked by machine or manual work before delivery.
Company Information
HAUYUAN had also established good and strategic partnership with many international leaders in Smart Card and RFID industry, with 20 years rich experience.To make sure our quality for clients, Our products must pass certification.
Our Business Scales: RFID / NFC Card, Tag, wristband, keyfob, Reader, etc.
Packaging & Shipping
Longterm cooperation with our freight agent and our own account of express can guarantee your delivery time. Never delayed.
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
