| Prod Model: |
48w series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
| Color: |
Black or White |
| Package: |
White Box or PE Bag |
| Output Type: |
Single |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Warranty: |
2 Years |
| Certification: |
CSA |
Product Description

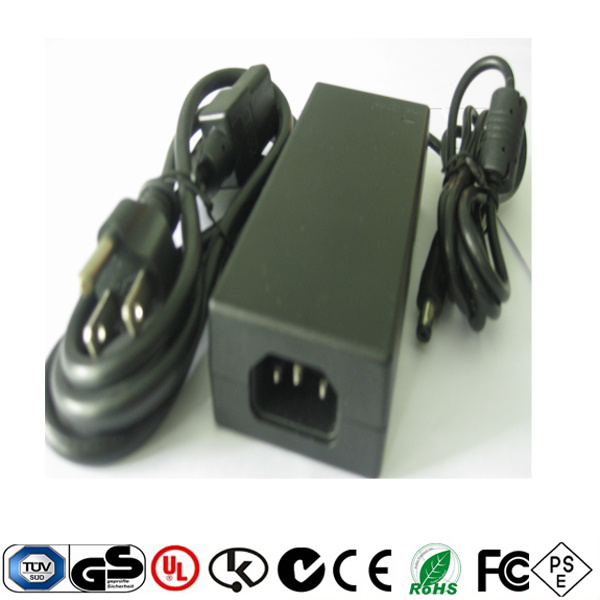

12V 4A switching power supply
Input: 100-240V 50/60HZ
Output: 12-14V, 14-24V, Max60W; 12V 5A
Safety: UL, CE, UK, SAA, PSE, EK, CCC, EN60950-1, EN60065
ROHS
Energy star efficiency level V
PWM circuit
AC inlet: C6, C8, C14
Efficiency: Energy star V
Line regulation: 5%
Short-circuit/over-voltage/over-current protection
Operating temperature: 0-40 C°
Storage temperature: -20-40 C°
Hi-pot test: Primary to secondary: 3000VAC 10MA 1 Minute or 4242VDC 10MA 1 Minute
MTBF: 50000HRS
Storage humidity: 5 to 95% RH
Burn-in test: 80 to 100% load, 40 C° ± 5 for 4 hours
Package: White box or plastic bag, outer carton
ROHS
|
Connection |
Desktop |
|
Port |
HK or Shenzhen |
YL group with headquarters located in HK, sales office in Shenzhen and production factories of YL Electronics (Dongguan) Co., Ltd. And Yinhao Electronics (Shenzhen) Co., Ltd. Our factories were founded in 1989, currently with 1000 workers. Our products focus on AC AC/DC linear adapters, switching adapters, power supplies etc. We have solid experience to offer good quality products to customers.
Research & Development
Our product includes AC/AC adapters, AC/DC linear and switching power suppliers, chargers and earphones etc. Our products range from 0-90W series of plug in type and table type. We design and develop various power supplies. Our specialist team with years of experience ensures that you can get the best solution for your business needs. They will meet you to discuss your requirements in details, before recommending a solution based on our wide range of internationally approved products. Initial samples are usually available within one week.
Classic Production and Process Control
Our production factory is ISO9001: 14001 certified, and each of our products is 100% tested by following electrical, hi-pot, vibration, EMI, salt-spray, bending, plug-in and unplug, high and low temperature, on/off, surge, and combustion and drop tests. Average outgoing quality status is around 300PPM. Mass production' S lead time is 4-5 weeks.
Green Global Energy Solution Provider
All of our products comply with energy star requests of related countries, such as CEC level V, MEPS, ERP, NRCAN etc. And RoHS and REACH compliant.
We have abundant experience in ODM and OEM operation. We will have your own design become true. Our mission is always to give excellent services to put our customers first, and do right things while do things right.
YL has a set of intact quality management systems. In order to strengthen management further, improve the craft, and guarantee product quality, we constantly introduce the most advanced electron programs-controlled check-up platforms, high-accuracy production and strict quality system.
YL Electronics has been working well for the past years. In the future, we will keep focusing on the research and quality to appreciate support from customers.
