| Prod Model: |
OPT-012-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cell: |
32650 3.2V 5ah |
| Casing Material Of Single Cell: |
Nickel Plated Steel |
| Voltage: |
12V |
| Capacity: |
200ah |
| Color: |
Blue, Black or Gray |
| Long Life Cycle (100%Dod): |
More Than 2000times at 1c |
| Shipping: |
Customized |
| Payment Term: |
T/T in Advance |
| Material: |
Lithium Iron Phosphote |
Product Description

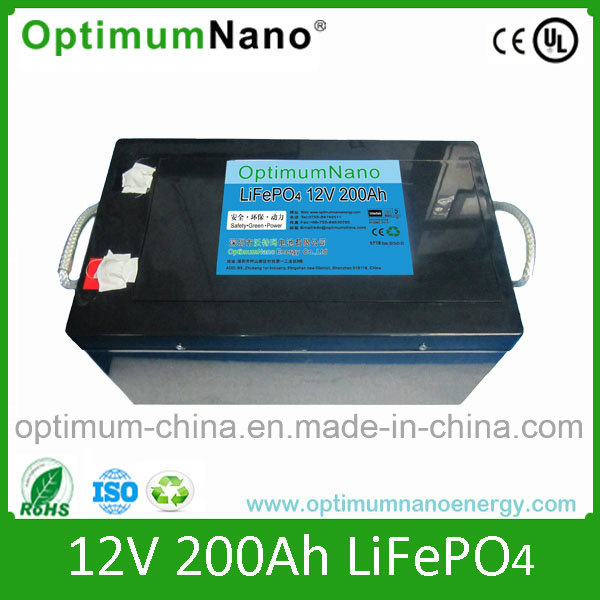

12V 200ah High Power LiFePo4 Battery pack for Solar system
Specification of 12v 200ah lthium battery
lithium ion battery 12V 100Ah |
| Model | lithium ion battery 12V 100Ah |
| Nominal Capacity (Ah) | 200Ah |
| Nominal Voltage (V) | 12V |
| Standard Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 100A |
| Pulse Discharge Current (A) | 200A |
| Dimension (mm) | 329(L) x 172(W) x 218(H) |
| Weight (kg) | 16kg |
| Charge Temperature Range(°C) | 0~45°C; 32oF~113oF |
| Discharge Temperature Range(°C) | -20~60°C; -4oF~149oF |
| Storage Temperature Range(°C) | -20~45°C; -4oF~113oF
|
Features
1. Energy density is high. The volume and weight of lithium battery is 1/3 to 1/4 of the traditional lead acid battery with the same capacity.
2. Energy conversion rate is 15% higher than that of a traditional lead acid battery, the advantage of energy saving is obvious.
3. Self-discharge rate < 2% per month.
4. Broad temperature adaptability. Products perform well at a temperature of -20°C to 60°C, without air conditioning system.
5. Cycle durability for a single cell is 2000 cycles, which is 3 to 4 times more than the cycle durability of a traditional lead acid battery.
why choose OptimumNANO Energy Battery
· Every OptimumNANO Battery® has a patented "internal" battery protection system
· More than 12 years' esperience in Lithium battery
· Providing batteries according to customers' requirement
· Excellent customer service and 24h online technical support
· High Quality, Safe Lithium Ion Batteries with the industries best warranty - 2 year.
· Worldwide shipping, export from multiple distribution centers around the world.
Certitication:
CE, UL, ROHS, SGS, TS/16949 and ISO9001-2008
Shipping
1. We will ship the products within 15 working days after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL/TNT/EMS and so on. Other shipping terms can also be arranged according to specific requirements.
