| Prod Model: |
OPT-012-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue, Black or Gray |
| Long Life Cycle (100%Dod): |
More Than 2000times at 1c |
| Shipping: |
Customized |
| Certification: |
CE, UL, RoHS, SGS, Ts/16949 and ISO9001-2008 |
| Payment Term: |
T/T in Advance |
| Warranty: |
2 Years |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Lithium Iron Phosphote |
Product Description

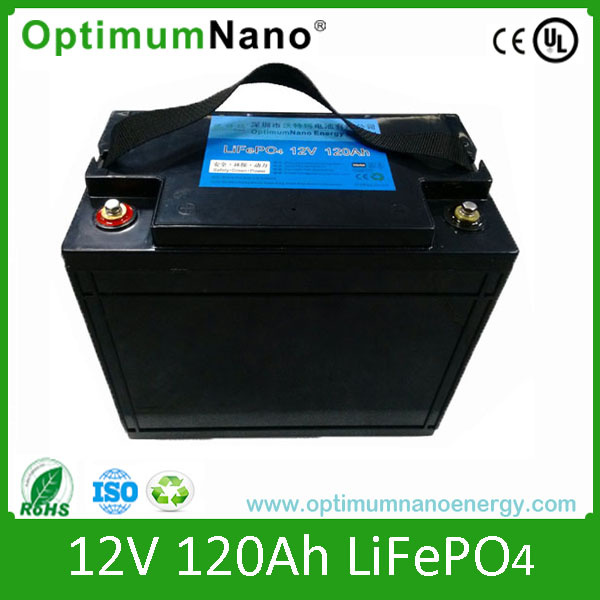

12v 120ah deep cycle li-ion battery for renewable energy solution
Quick details
NO. |
Item |
General Parameter |
Remark |
1 |
Model |
IFR 32650-5Ah |
Single |
2 |
Casing material for single cell |
Nickel plated steel |
|
3 |
Standard capacity(0.2C5A) |
120Ah |
|
5 |
Rated voltage |
12.8V |
(Work voltage:3.20V) |
6 |
Max.Charge voltage |
14.6V |
Single Ave. charge Voltage |
7 |
Cut-off voltage |
10V |
Single Ave. Discharge Voltage |
8 |
Standard charge current |
40A |
0.33C |
9 |
charging Time |
About 3h |
|
10 |
Max Continuous discharge current |
60A |
0.5C |
11 |
Max discharge curren |
120A |
1C |
12 |
Battery dimension |
341±1*173±1*283±1mm |
|
13 |
Total weight(Approx.) |
Abou17.6kg |
|
14 |
Impedance(Max, at 1000Hz.) |
≤ 28mΩ |
|
15 |
Charge method (CC/CV) |
Standard |
0ºC~45ºC |
|
discharge |
-20ºC~45ºC |
|
storage |
0ºC~45ºC |
|
LiFePO4 battery advantages
1)Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-CD or SLA.
2) Non-Toxic, environmentally-friendly product.
3) High safety
LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material
LiFePO4 cells do not incinerate or explode under extreme conditions
4) Good performance in high-current discharge cycles.
We can design different capacity and size batteries to meet your demand.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Using LiFePO4 battery instead of Lead acid battery is inevitable trend.
Why does Optimum company have so many successful cases?
1)Has large experience in making and carrying out professional urgent power solution;
2) urgent power for wild units, no power cart in top three hospitals, wind power complementary in India.
3)Has over 4 years professional technical experience of making lithium iron phosphate battery.
4)Made and carried out power solutions for over hundred EV; ( Including battery combination
Technology, structure design and battery management strategy. )
5)Has long term collaboration with Emerson about energy storage, researched and developed
Many intelligent battery management system, make sure best performance and lifetime of
Battery.
