| Prod Model: |
HSG12864-144 |
| Markets: |
North America,South America,Eastern Europe,Mid East,Western Europe |
| DOT Matrix: |
128*64 |
| Glass Type: |
Stn |
| Module Size: |
65(W)*38.60(H)*4.90(T) mm |
| View Area: |
53.6(W)*28.6(H) mm |
| Active Area: |
48.61(W)*24.93(H) mm |
| Driving IC: |
St7567 |
| Driving Vvoltage: |
DC 2.8V |
| Color: |
Yellow/Green |
| Display Mode: |
Positive, Transmissive |
| Usage: |
Small-sized LCM |
| Type: |
Graphic |
| Response Time: |
30ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Digital LCD Module Type: |
Na |
| Touch Screen Type: |
Na |
Product Description
Dot Matrix LCD 128*64 Specifications:
Module Size: 65(W)*38.60(H)*4.90(T) mm
View Area: 53.6(W)*28.6(H) mm
Display mode: Positive, Transmissive
Driving IC: ST7567
IC bonding: COG
DOT matrix: 128x64
Connector: FPC
Display type: STN
View direction: 6 o'clock
Mechanical Data
NO
ITEM
SPECIFICATION
UNIT
1
Dot Marrix
128(W) x 64(H)
dot
2
Module Size
65(W)*38.60(H)*4.90(T)
mm
3
View Area
53.6(W)*28.6(H)
mm
4
Active Area
48.61(W)*24.93(H)
mm
5
Dot Size
0.35(W) x 0.36(H)
mm
6
Module Thickness
4.90
mm
LCD drawing :

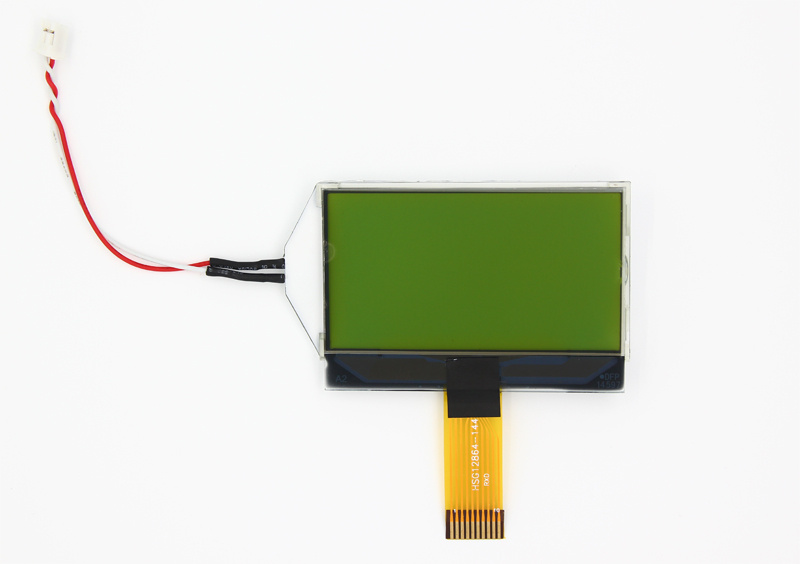

Product Photo:
Factory Tour:
Lummax Electronics Co., Ltd is a high-tech manufacturer specialized in the manufacturing of LCD panel, LCD module in China.
We produce LCD panels of TN, HTN, STN, FSTN type and LCM (including touch panels), among which most are customized.
Lummax Electronics Co., Ltd has total 400 employees, among them 15 R&D staff and 40 QC personnel. Our production plant occupies a total area of 8, 000 square meters. We are equipped with an advanced full-automatic LCD production line and several precision COG, COB and TAB production lines. We are able to meet all demands from our customers in booming seasons and ensure timely deliveries.
Our products have been widely used in the fields of instruments, meters, home appliances, telecommunications, industrial equipments, vehicle electronics and digital display clocks, etc.
We attach great importance to improving product technology and continuously improve product quality. We are also an ISO9001 certified company!
Send your inquiries now for product details and the most competitive price!
