| Prod Model: |
TG12864W-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
128X64 Dots |
| Display Mode: |
Stn, Transmissive, Positive, Y-G |
| Outline Dimension: |
84.8X44.8mm |
| Viewing Area Size: |
61.4 X32.0mm |
| Certificate: |
RoHS, ISO9001:2008 |
| Warranty: |
12 Months |
| Backlight: |
Yellow-Green/Bottom Light |
| Type: |
Graphic |
| Display Technology: |
STN |
| Usage: |
Small-sized LCM |
Product Description

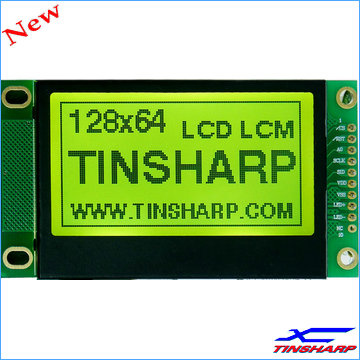

128X64 Cog LCD Display with Rohs certificate (TG12864W-06)
FUNCTIONS & FEATURES
1) Construction COG (Chip-on-Glass)
2) Display Format 128x64 dots
3) Display Type STN, Transflective, Positive, Yellow-Green
4) Controller NT7538 or equivalent controller
5) Interface 4-wire Serial Peripheral Interface
6) Backlight yellow-green/Side light
7) Viewing DirDriving Schemeection 12 O'clock
8) Driving Scheme 1/65 Duty Cycle, 1/9 Bias
9) Power Supply Voltage 9.0 V (VOP.)
10) VLCD Adjustable For Best Contrast 3.3 V (VOP.)
11) Operation temperature -20°C to +70°C
12) Storage temperature -30°C to +80°C
Drawing:
Packaging & Shipping
108pcs each carton, 10kg/ctn,carton size:39 x 29 x 29 cm 0.03cbm
Our Services
Factory direct sales LCD display in variety display color and size
We can also design and manufacture the LCD panel of TN, STN, FSTN, color STN
And some other special types, such as LCD module of COB, COF, TAB and COG.
Customized models are welcome, how to get the customized model?
Step1: Send your original drawing or samples or photos, if you don't have these information, tell us your requirement.
Step2: According to your details, we give you the approximate price send you the draft drawing.
Step3: After you confirm our drawing, and we give exact price.
Step4: Sample will be made after you arrange the tooling charge, samples is ready around 20 days.
Step5: After samples confirmed, mass production is accepted.
