| Prod Model: |
YB12864J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Dimension: |
75.0*54.7*12.5mm |
| Active Area: |
56.27*38.35mm |
| IC Or Equivalent: |
Ks0107/S6b0107/Sbn6400 or Eqv |
| Display Type: |
Stn/FSTN |
| Appearance: |
White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ): |
3.3V/5V |
| If Accept Customized: |
Yes |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
| Response Time: |
0.2 |
| Viewing Angle: |
6/12 |
Product Description

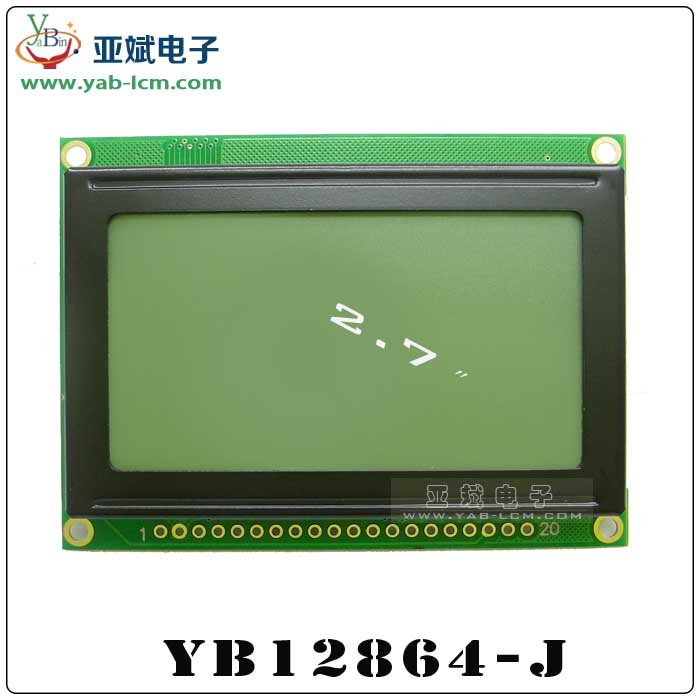

128*64 LCM Module graphic lcd display
>> product description
Gross Weight (kg)
Manufacturer
YaBin
Series Number
YB12864J
Display Format
128*64 Dots
Outline Dimension
75.0*54.7*12.5mm
Visual Area
60.0*32.6mm
Active Area
56.27*38.35mm
Diagonal Size
2.69 inch
Dot (Pixel) Size
0.4*0.4mm
Dot (Pixel) Pitch
0.43*0.43mm
IC Package
COB
IC or Equivalent
KS0107/S6B0107/SBN6400 or EQV
Interface
6800 8-bitParallel
Display Type
STN/FSTN
Sunlight Readable
No
Touch Panel Optional
No
Contrast Ratio(Typ)
No
Viewing Direction
6:00
LED Backlight Color
Blue /Yellow Green /Gray
Appearance
White on Blue/Black on Yellow Green/White on Gray
Power Supply(Typ)
3.3V/5V
Backlight Current (Typ)
75mA
Operating Temp
-20ºC~70ºC
Storage Temperature
-30ºC~80ºC
If accept customized
Yes
RoHS Compliance
Yes
>>Competitive Advantages
1).High Quality. RoHS ,SGS ISO9001 compliant. Every products are strictly checked by our quanlity control department before shipment.
2). Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3).Best Service. We provide best pre-sales and after-sales service to you
4).Custom Design,can specially meet your needs
5).Samples available on request
6).Small MOQ orders can be negotiated
>>FQA
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN ,TFT ,OLED Color LCD display module and monochrome liquid crystal display module ,LCD modules more than 10 years in Shenzhen! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q: what kind of check can provide?
A: shenzhen yabin electronics have multiple test by different departments,from material procurement to finished product QA, QC, salesrep resentatives,ensure all franchise player is in good condition before shipment. We also accept the inspection you designated third party.
5.Q: Can you design the lcd in accordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q: How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
6-1)Product information-Quantity,part number
6-2)Delivery time required.
6-3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
6-4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
