| Prod Model: |
TM0902M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
128X64 Dots Cog FSTN |
| LCD Display Mode: |
FSTN, Negative, Transmissive |
| Viewing Angle: |
TN＋FILM |
| Driving Method: |
1/64 Duty, 1/9 Bias |
| Backlight: |
White LED Backlight |
| Outline(mm): |
89.8 X 54.6 X 7.0max |
| Pin Assignment: |
30 Pins |
| Usage: |
TV-LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Response Time: |
2ms |
| Display Technology: |
FSTN/CSTN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description
Packaging & Delivery
Packaging Details: | Packaging Details: Strictly tested and well-packed with Anti-static bag + Foam box + Export Carton |
|---|
| Delivery Detail: | 4-5 weeks |
|---|

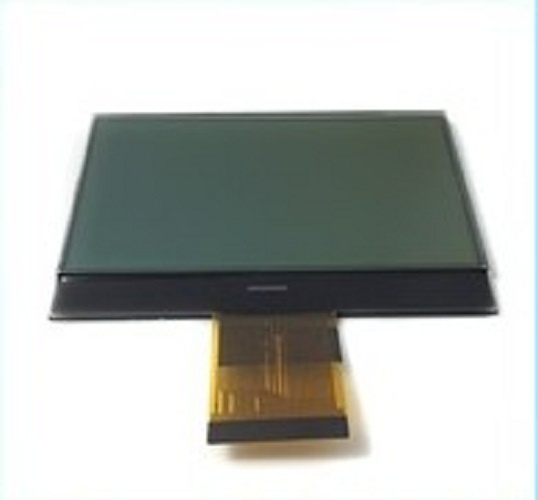

12864 Graphic LCD Display Module 128x64 Dots Blue Color Backlight
Item | Value |
| Structure | 128x64 Dots COG FSTN |
| LCD Display Mode | FSTN, Negative, transmissive |
| Viewing Angle | 6H |
| Driving Method | 1/64 duty, 1/9 bias |
| Backlight | White LED backlight |
| Control/Driver IC | NT7534 |
| Outline(mm) | 89.8 x 54.6 x 7.0MAX |
| Viewing Area(mm) | 70.7 x 38.8 |
| Power supply | 3.0V |
| Pin assignment | 30 Pins |
| Interface | Parallel + BL |
Suzhou Tomy Optronics Co., Ltd (TOMY) established in 2010, specializes in the design, development, production, sales and services of state-of-the-art liquid crystal display modules and related electronic products.
TOMY mainly produces thousandds of types of standard or customized TN, STN, color STN and TFT-LCM products. Application of our products include: Instruments, office equipments, messages, telecommunications, home appliances as well as automotives.
Our TOMY Optronics Is a professional LCD manufacturer with 19 years' Experience. Our production equipment and technology brought in from Japan. TOMY is equipped with a young and highly qualified management and technology team dominated by postgraduate students. This guarantees that TOMY will take the lead in its industry.
TOMY has passed ISO 9001, ISO 14001, TS 16949 certifications as well as RoHS and REACH certification. TOMY is confident and determined to overcome endless challenges to become the best small-to medium sized display customization company.
