| Prod Model: |
WS-RD06 |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia |
Product Description
125kHZ RFID Card Reader USB 125kHZ CPU card for Identification system
Product Description:

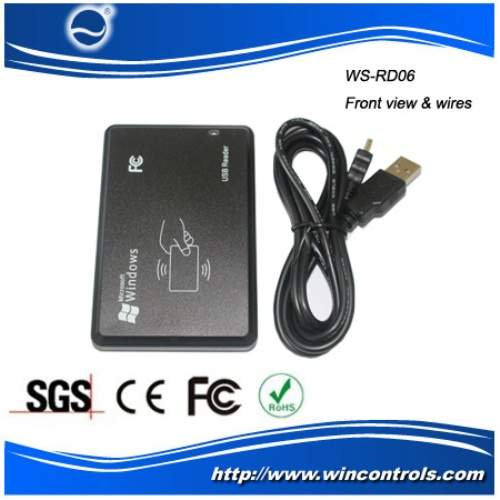

WS-RD06 is a high performance, good price 125 KHz desktop USB RFID card reader, reading distance up to 10cm, widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system, Personal identification, Access controller, Production Access control, etc
Product model explanation
Model |
output Byte |
output format |
interface |
surface color |
support |
WS-RD06A |
4 |
8 digit Hex |
USB |
Black |
125KHz ID card |
WS-RD06B |
4 |
10 digit Dec |
USB |
Black |
125KHz ID card |
WS-RD06C |
5 |
10 digit Hex |
USB |
Black |
125KHz ID card |
WS-RD06D |
3 |
8 digit Dec |
USB |
Black |
125KHz ID card |
WS-RD06E |
4 |
18 digit Dec |
USB |
Black |
125KHz ID card |
Output format description:
WS-RD06A: output ID card unique code, format is Hex
WS-RD06B: output ID card unique code, format is Dec
WS-RD06C: output ID card version code,+ customer code +ID code, format is Hex
WS-RD06D: output ID card last three bytes, format is WG26
WS-RD06E: output ID card surface 18 digit dec digital
All above format we can provide free SDK for set by youself.
Capability specifications:
Name |
125KHz USD RFID Reader |
Dimension |
108*78 *28(mm) |
Reader colour |
Black |
Support |
TK4100.SMC4001 and compatible card |
RF Frequency |
125KHz |
Reader time |
<0.5s |
Baud Rate |
9600 |
Power Supply |
+5V DC |
Consumed Current |
70mA |
Operating Distance |
0~10cm |
Interface |
USB |
Status Indication |
1pc LED |
Service Temperature |
-10~ +70 degree |
Store Temperature |
-20 ~ +80degree |
Instructions for use:
1. Connect WS-RD06 to computer through USB interface directly
2. Open Notepad or a excel, word document
3. The mouse in Notepad or WORD document clicking
4. Put card on the top of reader.
5. Notepad or word documents will output of the ID card number
6. When Reading one card, LED lights with red into the green.
Packaging & Shipping:
1.One piece with one package
2.We will delivery goods by Express,such as DHL,FedEx,UPS,TNT etc
Our Services:
1.When you buy our reader,we can provide free sample card or tag to customer for testing
2.We can provide OEM service,such as customize different output format ot silk-screen logo on the device. We can provide ODM order to our agent or old customer.
3.About 125KHz reader, we have other model according different shape and size.
4. We provide one year guarantee.
