| Prod Model: |
TM0824M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
COB |
| Module Size: |
84(W)*44(H)*12.8(T)mm |
| View Are: |
60(W)*18(H)mm |
| Color: |
Blue with White Dots |
| Display Mode: |
Negative/Transmissive |
| Driving Voltage: |
DC 5.0 V |
| Driver IC: |
St7920 |
| Driving Method: |
1/32 Duty,1/5 Bias |
| View Direction: |
6 O'clock |
| Working Temperature: |
-20 to 70 Degree C |
| Usage: |
TV-LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Response Time: |
2ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
COB |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
Product Description

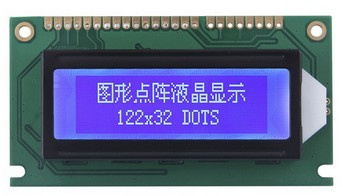

Blue Color STN COB Graphic LCD Module 122*132 dots:
1. Module Size: 84(W)*44(H)*12.8(T)mm
2. View Area: 60(W)*18(H)mm
3. Dot Size: 0.36(W) x 0.41(H)mm
4. LCD type: STN/negative/transmissive
5. Backlight: LED
6. Color of backlight: White
7. Driver IC:ST7920
8. Temperature range: Extended(-20c-+70c)
9. Power supply: DC 5.0V
10. Viewing angle: 6h
Mechanical Datas
NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 122(W) x 32 (H) | dot |
| 2 | Module Size | 84(W)*44(H)*12.8(T) | mm |
| 3 | View Area | 60(W)*18(H) | mm |
| 4 | Dot Pitch | 0.4(W)*0.45(H) | mm |
| 5 | Dot Size | 0.36(W) x 0.41(H) | mm |
| 6 | Module Thickness | 12.80 | mm
|
