| Prod Model: |
PAB120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
110V~120V or 24V Direct-Current Supply |
| Rated Power: |
120W |
| Working Temperature: |
-10 to +40 |
| Size(W*H*D): |
420mm X 109mm X 357mm |
| Weight: |
10.9kg |
| Speaker System: |
Mono |
| Application: |
Commercial |
| Operation Mode: |
Button Control |
| Speaker Material: |
Metal |
| THD: |
<0.03% |
| Noise: |
<95dB |
| Certification: |
UL |
Product Description
Product description

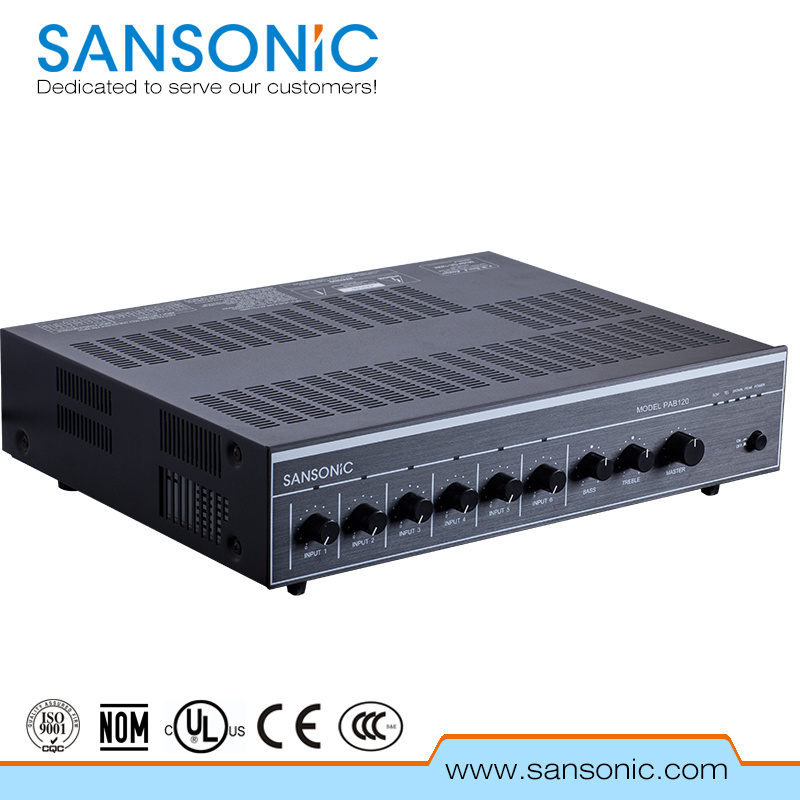

PAB120 is the high performance audio amplifier which are designed for commercial and industrial public address applications. This type is the standard mount design, rated power is 120W to provide a wide selection for different sound system. Both balanced and unbalanced line inputs are selectable, 25V, 70V and 4-16ohm are selectable for different speaker installation matching. Complete protection includes short circuit, overload and overheat automatic protection.
Features
1. Standard mount design, humanistic design, exquisite technique, show the top grade quality
2. MIC1-6 line XLR microphone balanced or linear balanced input, AUX1-6 line RCA linear input
3. MOH, SOR, POW-in input;
4. MOH, Rec(Tape)Out, Booster out and pre output
5. Constant pressure output 25V/70V and rated resistance 4-16Ω ;
6. Signal lamp, peak lamp display
7. On/off impact protection speaker
Application and management
Applied in airport, station, coffee shop, market, square, school, park, district and other places.
Port allocation:
1. MIC 1~6 Canon port balanced or linear balanced input, input sensibility: Linear 100mV microphone 1mV;
2. Aux 1~6 line RCA linear input, input sensibility: 100mV or 316mV;
3. MOH input, input sensibility: 100mV;
4. SOR input, input sensibility: 100mV;
5. Pow-in input, input sensibility: 1V;
6.4~16Ω , 25V, 70.7V output terminal multi-impedance output
7. MOH output 1V 600Ω ;
8. Rec (Tape) Out output 1V 600Ω ;
9. Booster Out output 1V 600Ω ;
10. Pre output 1V 600Ω ;
| Specification |
| Model | PAB120 |
| Power requirement | 110-125V AC or 220V-230V AC,50/60Hz |
| Rated power | 120W |
| Distortion | Less than 0.8% at 1 kHz |
| Frequency Response | 50~20,000Hz(±3dB) |
| Tone control: | Bass: ±10dB at 100Hz/Treble: ±10dB at 10KHz |
| Outputs | SPEAKER OUTPUTS: | 4 ~ 16ohm, & 25 V, & 70.7 V (Any Combination Not To Exceed Rated Power) |
| MOH: | Transformer-Isolated 600 ohm, 0 ~ 1 V (Adjustable) |
| REC (TAPE) OUT | 600 ohn, 1 V, Pre Tone Controls |
| BOOSTER OUT: | 600 ohm, 1 V, Pre Tone Controls |
| PRE-OUT: | 600 ohm, 1 V, Pre Tone Controls |
| TELEPHONE VOX MUTE: | -40dB, VOX Sensitivity Adjustable |
| MIC 1 VOX: | -37dB (Via Switch # 7 "Mute Send") |
| Inputs | Balanced | MIC XLR-F (1 - 6): 150 ohm, 1 mV, or Line XLR-F (1 - 6):
10k ohm, 100 mV (MIC TRIM Adjustable) |
| Balanced: | MIC Phoenix (1 - 6): 150 ohm, 1 mV, or Line Phoenix (1 - 6):
10k hm, 100 mV (MIC TRIM Adjustable) |
| Balanced: | Telephone/Page: Shielded Transformer, 600 ohm, 100mV |
| Unbalanced: | Aux (1 - 6): 2-Channel Audio Electronically Summed to Mono Output,
47k ohm, 100 mV, or DVD/CD (1-6):2-Channel Audio Electronically 47k ohm, 360 mV |
| Unbalanced: | MOH: 47k ohm, 100 mV |
| Unbalanced: | SOR: 47k ohm, 100 mV |
| Unbalanced: | Power-In: 47k ohm, 1 V |
| Illusion power: | (Switchable on Modules 1 thru 6): +24 VDC |
| VOX(Voice)mute circuit: | VOX Sensitivity Adjustable |
| SOR VOX: -40dB (Via Circuit Board Jumper # 700) |
| Remote Mute Terminal (Use w/ MIC 1), -37dB. |
| HPF(Switchable): | 400Hz, -6dB/Octave (4 ~ 16 ohm, 25 V, & 70.7 V Outputs Only) |
| Working temperature: | -10 to +40 |
| Color | black |
| Dimensions(W*H*D): | 420X190X357MM |
| Weight | 10.9kg |
