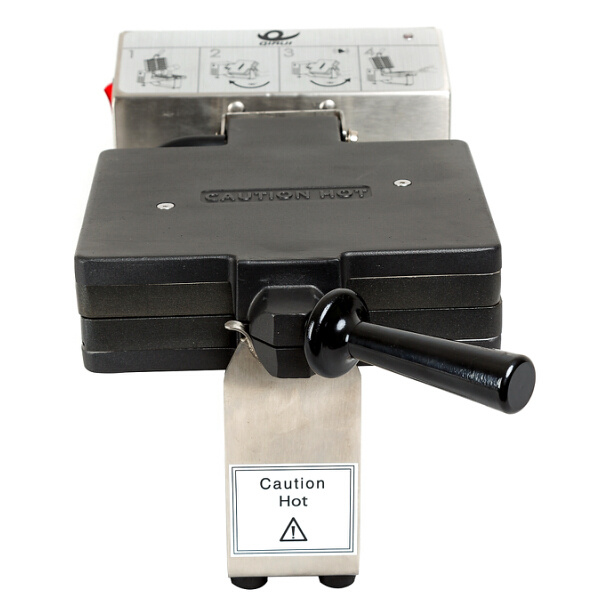

120VAC Appliance Baking Machine Square Plate Belgium Waffle Baker
| Price: |
US $ 350.00/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
HWB-4000S-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
120VAC |
| Power: |
1500W |
| Plate: |
Square or Custom |
| Certification: |
ETL, CE |
| Cavity: |
2 |
| OEM: |
Available |
| Application: |
Waffle |
Product Description
1. Overview WB2000 series waffle maker (waffle baker) is for commercial use, it has 110VAC & 240VAC two series, 120vac is for America and same voltage market, 240vac is for China, European and same voltage market. The waffle baker is based on stainless steel shell, U bracket and aluminum heating pedestal and grids. space-saving design with the smallest footprint in the industry, computer controlled temperature and bake time, TeflonTM Coated baking grids.2. Structure diagram
3. Operation1 Preheat a. Plug in the power plug then turn on the power switch.Bell: ring 3 timesIndicator: flash 3 times b. After 12-15 minutesBell: Discontinuous ring first, then ring continuously, Then stopped at lastIndicator: light on continuouslyIt means preheat finish and ready for baking 2 Open the Top grids then pour one cup mixes into the centre of the grids, Close the top grids and turning it over 1800Bell: ring 1 timesIndicator: light off It means beginning to bake the waffle3 After 2.5 minutesBell: Discontinuous ring first, then ring continuously, Then stopped at lastIndicator: light flash, light on, light flash It means baking finish 4 Turn back the grids and open the grids then remove the waffleBell: ring 1 timeIndicator: light onClose the top grid keep on standby if not to cook againPlease turn off power if keep on standby for a long time4. Packaging
| Voltage | Power | Grid OD | Mode of operation | 5Period |
| 120VAC | 1500w | 188mm | Continuous | 2.5-3min |
| ETL | |
| 240VAC | Nw: | GW | Product size | Carton size |
| CE | 9.3Kg | 10.5Kg | 480X232X234mm | 515x350x320mm |
